14

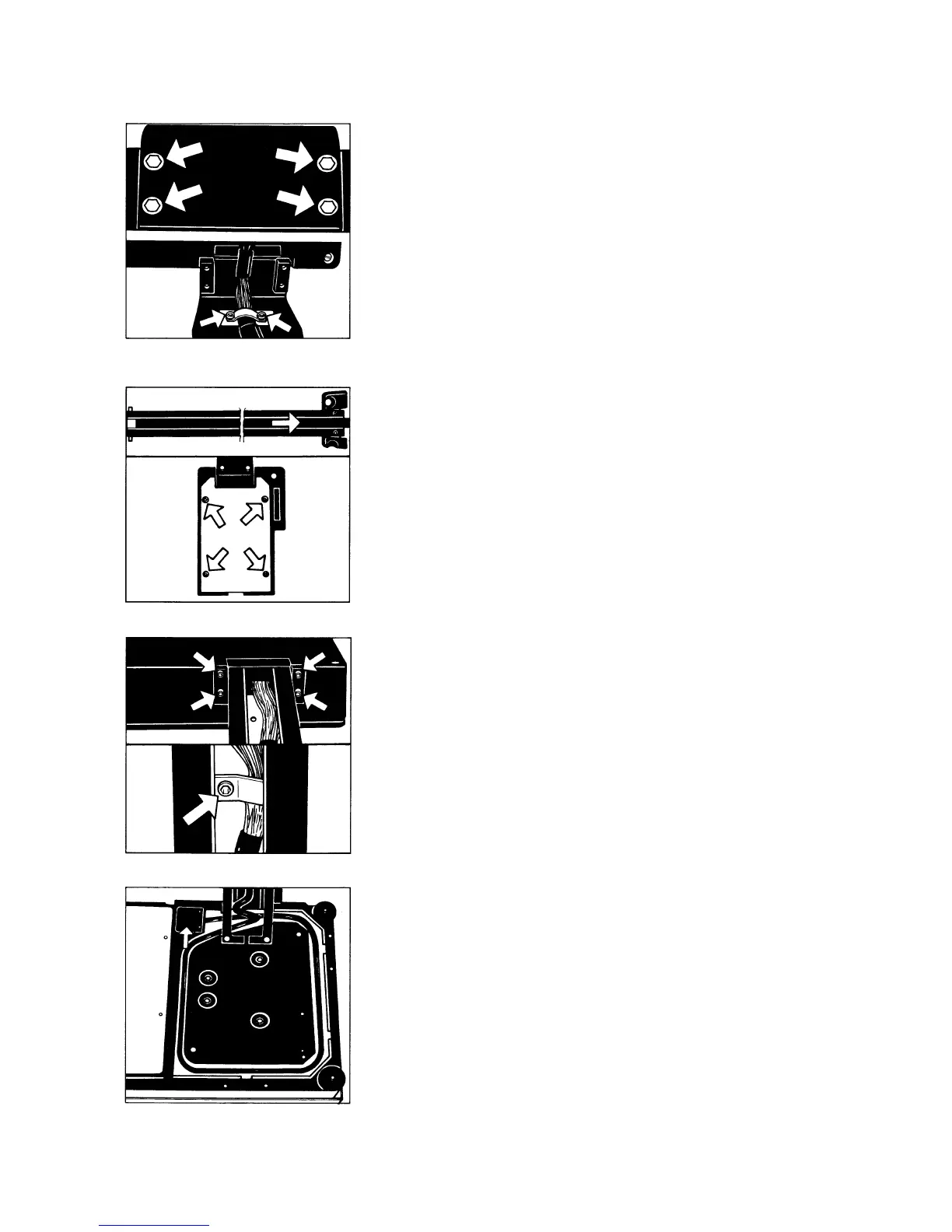

Remove the four screws from the display unit (see arrows) using the
Allen wrench to untighten them.
Unscrew the two screws from the cable clamp.
Remove the clamp and then the display holder.
Remove the cable from the raceway in the bottom of
the scale.
Slide out the narrow cover plate of the support arm in the direction of
the arrow.
Use the Allen wrench to remove the four screws from the rectangular
support arm cover plate and remove the cover plate from the support
arm base.
Mount the display unit on the support arm using the two retainers and
the four screws supplied.
Route the cable through the cable conduit inside the support arm.
Mount the angular retainer using the screw and the spring washer so
that the bundle of shielded wires contacts the inside of the support
arm.
Insert the cable down through the support arm into opening of the
mounting frame. Afterwards, slide the narrow cover plate into the sup-
port arm.
Insert the cable in the raceway as shown in the diagram.
Make sure that the rubber seal (see arrow) is not damaged.
