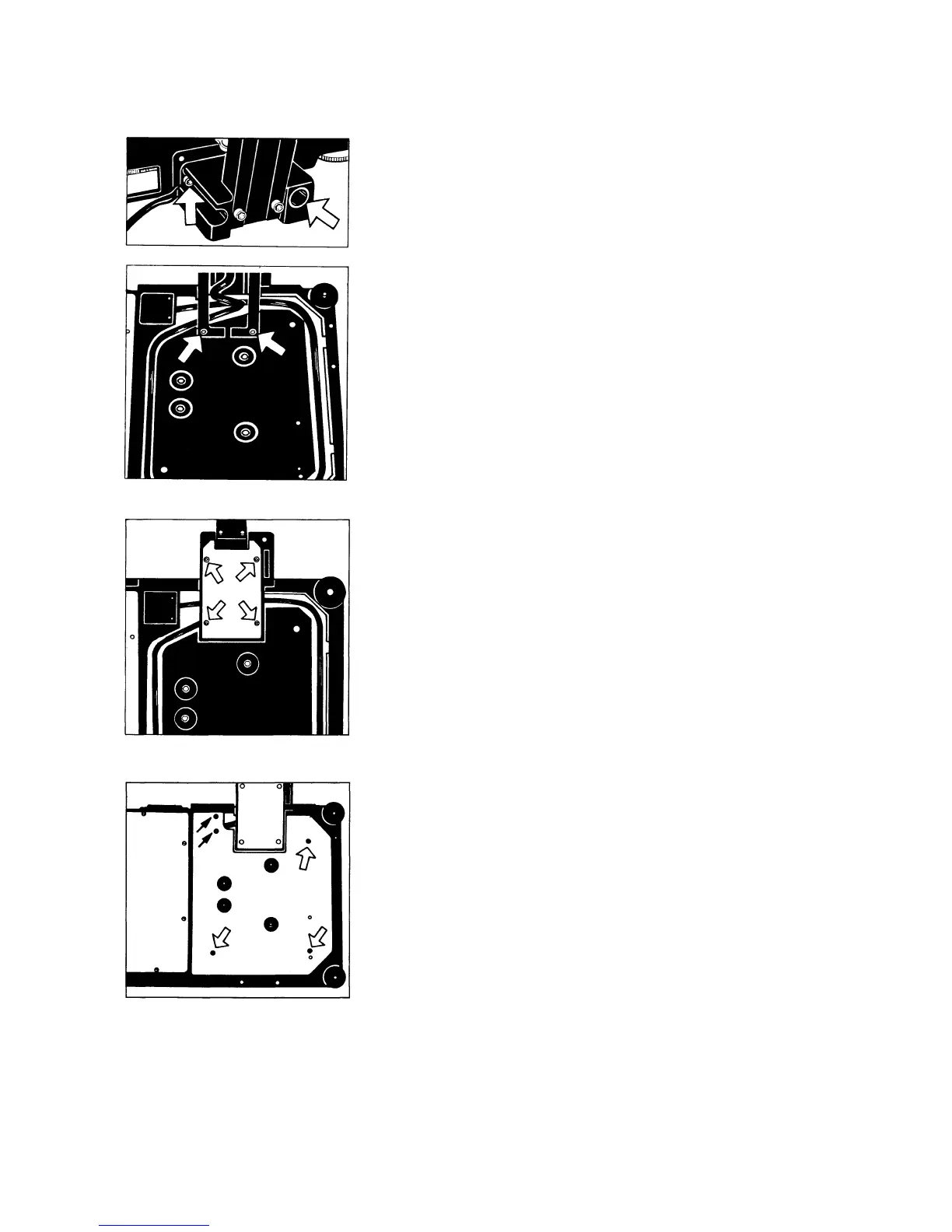

Fasten the support arm to the rear panel of the scale base using the
two M5x16 screws supplied and the star lock washers.
Attach the mounting frame of the support arm to the bottom of the
scale using the two M4x8 screws supplied.
Refasten the rectangular cover plate to the support arm using the four
screws.
Reposition the base plate and fasten it in place by tightening the three
M3x8 screws (see the large arrows ) and the two M3x10 screws (see
the small arrows).
