Chapter 1 General Information Features
EM13x Series SMART MULTIFUNCTION METER 11
Chapter 1 General Information

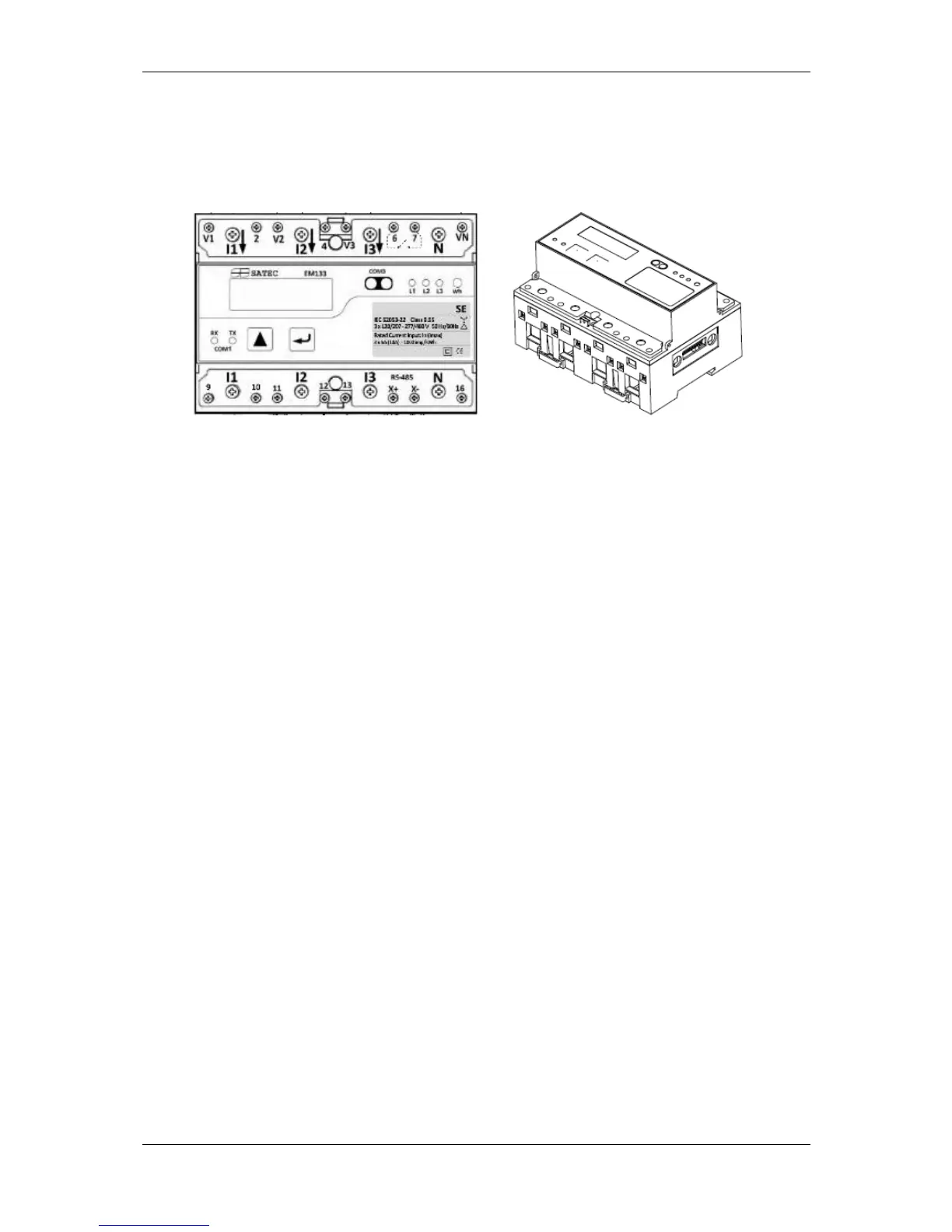

The EM13X Series is a compact, multi-function, three-phase AC
Powermeter specially designed to meet the requirements of users
ranging from electrical panel builders to substation operators.

The EM13X Series measuring and power supply inputs comply with
Measuring Category III
The EM13X Series offers standard voltage, current, power and
frequency measurements, amp-demand, energy measurements and
data logging, harmonic analysis and control capabilities.
The EM13X Series consists of three different models series:
 EM132/EM133 with AC/DC Auxiliary Power Supply (40-318V AC/DC)
‒ EM132/EM133-5, internal CT, transformer operated
configuration with current inputs: In = 5A, Imax = 10A
‒ EM132/EM133-1, internal CT, transformer operated
configuration with current inputs: In = 1A, Imax = 2A
‒ EM132/EM133-RS5, external CT, transformer operated
configuration with current inputs (secondary current): In =
2.mA, Imax = 5mA
‒ EM132/EM133-50, internal CT, direct connection
configuration with current inputs: In = 50A, Imax = 63A
‒ EM132/EM133-HACS, external CT, direct connection
configuration with current inputs (secondary current): In =
20mA, Imax = 40mA
 EM133-SE – self energized device with 3 Phase Power Supply,
operating from any combination of the measured phases
‒ EM133-SE-5, internal CT, transformer operated configuration
with current inputs: In = 5A, Imax = 10A
‒ EM133-SE-1, internal CT, transformer operated configuration
with current inputs: In = 1A, Imax = 2A
‒ EM133-SE-RS5, external CT, transformer operated
configuration with current inputs (secondary current): In =
2.mA, Imax = 5mA
‒ EM133-SE-50, internal CT, direct connection configuration
with current inputs: In = 50A, Imax = 63A
