Chapter 2 Installation Communications Connections
50 EM13x Series SMART MULTIFUNCTION METER
RS-485 Connection

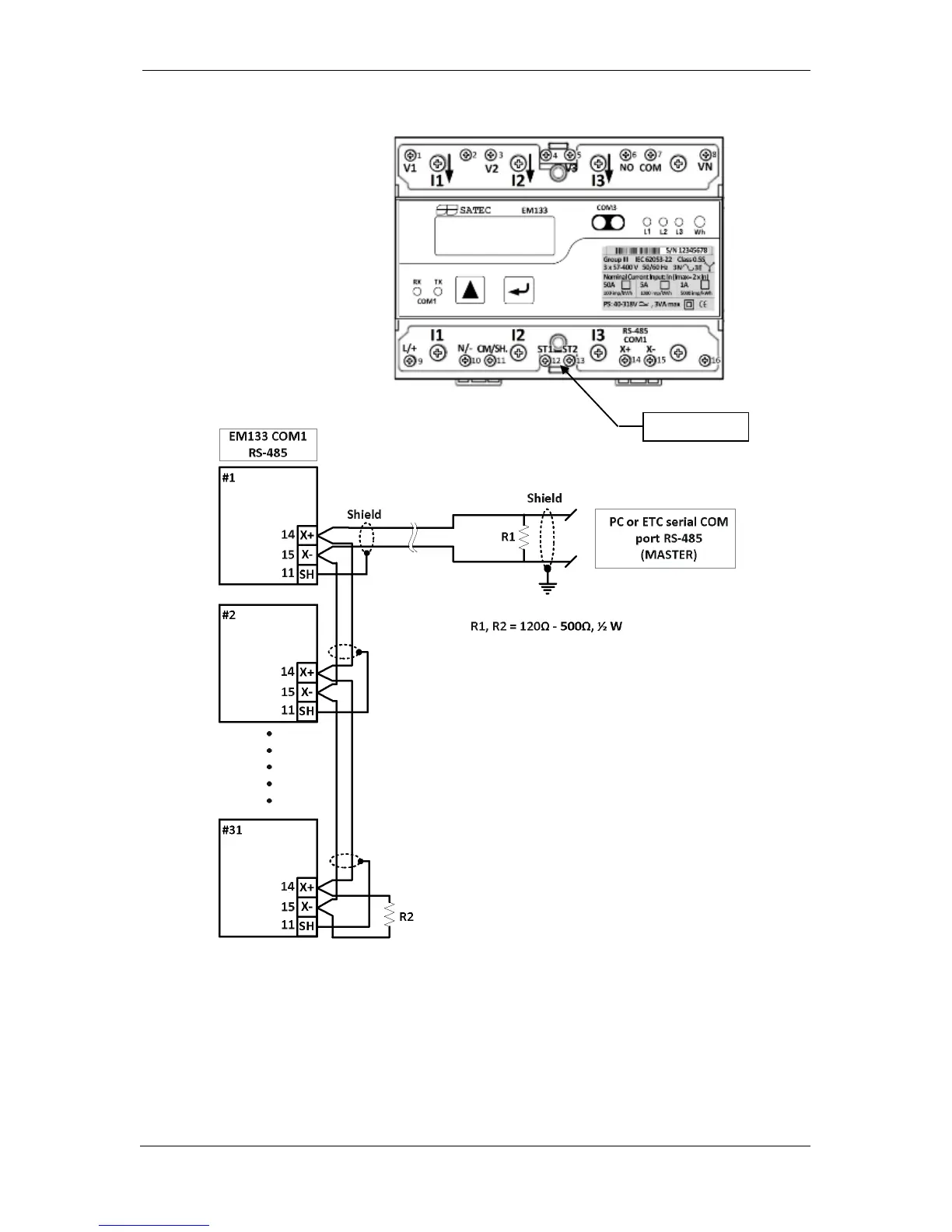

Figure 2-19 COM1 RS-485 2-Wire Connection
Communication cable Specification: Shielded, #22AWG.
Note: pay attention to GND connection (SH->GND).
RS-485 COM1
