Chapter 5 Configuring the EM13X
Series
This chapter describes how to configure the EM13X Series for your
particular environment and application from the front display and via
PAS. To access your meter configuration options via PAS, you should
create a site database for your device as shown in Chapter 4.
5.1 Configuring Communications
Setting Up Serial Communication Ports
Using the Front Display
Select COM1 through COM3 from the main menu. See Viewing and
Changing Setup Options in Chapter 3 for information on navigating in
menus.
See the table below for available communication options.
Using PAS
Select Communications Setup from the Meter Setup menu, and then
click on the Serial Ports Setup tab. In the Port box, select the desired
device port.

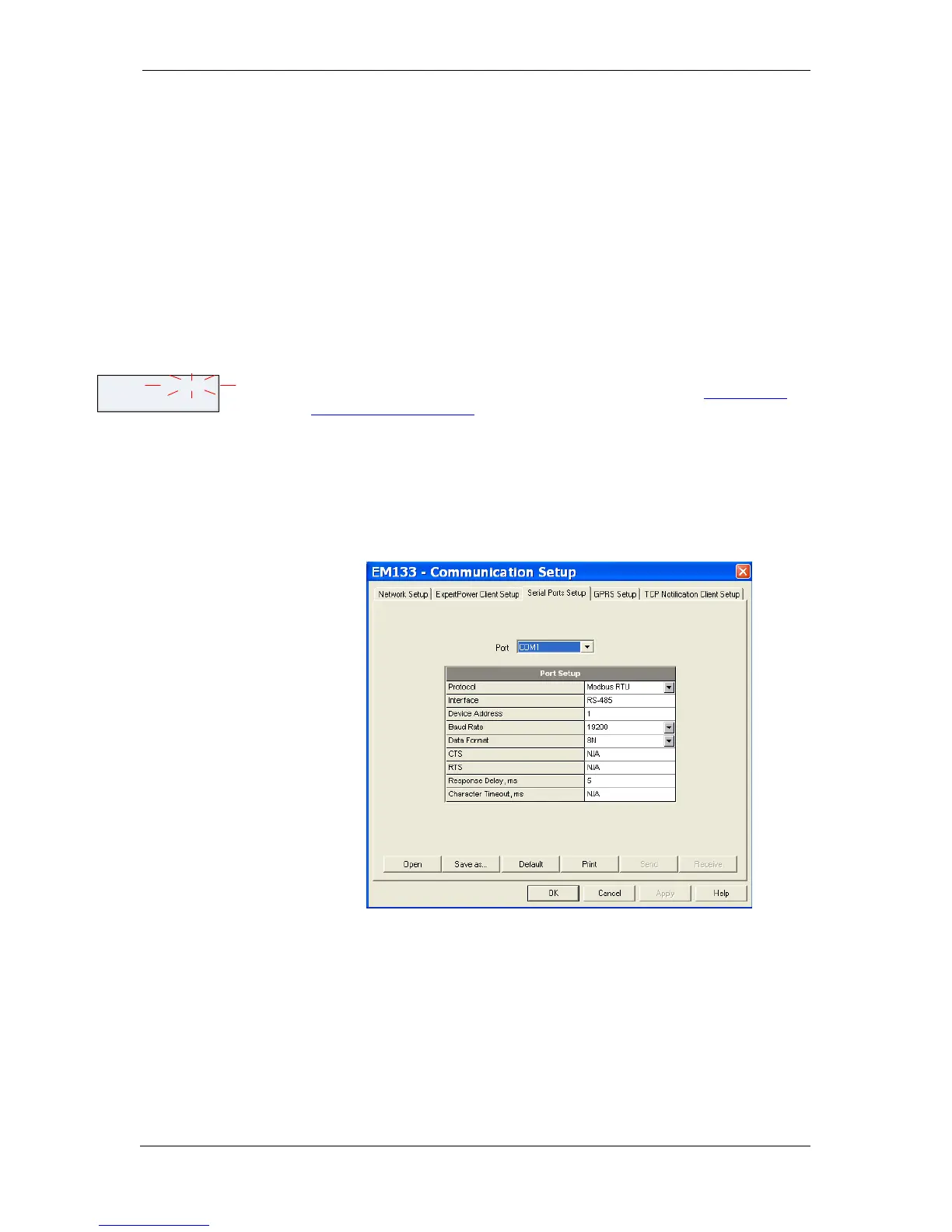

Figure 5-1: Communication Setup Dialog Box – Serial Ports Setup Tab
