State indication – instead of the output state, the state of selected zone can be displayed.
This can be useful if the output is activated just for a short while to turn on / off a device
and the device state is supervised by the control panel zone. In the service mode, to
define how the output state is to be presented on the keypad, use the OUTS STATE BY
function (OUTPUTS GROUPS OUTS STATE BY).

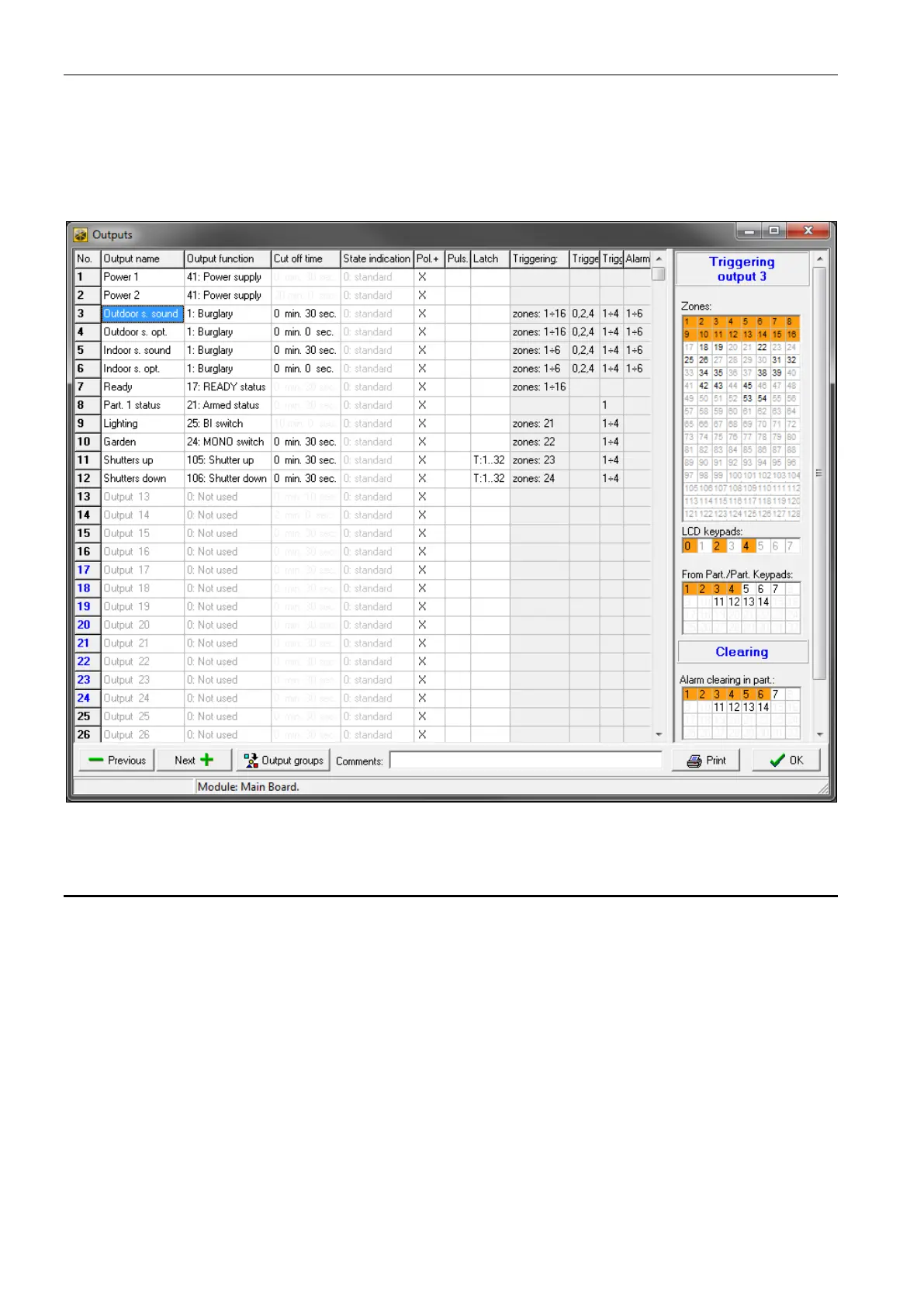

Fig. 6. “Outputs” window in the DLOADX program.
5.2 Output functions
0. NOT USED
1. BURGLARY – signals all burglary and panic alarms (from zones, keypad/expander tamper,
keypad Panic, etc.).
2. FIRE/BURGLARY – signals the burglary and panic alarms (continuous sound) and the fire
alarms (intermittent sound).
3. FIRE ALARM – signals the fire alarms (from fire zones and triggered from keypads).
4. KEYPAD ALARM – signals the alarms triggered from keypad: fire, medical (auxiliary) and
panic (except: silent panic alarm).
5. FIRE (FROM KEYPAD) – signals the fire alarms triggered from keypad.
6. PANIC (FROM KEYPAD) – signals the loud panic alarms triggered from keypad.
7. MEDICAL ALARM (FROM KEYPAD) – signals the medical assistance call alarm triggered from
keypad.
8. TAMPER ALARM – signals the tamper alarms.
