SATEL INTEGRA 97
control panel will make an attempt to send the event code to station 1 and, if unsuccessful,
to station 2.
The dual path reporting requires that the following settings be additionally
programmed:
− just one transmission path for Station 1: ETHM (Ethernet) [settings of the ETHM-1
Plus module with the INT-GSM / INT-GSM LTE module connected to it],
− priority transmission path for Station 2: GPRS SIM1 or GPRS SIM 2 [settings of the
ETHM-1 Plus module with the INT-GSM / INT-GSM LTE module connected to it],
− IP format for both stations: SIA-IP,
− supervision of the link between the control panel and the central station:
SUPERVISION INTERVAL parameter configured at least for the first monitoring station.

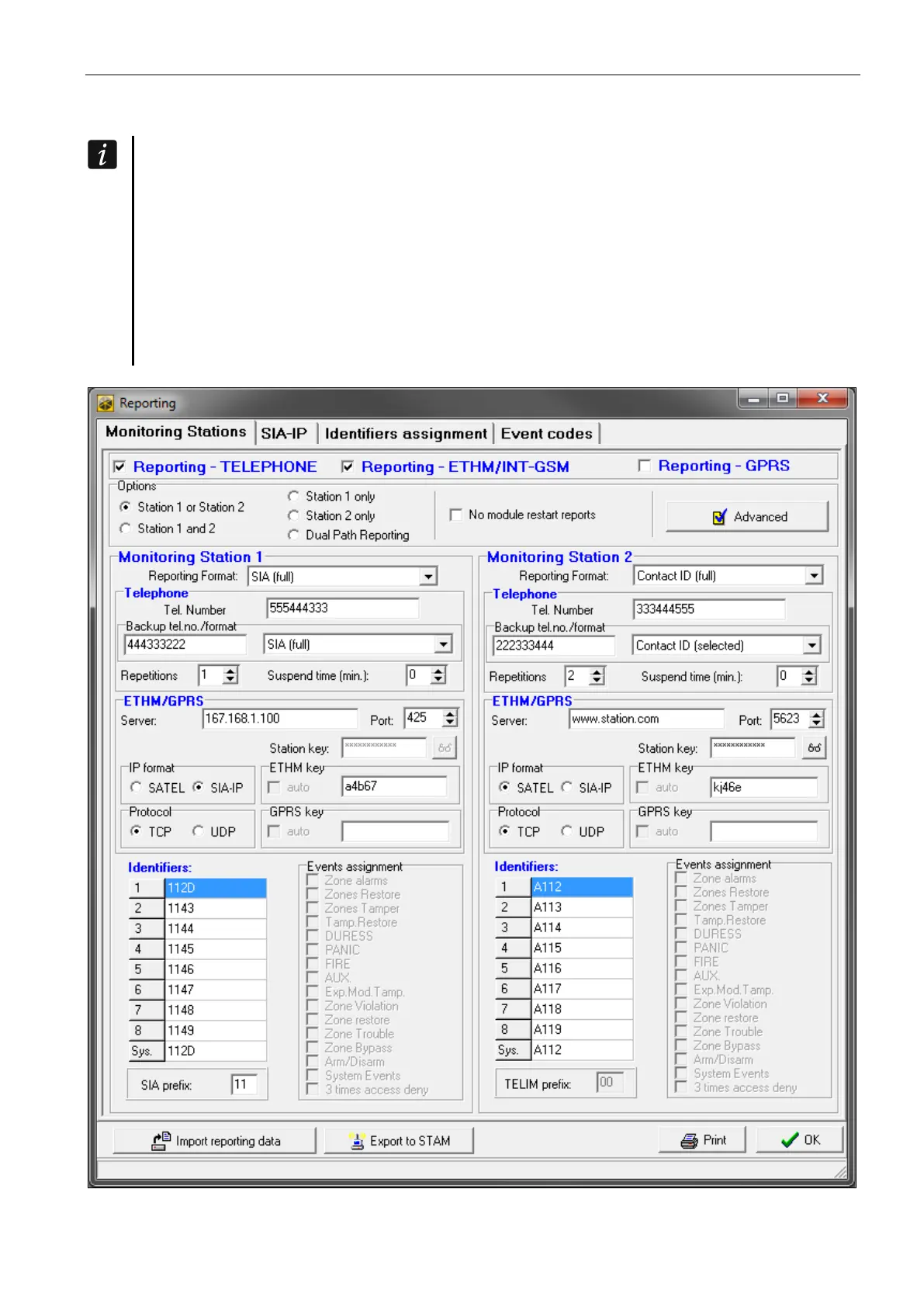

Fig. 11. Example of reporting settings in the DLOADX program.
