Section 7: Interface Specifications
Page 7-2 CG4 Series Operator Manual

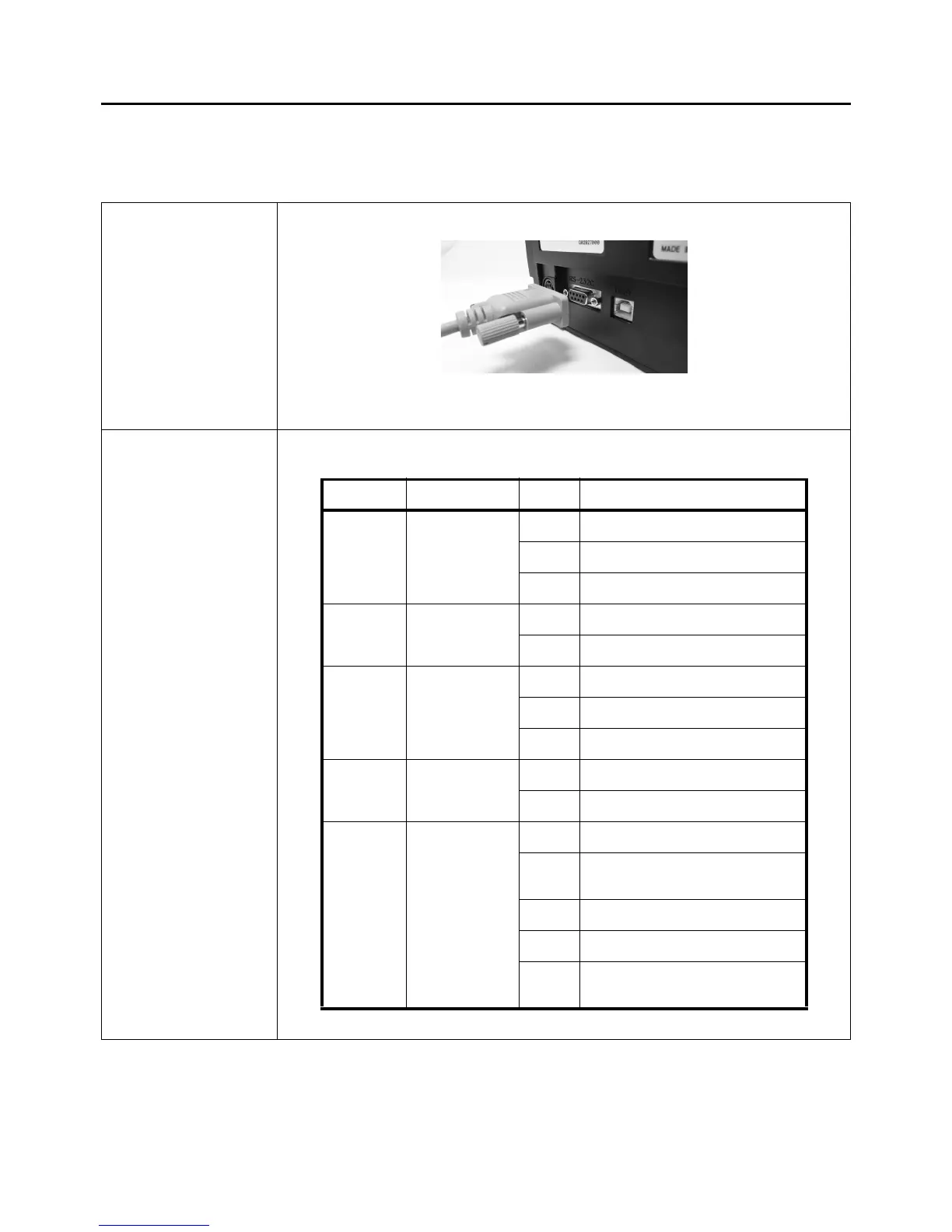

7.2 RS232C SERIAL INTERFACE
7.2.1 Basic Specifications of RS-232C Serial Interface
This interface complies with the RS-232C standard.
Interface connector
DB-9S or equivalent (Male)
Cable length: 5m or less
Communication
settings
Use Printer configuration tool or <I2> command to setup.
<I2>abcde
Parameter Item Value Description
a Baud rate
2 38400bps
1 19200bps [Default]
0 9600bps
b Data bit length
17 bits
0 8 bits [Default]
cParity bits
2 EVEN
1ODD
0 NONE [Default]
d Stop bits
12 bits
0 1 bit [Default]
e Protocol
4STATUS 3
3 Protocol for driver (STATUS 4)
[Default]
2 XON/XOFF
1 READY/BUSY (Multi item buffer)
0 READY/BUSY (Single item
buffer)
