SATO CG408TT User Manual

Section 8: Appendix
Page 8-2
CG4 Series Operator Manual
8.1 OPTIONAL ACCESSORIES - CUTTER
The cutter should only be installed by SATO qualified servicing personnel.
8.1.1 To route the media when the cutter is installed
Loading of the media for cutter unit is similar to the usual procedure as explained in Section 2.3 Loading
Labels
.
8.1.2 Cut position Adjustment
If the cutting position is not at the regular position as mentioned below, you can change the offset setting
with the SBPL commands.

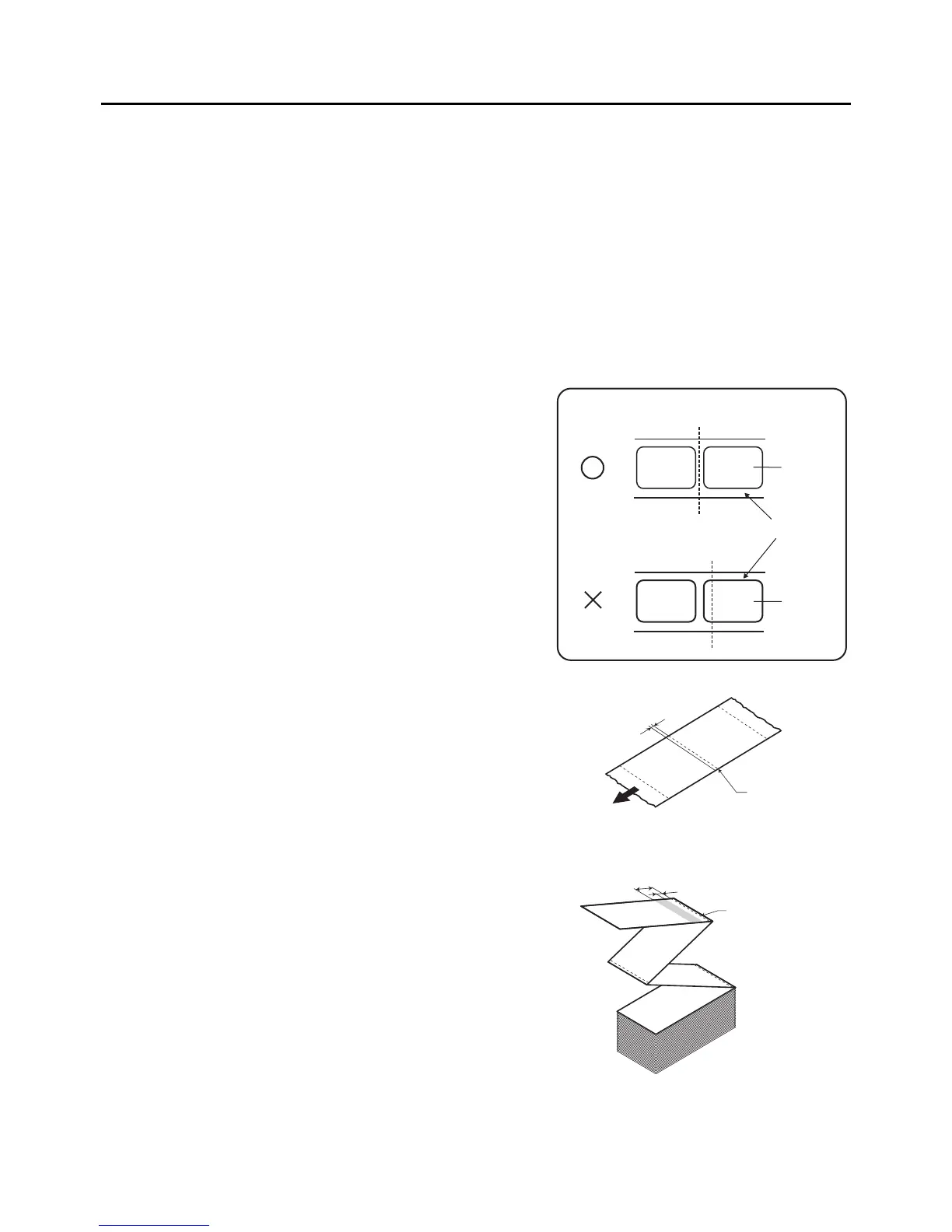

Notes when using media with optional cutter
• Cutting of Labels
The correct cutting position is at the label gap. Cutting
onto the label must be avoided because the label
adhesive that accumulates on the blade will affect cutter
sharpness.
•
Cutting Media with Perforation
As for media with perforation,
cutting on or in front of
the perforated lines is prohibited
. Cutting in those
locations could cause the media to jam and the printer to
malfunction.
The perforated line +1 mm (+0.04”) is the cut prohibited
zone (see Figure 1).
The folded perforated line +4 to +25 mm (+0.15” to
+0.98”) of fan-folded paper is the cut prohibited zone
(see Figure 2).
Backing paper
Cut Position
Label
Cut Position
Label
Figure 1
Cut prohibited zone
(1mm, 0.04”)
Perforated line
Figure 2
Fold perforation
25 mm, 0.98”
4 mm, 0.15”

SATO CG408TT Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Max Print Width	104 mm
Memory	8MB Flash ROM, 16MB SDRAM
Print Speed	4 ips
Media Sensor	Reflective and Transmissive
Interface	USB, RS232C
Optional Interfaces	Ethernet
Media Type	Roll, Fanfold
Media Width	22 mm to 118 mm
Media Thickness	0.06 mm - 0.2 mm
Ribbon Width	40 mm to 110 mm
Power Supply	AC 100-240V, 50/60 Hz
