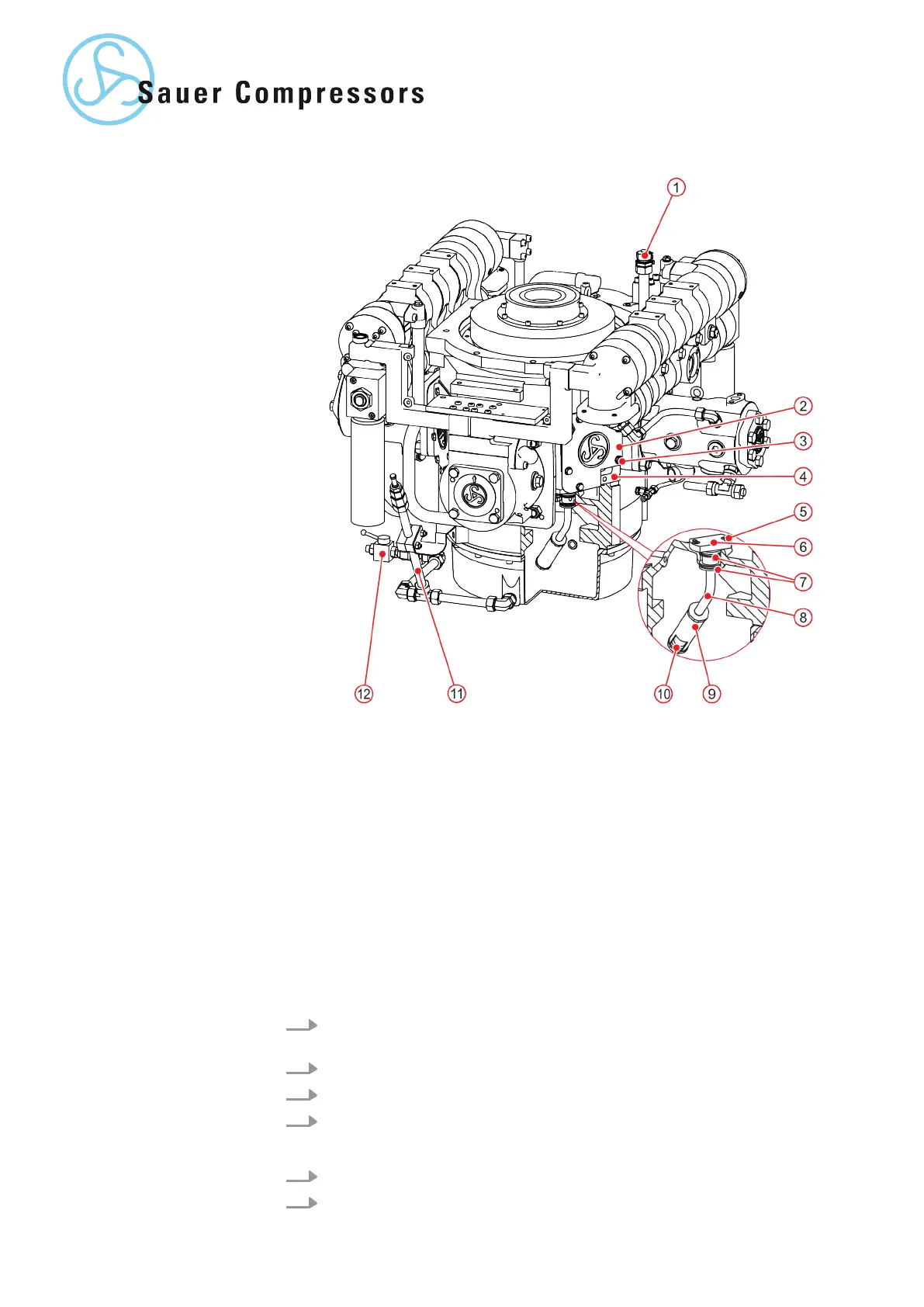

Fig. 2: oil change
1 Oil filler
2 Crankcase inspection cover
3 Hexagon head screw
4 Gasket
5 Pressure test threading
6 Tube
7 Tube o-ring
8 Oil pipe
9 Thread fitting
10 Oil strainer
11 Oil dipstick
12 Oil drain valve
1.
Place an oil spill pan with suf
ficient capacity (Ä Technical data in the
operating instructions) under the oil drain valve in the crankcase.
2. Unscrew the oil filler cap to ventilate.
3. Loosen the union nut and remove the locking cone.
4. Open the oil drain valve.
ð
Oil drains into the oil spill pan provided
5. Drain the oil completely.
6. Close the oil drain valve.
Draining the oil
20 | WP5000 Basic WA 41013675 en GB 20190916
