The following procedure applies to all installed piston rings,
gudgeon pins and gudgeon pin bearings.

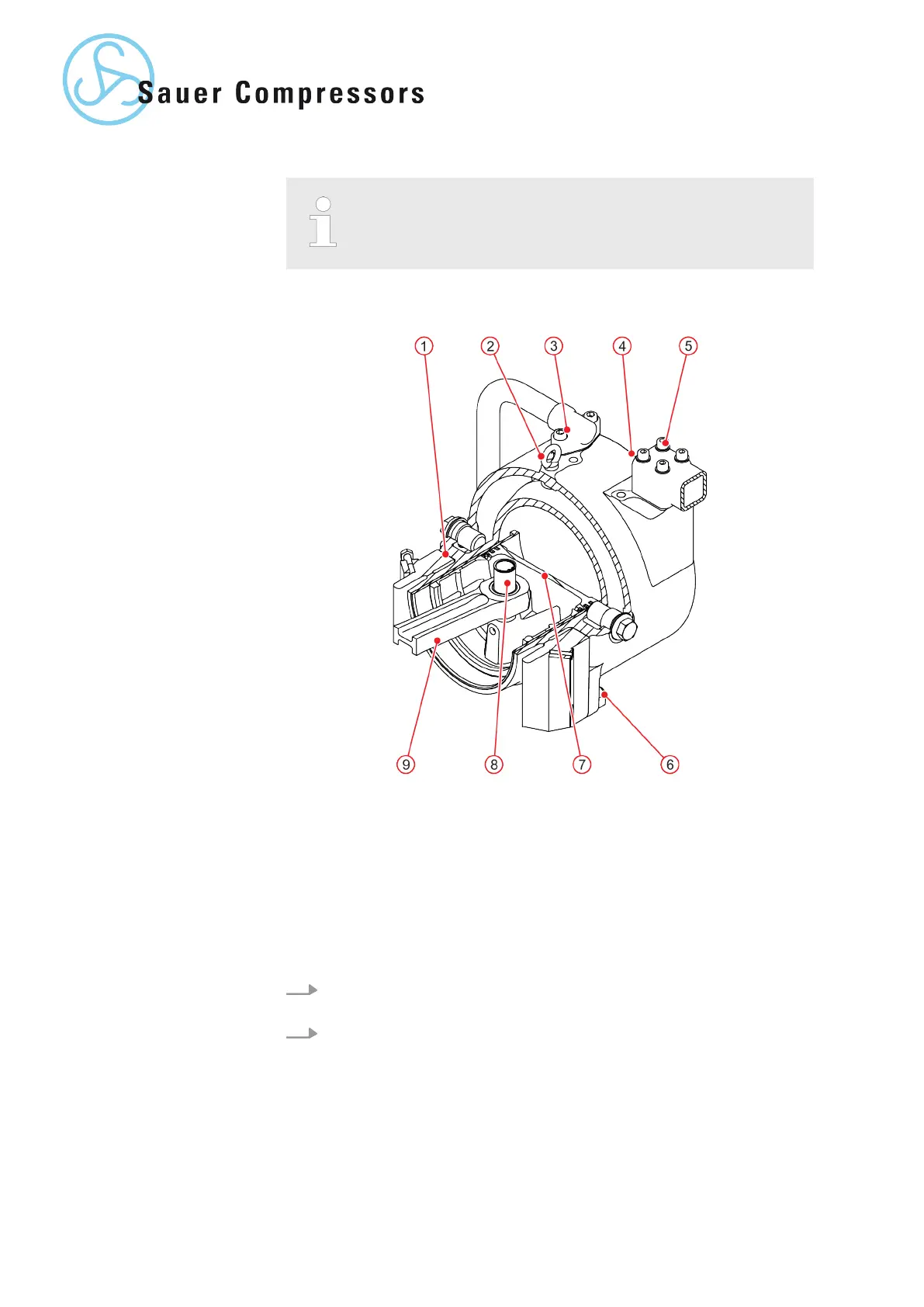

Fig. 10: Removing cylinders (example)
1 Cylinder foot gasket
2 Lifting eye
3 Pipeline
4 Cylinder
5 Socket head cap screw
6 Cylinder foot nut
7 Piston
8 Gudgeon pin
9 Upper part of the connecting rod
1. Disassemble the pipelines from each cylinder. Dispose of gaskets and
ring gaskets in an environmentally sound manner.
2. Support the cylinder for disassembly with a crane by the lifting eye.
Removing cylinders
34 | WP5000 Basic WA 41013675 en GB 20190916
