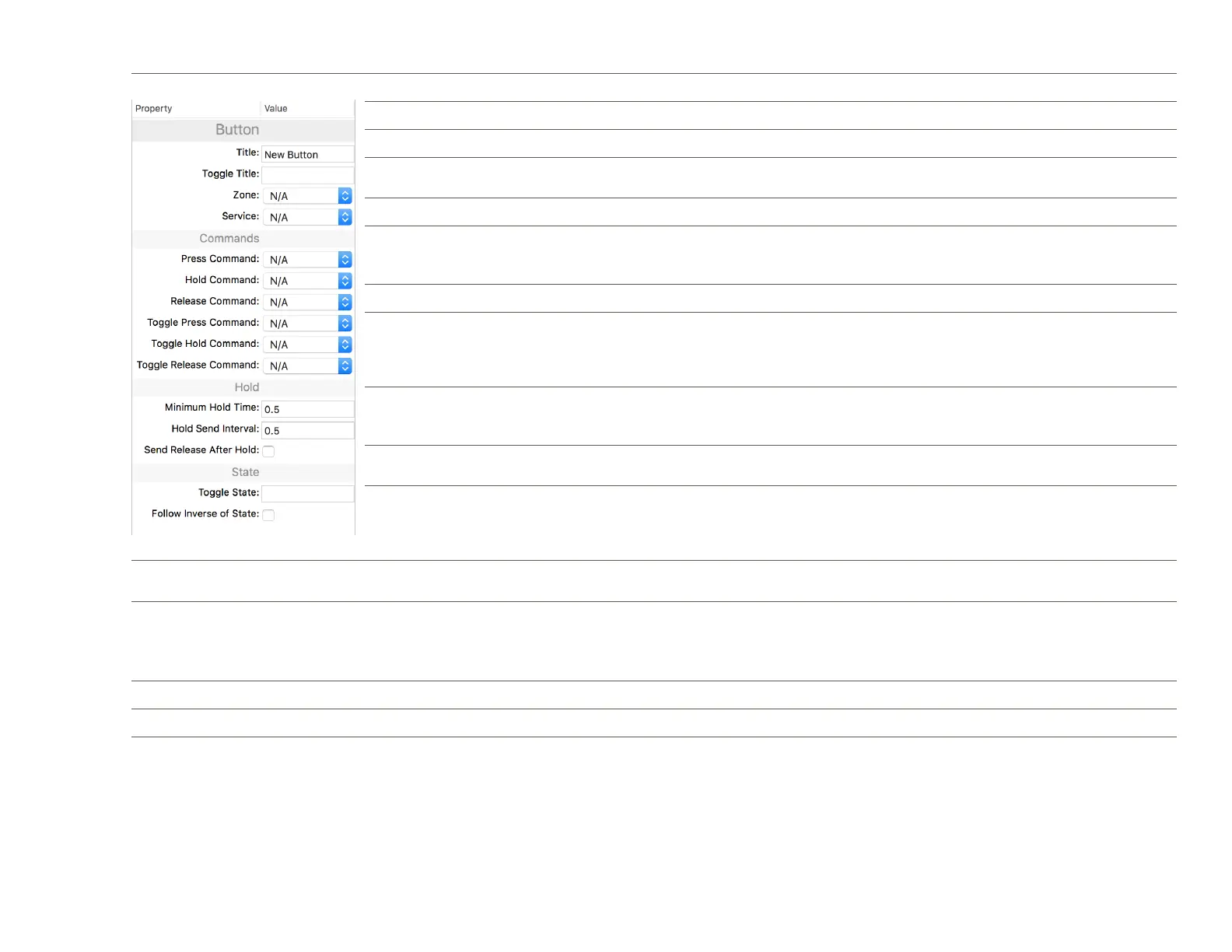

Button Properties
Title Label for the button.
Toggle Title Label for the button when in toggle state.
Zone Select the zone where the device being controlled is located.
Service
Select the service that will be controlled using the button. The Zone field above
determines which services are available in this field.
Press Command Select the command that is sent when the button is pressed.
Hold Command
Select the command that is sent when the button is pressed and held for a
duration equal to or greater than the time set in the Minimum Hold Time field.
Minimum Hold Time is described below.
Release Command Select the command that is sent when the button is released.
Toggle Press Command
If the button is a Toggle type button, send the command when the button is
pressed while the toggle state is active (toggled on). The button should have
previously been pressed and the command in either the Press or Release fields
was sent
Toggle Hold Command
If the button is a Toggle type button, send the command when the button is
pressed while the toggle state is active (toggled on) and held for the time set in
the Minimum Hold Time field. Minimum Hold Time is described below.
Toggle Release Command
Select the command that is sent when the button is released while it is pressed
and released while the toggle state is active (toggled on).
Minimum Hold Time
Sets the duration the button must be pressed and held before detecting a Hold or
Toggle Hold command. If the button is held for a duration that is less than the set
Minimum Hold Time, only the commands set in the Press, Release, Toggle Press,
and Toggle Release are sent.
Hold Send Interval
Sets the amount of time the button must be held for the command to repeat if held past the Minimum Hold Time.
The command will be repeated at the time interval for as long as the button is held.
Send Release After Hold
– Box Checked: The command set in the Release or Toggle Release Command field is sent after the button is
released. Only applicable after a Hold or Toggle Hold Command.
– Box Unchecked: The command set in the Release or Toggle Release Command field is NOT sent after each
Hold or Toggle Hold Command.
Toggle State Enter a Boolean state that the system will track the to determine if the Command or Toggle Command is sent.
Follow Inverse of State Inverts when the button will use the Command and the Toggle Command.
