Copyright © 2018 Savant Systems, LLCEntry Service with 2N Door Stations Deployment Guide
009-1540-00 | 181026
9 of 29

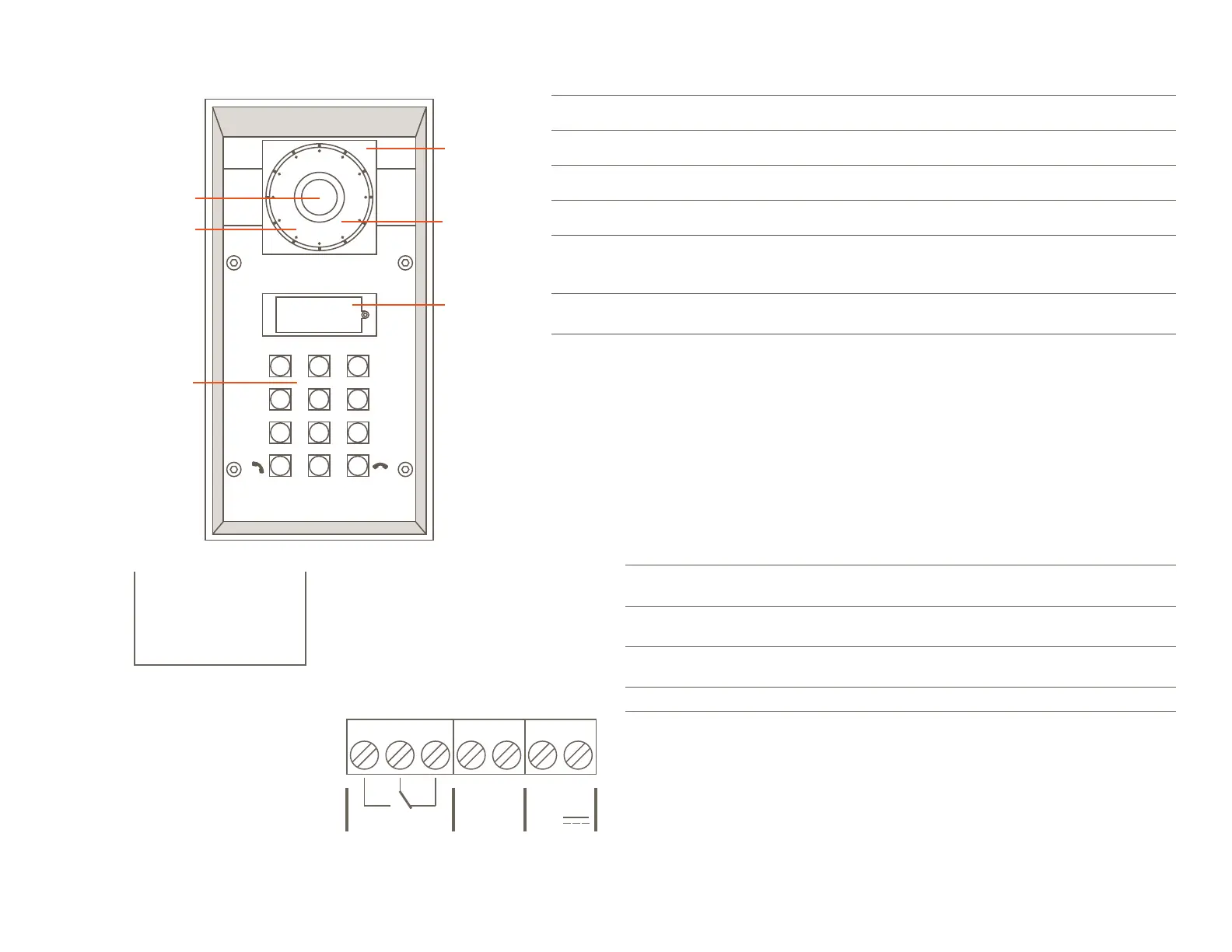

1 2 3
4 5 6
7 8 9
*
0 #
Keypad
Camera
Name Plate/
Call Button
IR LED
Microphone
Camera Wide-angle IP camera used to view who/what is at the entry.
IR LED Infrared LED for the night vision camera.
Speaker Audio Output.
Microphone Audio Input.
Name Plate/
Call Button
Removable clear plate to place Name/Address information behind with
White Backlight.
Press to start a call to the intercom
Keypad
12 button keypad used to start and end intercom calls. Also can be used
to enter codes to dial a certain apartment/residence or open a door
3.5. Heavy Gate Station (2N IP Force)
Front Panel
Internal Wiring
+
-
12VRELAY1
+
-
OUT1
LAN
LAN
RJ-45 female connector
(optional PoE 802.3af)
Relay1
Normally Open/Normally Closed
30V 1A AC/DC max
Out1
Active Output 8 to 12V DC max 400mA
(PoE: 10V; adapter: power supply voltage minus 2V)
12V External 12V 2A connection.
To Next Page
