Copyright © 2018 Savant Systems, LLCEntry Service with 2N Door Stations Deployment Guide
009-1540-00 | 181026
8 of 29
+ +
- -
+
-
12V/2ARELAY1OUT1IN1
LAN
(PoE)
RESET LINE
OUT
MIC
BUS
R G Y

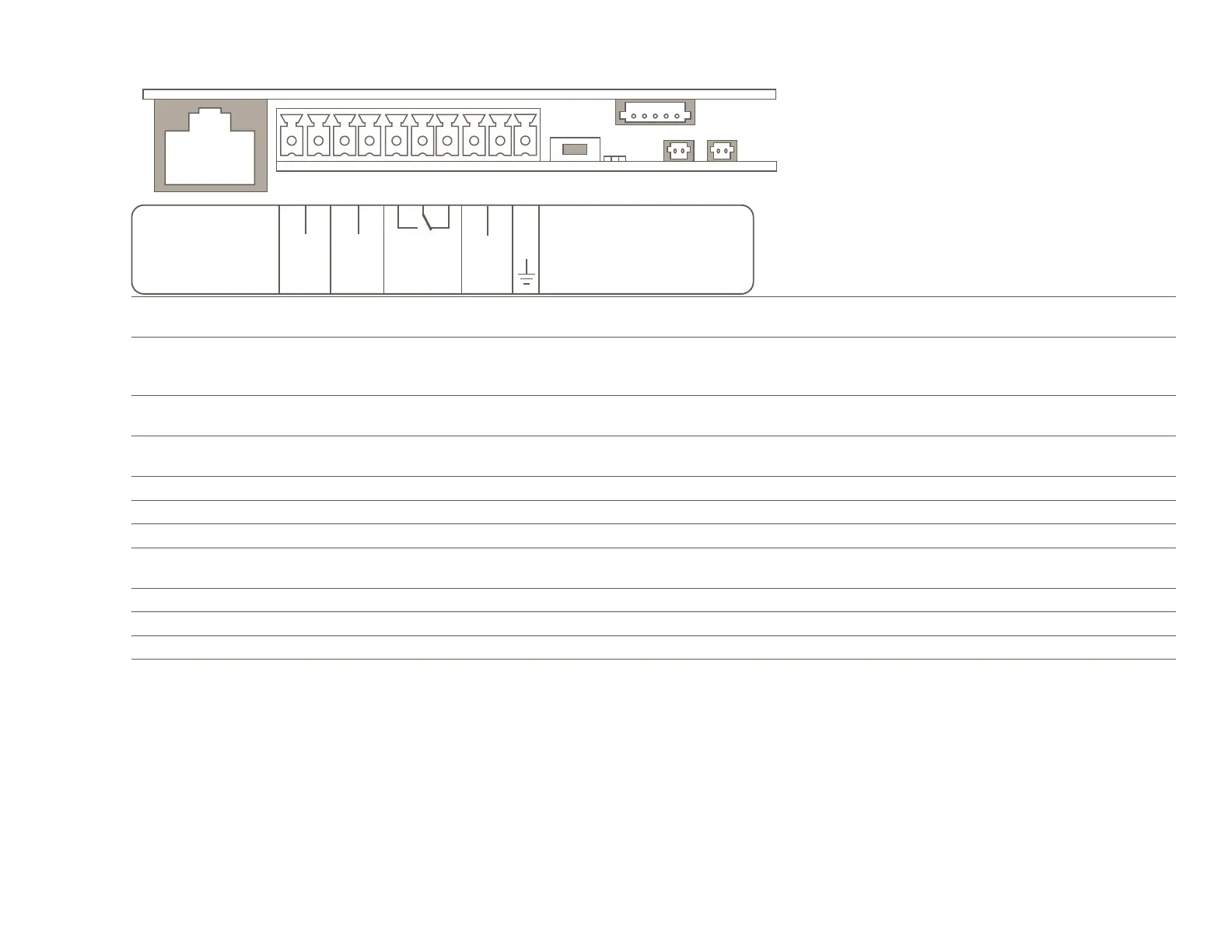

Internal Wiring
LAN (PoE)
RJ-45 female connector
(optional PoE 802.3af)
In1
Sense input -30V to +30V DC
OFF: open OR U
IN
> 1.5V
ON: closed OR U
IN
< 1.5V
Out1
Active Output 8 to 12V DC max 400mA
(PoE: 10V; adapter: power supply voltage minus 2V)
Relay1
Normally Open/Normally Closed
30V 1A AC/DC max
12V/2A External 12V 2A connection.
Ground Grounding terminal
Bus Module bus connection
Reset
Reset/Factory Reset button
Press button for <1s to reboot the unit
LED indicators Red/Green/Yellow
Line Out Audio line out (1V
RMS
)
Mic Microphone connection
