Copyright © 2018 Savant Systems, LLCEntry Service with 2N Door Stations Deployment Guide
009-1540-00 | 181026
6 of 29
Ground Grounding terminal
12V/2A External 12V 2A connection.
Relay1
Normally Closed/Normally Open
30V 1A AC/DC max
Out1
Active Output 8 to 12V DC max 400mA
(PoE: 10V; adapter: power supply voltage minus 2V)
In1
Sense input -30V to +30V DC
OFF: open OR U
IN
> 1.5V
ON: closed OR U
IN
< 1.5V
Reset
Reset/Factory Reset button
Press button for <1s to reboot the unit
LAN (PoE)
RJ-45 female connector
(optional PoE 802.3af)

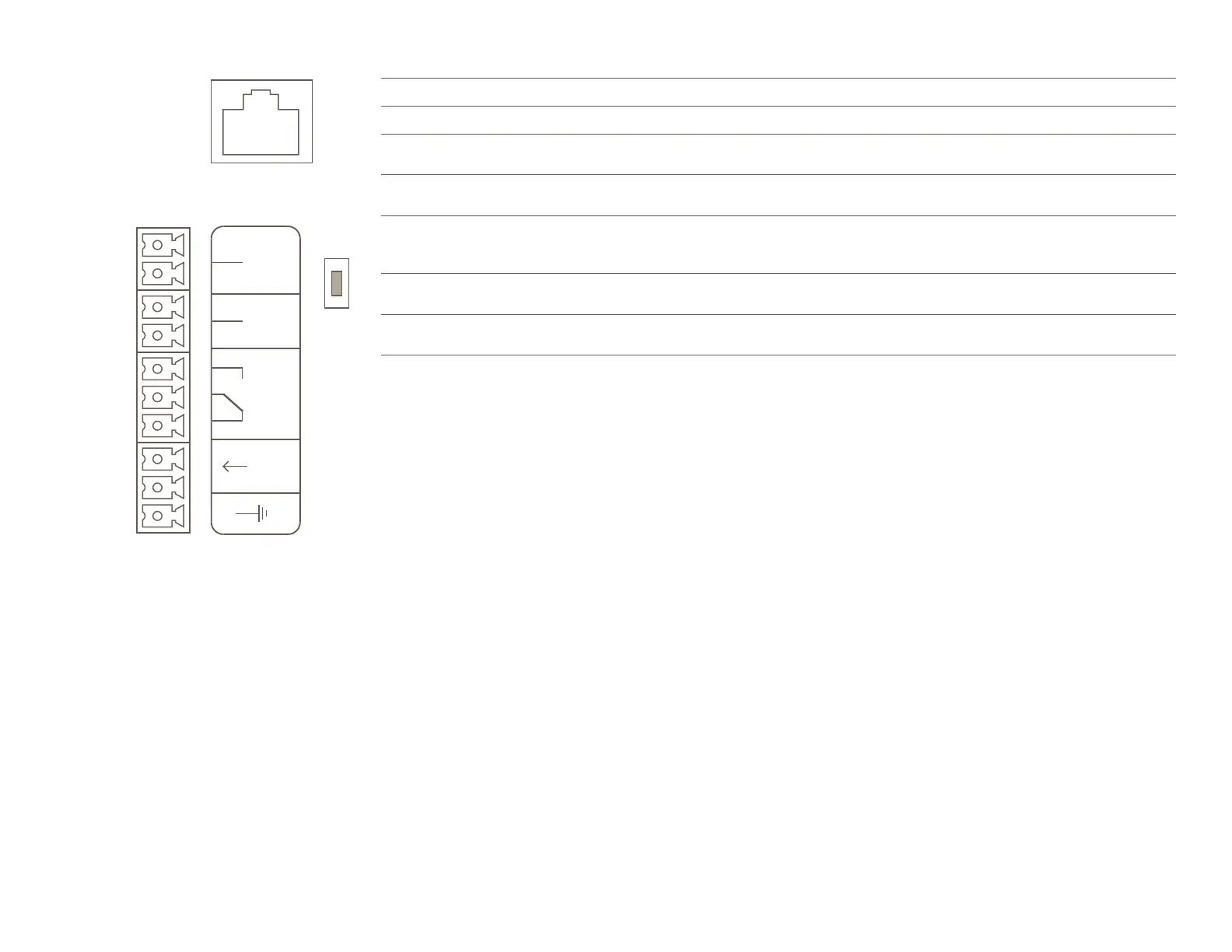

Internal Wiring
++
--
+
-
12V/2A RELAY1 OUT1 IN1
LAN
(PoE)
RESET
