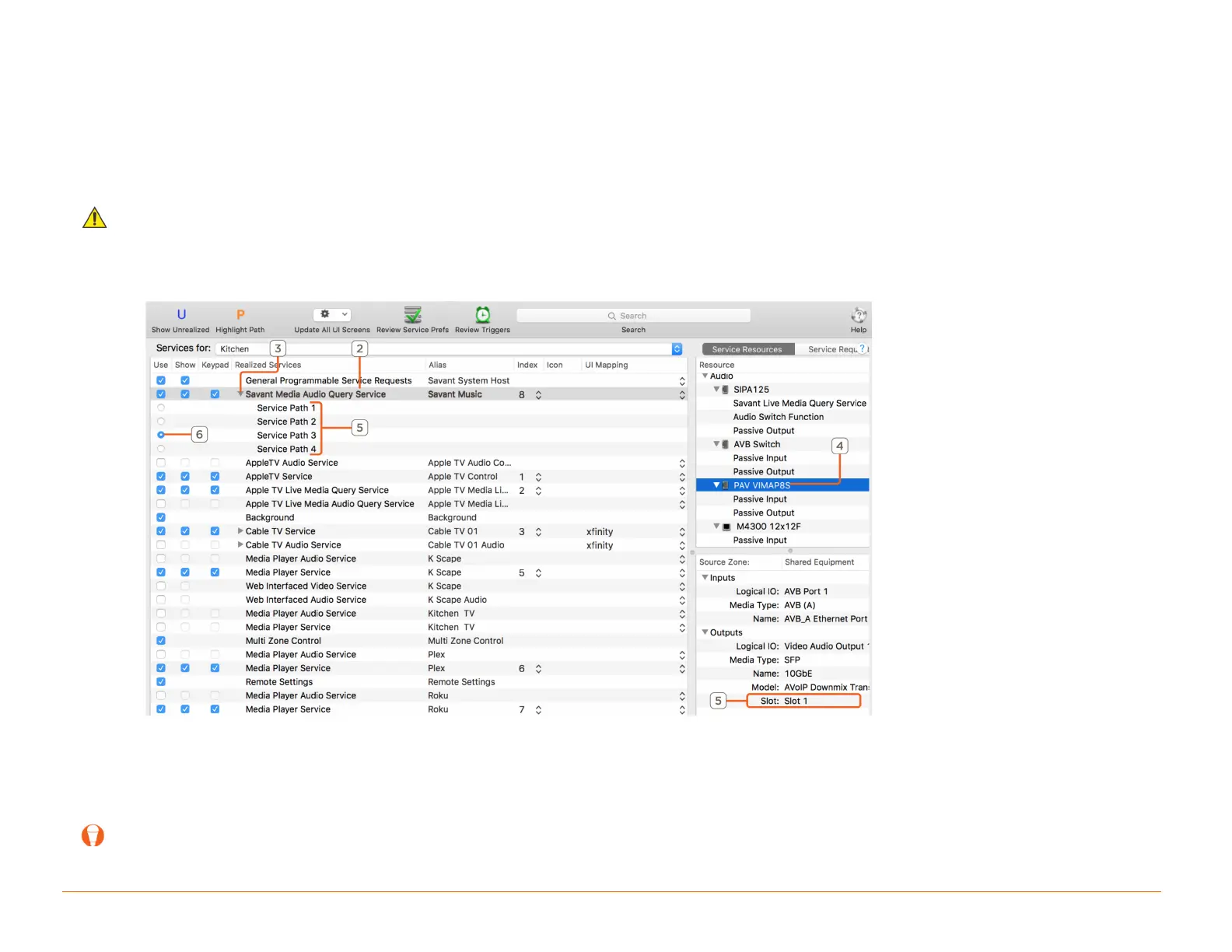

7. System Monitor
In System Monitor, there is an AVoIP Info tab for information gathering and changing settings. This System Monitor tab will only display in a system that has
the Video over IP device in the configuration.
4K 1080p
720p
Use Input
Settings
Resolutions
60 Hz 50 Hz
30 Hz
Use Input
Frame Rates
25 Hz 24 Hz
Settings
Path Policy
Downmix
Logical IOs
?
Video
Audio
Status
Video Format:
HDCP Protected:
HDMI 2.0 Supported:
Source HDCP Version:
Color Space:
Color Depth:
Source Stable:
Notes:
3840 x 2190p [16:9] @ 60Hz
Yes
Yes
HDCP 2.2
YcbCr 4:2:2
Yes
12 bits
Status
Current Audio Format:
No Info
Chassis
PAV-VOMVP1F
LR Fiber VOM
PAV-VOMVP1F
Theater Fiber VOM
PAV-VOMVP1C
MB Copper VOM
PAV-VIMAP8S
VIMAP8S
PAV-VOMVP1C
Kitchen Copper VOM
PAV-VIMVP1F
BluRay VIM
PAV-VOM1C
Girls Bed VOM
PAV-VIM1C
Xbox VIM
Port InformationAV Settings
Video Audio Output 1
Master TV
DC
BA
A
Chassis List of Video over IP devices in the configuration.
B
Logical IOs
List of inputs or outputs on the device selected in the
Chassis window.
C
Settings
Video and Audio settings, down mixing audio or video
scaling settings can be changed in this section. See Video/
Audio Settings section below for more information.
D
Status
Displays the current status of selected I/O. See Video/
Audio Status section below for more information.
7.1. Video/Audio Status
?
Video
Audio
Status
Video Format:
HDCP Protected:
HDMI 2.0 Supported:
Source HDCP Version:
Color Space:
Color Depth:
Source Stable:
Notes:
3840 x 2190p [16:9] @ 60Hz
Yes
Yes
HDCP 2.2
YcbCr 4:2:2
Yes
12 bits
Status
Current Audio Format:
No Info
Video Format – Displays active video resolution and frame rate.
HDCP Protected – Displays if HDCP is enabled
HDMI 2.0 Supported – Displays if the connected device supports HDMI 2.0.
Source HDCP Version – Displays the HDCP version from the source content.
Color Space – Displays the color format used in the current Video
Color Depth – Displays the active number of bits for color data.
Source Stable – Displays if video is received from the connected source.
Current Audio Format – Displays current audio format. Not supported on the PAV-VIMxS, PAV-VIMVP1x, and
PAV-VIM1C.
