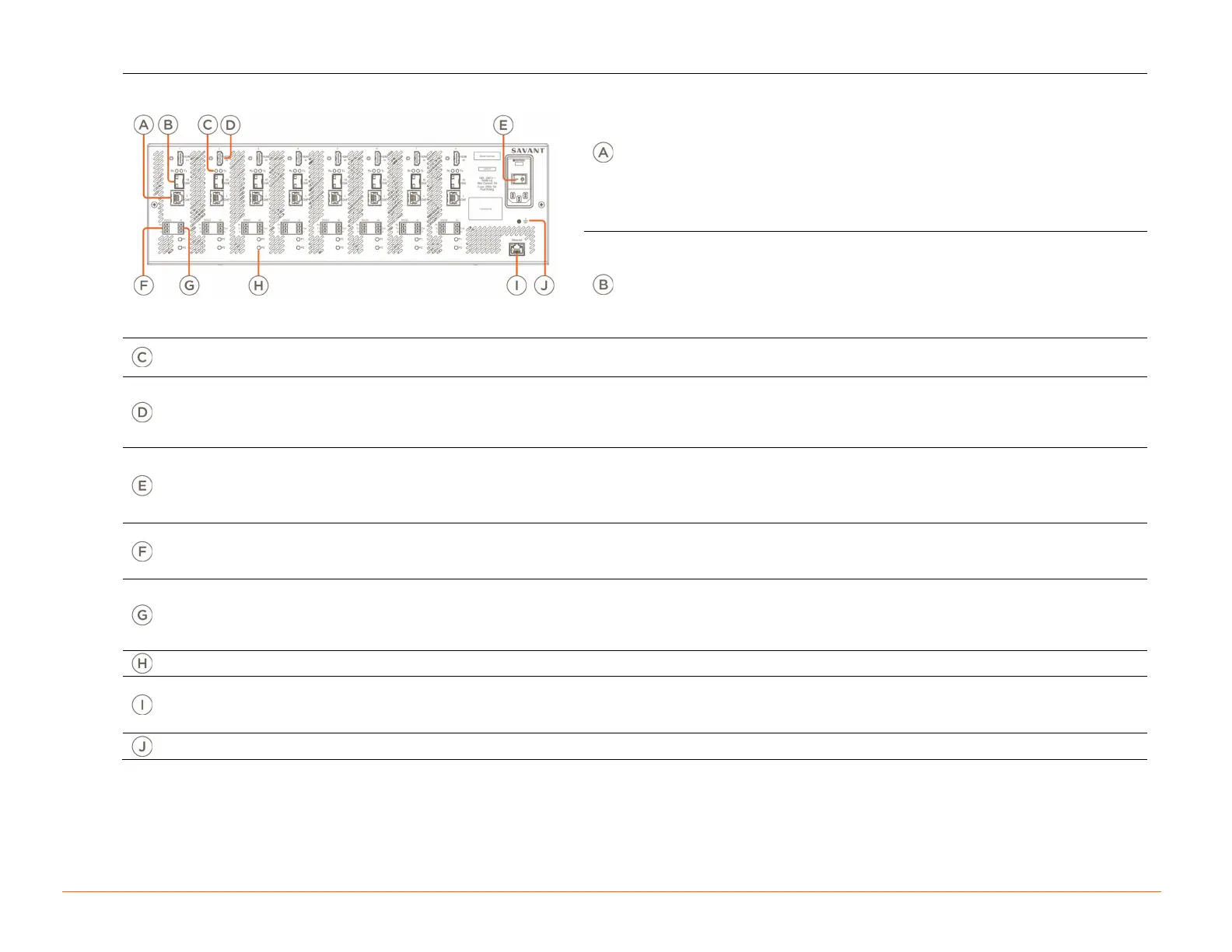

3.6. Network
PAV-VIMxS - Uses a standard RJ-45 port complying with IEEE 802.3 Ethernet standards. This port is used for communication with the Savant Host.
PAV-VIMAPxS - Uses a standard RJ-45 port complying with IEEE 802.3 Ethernet standards. This port supports AVB/TSN for communication with
the Savant Host and with Savant IP Audio devices. If the breakout down-mixed audio is going to be used this port must be connected to a Savant
qualified AVB switch.
VOMVP1x - Uses a shared Ethernet connection from its 10G connection.
3.7. AC Power
The IP Audio Products have an AC Power connection.
SURGE PROTECTION!
Use a surge-protected circuit for all components and power supplies requiring 100/240V (AC 50/60 Hz) source power.
ELECTRICAL DISCONNECT!
The source power outlet and power supply input power sockets should be easily accessible, to disconnect power in the event of an electrical
hazard or malfunction.
Power Management Recommendations
Savant recommends a pure sine wave uninterruptible power supply (UPS) with the ability to shut down the Savant Host before the battery runs
out of power. Never remove power from the Savant IP Video devices before shutting down. See Savant Battery Backup and Surge Suppression
Requirements on the Savant Customer Community.
3.8. Checking and Replacing the Fuse
Only the PAV-VIMxS/PAV-VIMAPxS has a field replaceable fuse. For fuse information, refer to the Quick Reference Guide for each product..
ELECTRIC SHOCK HAZARD: This device must be disconnected from AC power by removing the power cord from the AC outlet and the unit
before checking or replacing the fuse.
IMPORTANT! The orientation of the cartridge within the unit and location of the fuse within the cartridge are crucial to proper operation. Make
note of the orientation of the cartridge and the fuse location within the cartridge before removing.
1. Disconnect the unit from AC power by removing the power cord.
2. Open the fuse cover on the AC power input using a flat head screwdriver
or similar thin flat head tool. This will allow access to the fuse cartridge.
3. Using a flat head screwdriver or similar thin flat head tool, gently loosen
the cartridge and pull the cartridge out of the unit slowly. As the cartridge
is removed, make note of the orientation, as it is important to proper operation.
TIP: Mark the chassis and fuse holder with a marker in order to align when replacing.
4. Remove the old fuse from the cartridge and discard.
5. Gently place the new fuse in the cartridge and place the cartridge part way into
the receptacle aligning it as defined in the diagram.
6. Gently press on the cartridge the rest of the way until it seats into the terminals at the rear of the slot.
NOTE: If strong resistance encountered while seating cartridge, DO NOT apply more pressure. Remove, check orientation, then repeat.
A
B
Connection Pins Towards Unit
Open Side of Cartridge Towards Power Switch
A
B
