SCADAmetrics EtherMeter User Manual

15
METER HOOKUP FOR NEPTUNE-COMPATIBLE REGISTERS:

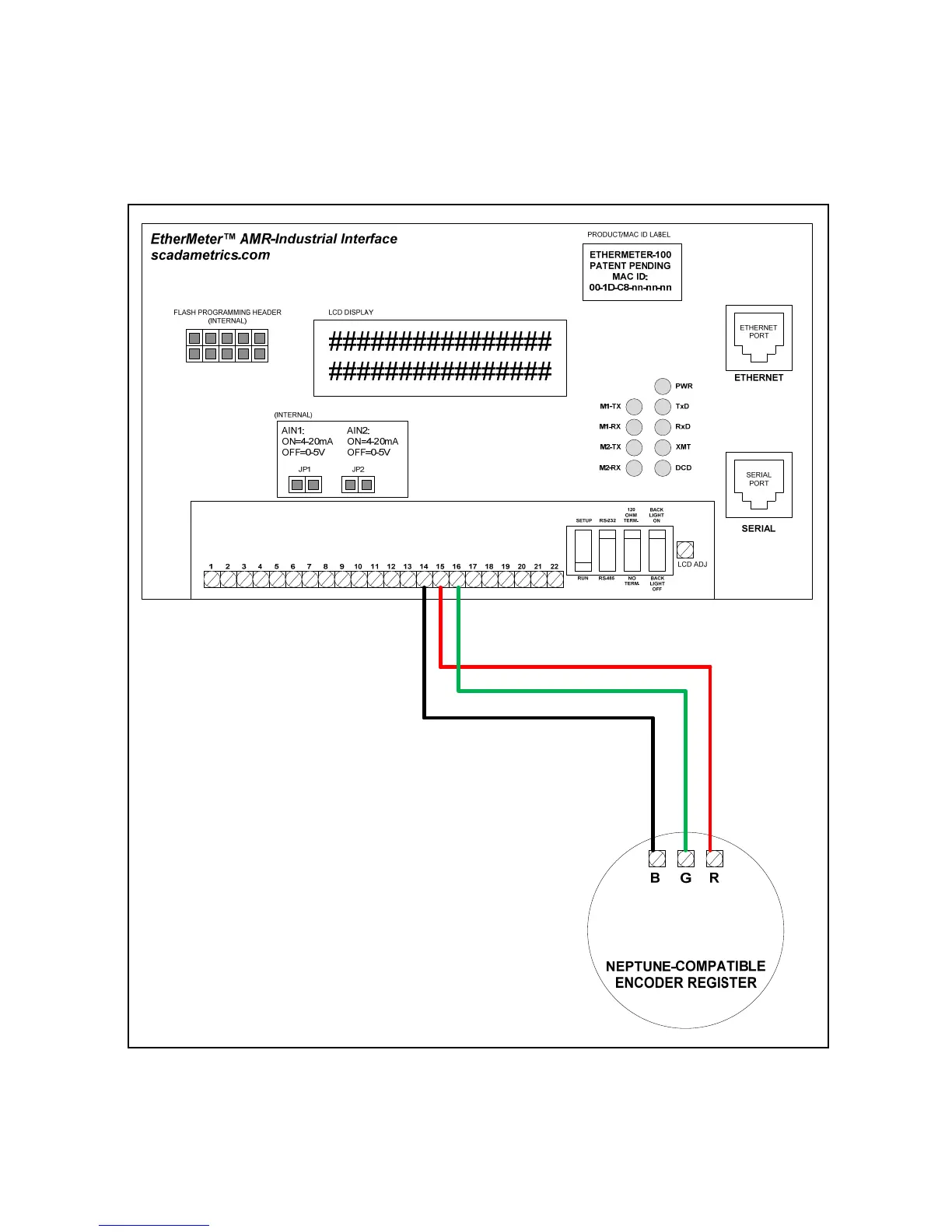

The following diagram demonstrates the hookup of a Neptune-compatible encoder register to
Meter Channel 1 of the EtherMeter. Terminals 14, 15, and 16 are used in this case. Hookup to
Meter Channel 2 will be identical, except terminals 17, 18, and 19 are used.
PWR+ PWR- CANH CANL
RESERVED
AIN1+ AIN1- AIN2+ AIN2-
AUX1+ AUX1- AUX2+ AUX2-
M1-TX
M1-RX
M1-CMN M2-TX M2-RX M2-CMN
485-A 485-B 485-CMN
