Micro Centrifuge, mini – Service manual
10

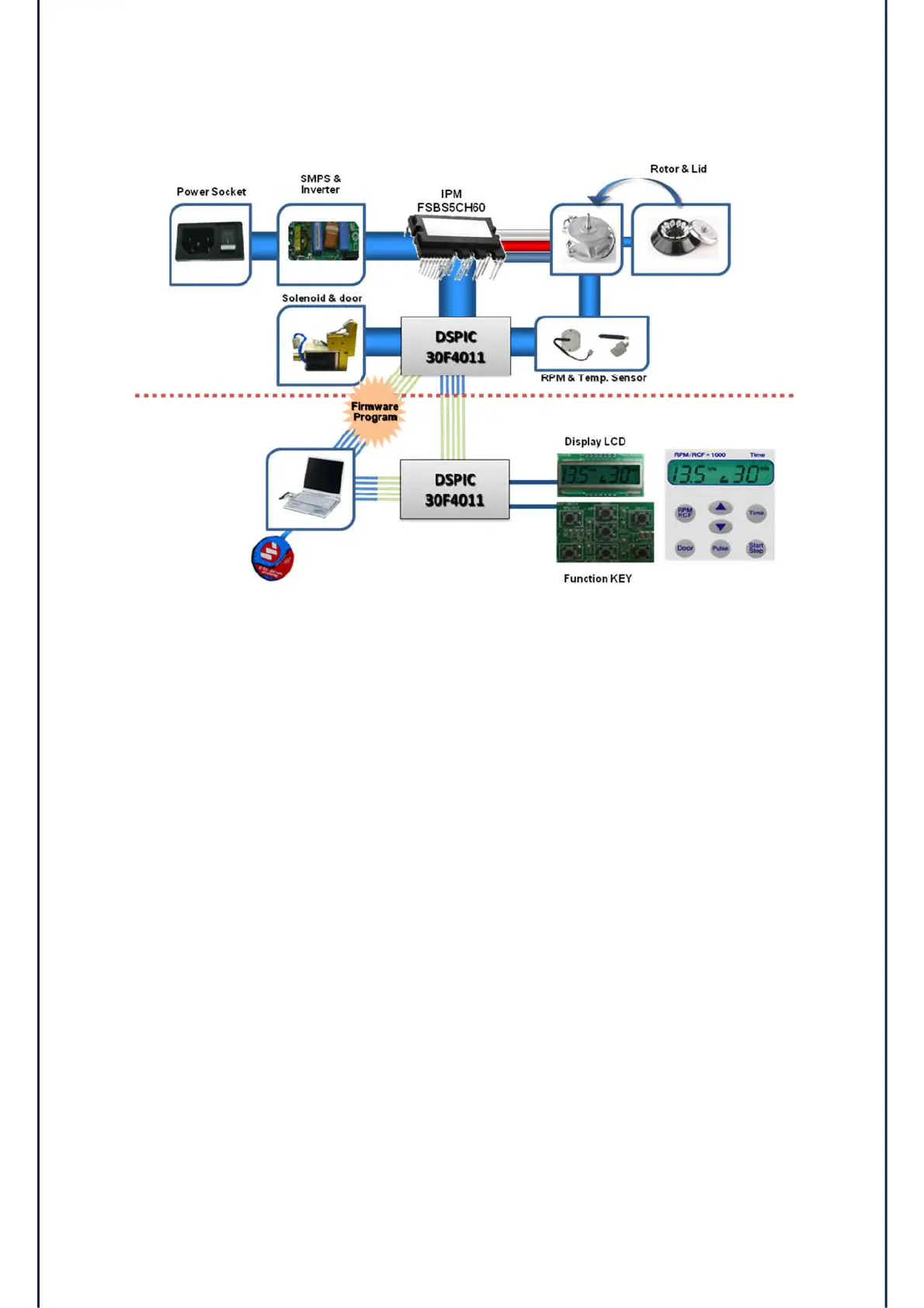

3.5 Operating System
1) DSPIC 30F4011, MICOM; controls all devices.
2) SMPS; distributes inlet power to each part as appropriate form.
3) Inverter; transforms the single phase power to the 3 phase for running the AC
induction motor.
4) IPM FSBS5CH60; controls the AC induction motor.
5) Solenoid; opens and closes the door lid automatically.
6) Temperature sensor; measures the temperature of motor at its surface and issues E3
error if it goes too high(above 110℃).
7) Firmware program; used to update the firmware with notebook and interfacing
connector.
