Schenker MODULAR 150 Installation, Use & Maintenance Manual

3 – PRODUCT PRESENTATION COD.150M230.T.2021
EN
THE PRESENT MANUAL BELONGS TO - Schenker Italia - ALL RIGHTS RESERVED
14
3.8 Composition of the machine
The machine is composed of the following parts:
1. PUMP GROUP
2. WATERMAKER GROUP
3.8.1 Pump group
This pump has the duty of picking the sea water up and send it to the watermaker group, through the pre filter.
The pump group is composed of the following parts:
• 5 micron cartridge filter
• Vane pump
• High pressure switch
• Pump box

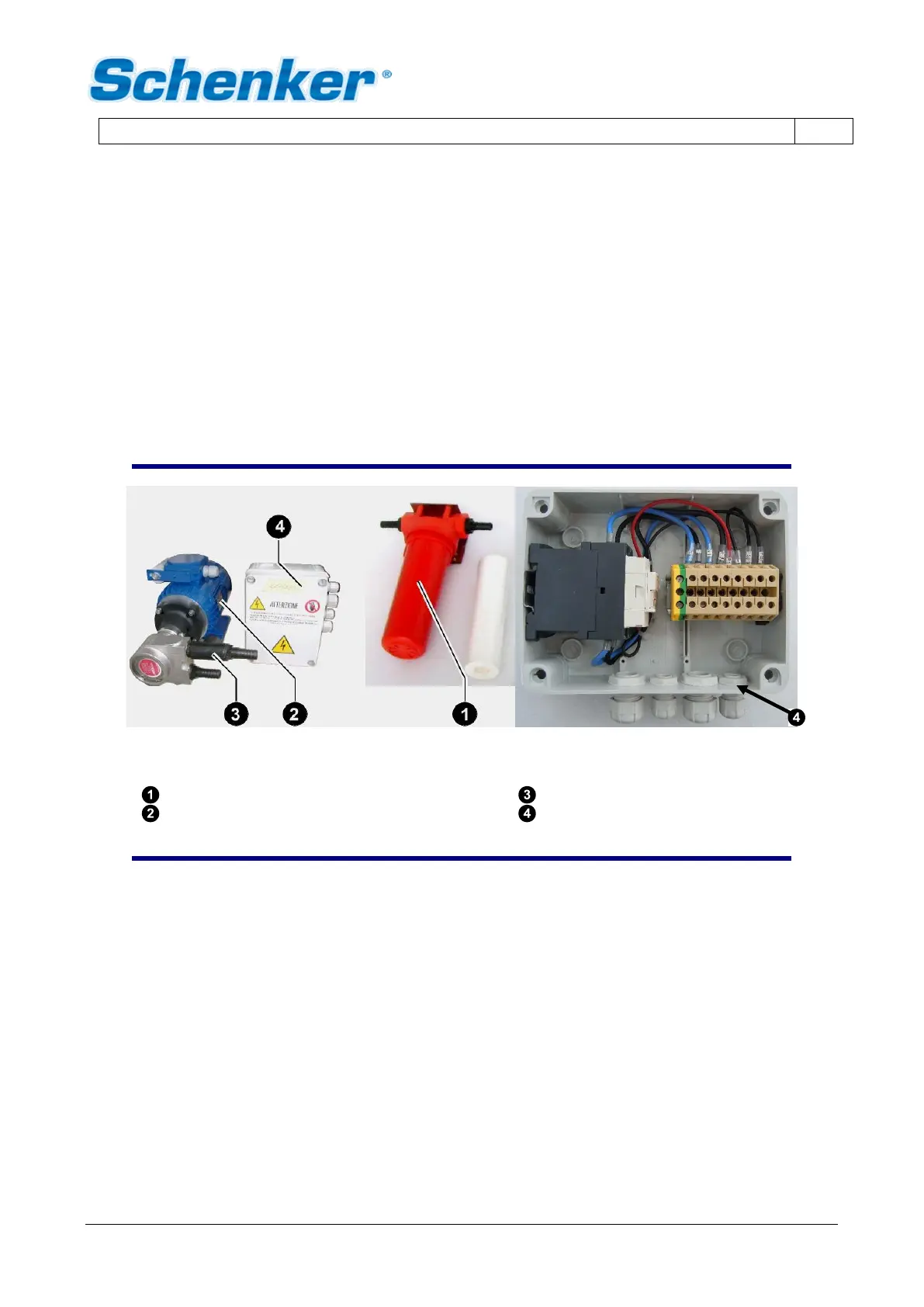

PUMP GROUP AND FILTER 230 V AC
FIG. 3-6
5 micron cartridge filter
High pressure switch
Pump head with AC motor
Pump box with relays
High pressure switch. It Is hydraulically connected to the pump. It stops the system if the pump pressure
exceeds 13 bar. In this case a high-pressure alarm is activated on the control panel.
Pump box. Plastic Box with all the electric connections for the power supply of motor, motherboard, pressure
switches, remote panel and electrovalve.
