3 – PRODUCT PRESENTATION COD.150M230.T.2021

Diverting valve*. It is an electrovalve that diverts the fresh water flow according to the value measured by

a salinity probe, avoiding the salty water to be sent to the production tank.

The 2 cables of the probe must be connected on the PCB of the electric box, clamps Cond and (-).

The 2 cables of the valve must be connected on the PCB of the electric box, clamps Chem and (-).

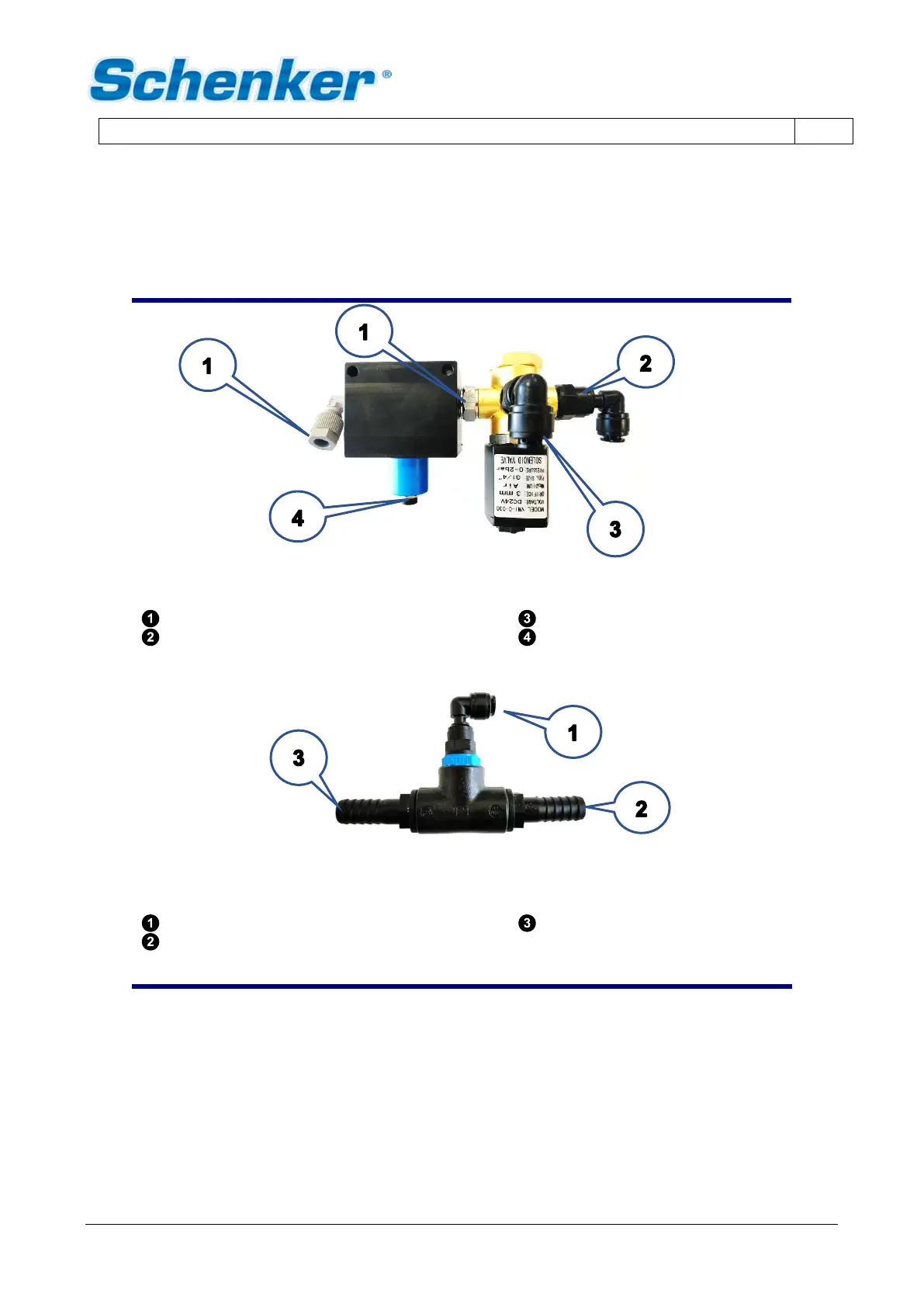

DIVERTING VALVE

FIG. 3-11

IN – from membrane outlet

OUT – tank connection

OUT – discharge connection

Probe

TEE DISCHARGE CONNECTION

FIG. 3-12

Connection from diverting valve

Outboard discharge

Discharge from the watermaker

*Optional
