Schenker MODULAR 150 Installation, Use & Maintenance Manual

5 – FUNCTIONING AND USE COD.150M230.T.2021
EN
THE PRESENT MANUAL BELONGS TO - Schenker Italia - ALL RIGHTS RESERVED
34
WARNINGS

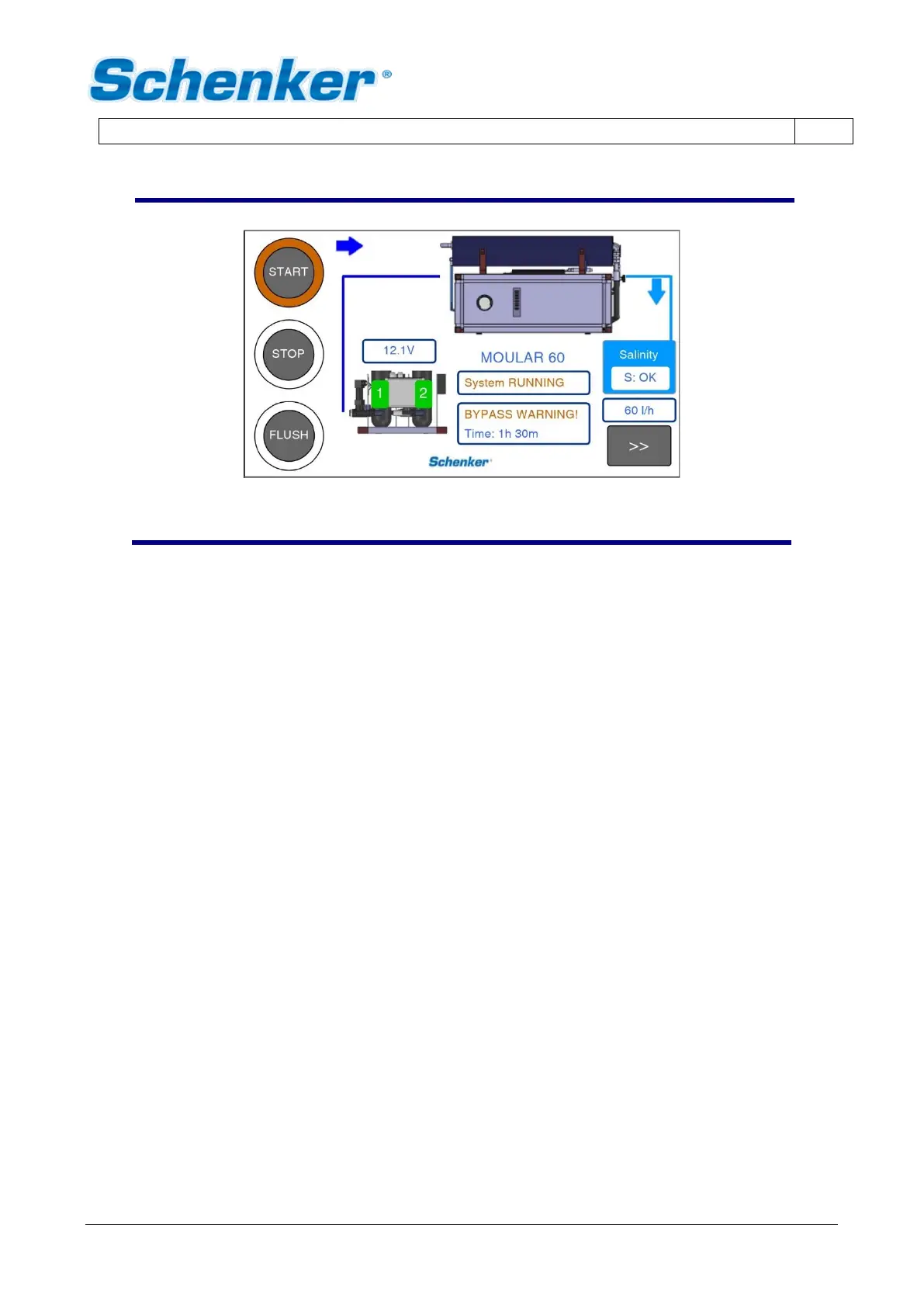

FIG. 5.4
Messagges
SYSTEM RUNNING
It indicates that the system is properly running.
SYSTEM STOP
It indicates that the system is ready to be set and started.
TANK FULL / AUTO*
It indicates that the system is in standby because the fresh water tank is full. It starts automatically when the
tank is empty.
Messages related to the salinity probe *:
DIVERT TO DISCHARGE
For 1 minute the fresh water production is diverted to discharge.
S = wait This means that the salinity meter is still completing calculations.
S = OK Quality of the produced water is good.
S = MED Quality of the produced water is medium.
S = BAD Quality of the produced water is bad.
Warning messages
There are different warning massages: the unit still works but some controls are disabled. The distinctive color
is ORANGE.
BYPASS WARNING
This message advices or remembers that the unit is working in bypass mode (then some safety functions are
disabled).
DIV. VALVE BY-PASS*
This message advices or remembers that the unit is working without the salinity probe control (then all the
produced water is diverted to the fresh water tank).
*Optional
