Schiller AT-2 - AT-2 Short Form Operating Instructions

Page 1.5
Chapter 1
Operating Elements
SCHILLER AT-2 6-Channel ECG Unit
SERVICE HANDBOOK Issue 2.1 November 1998

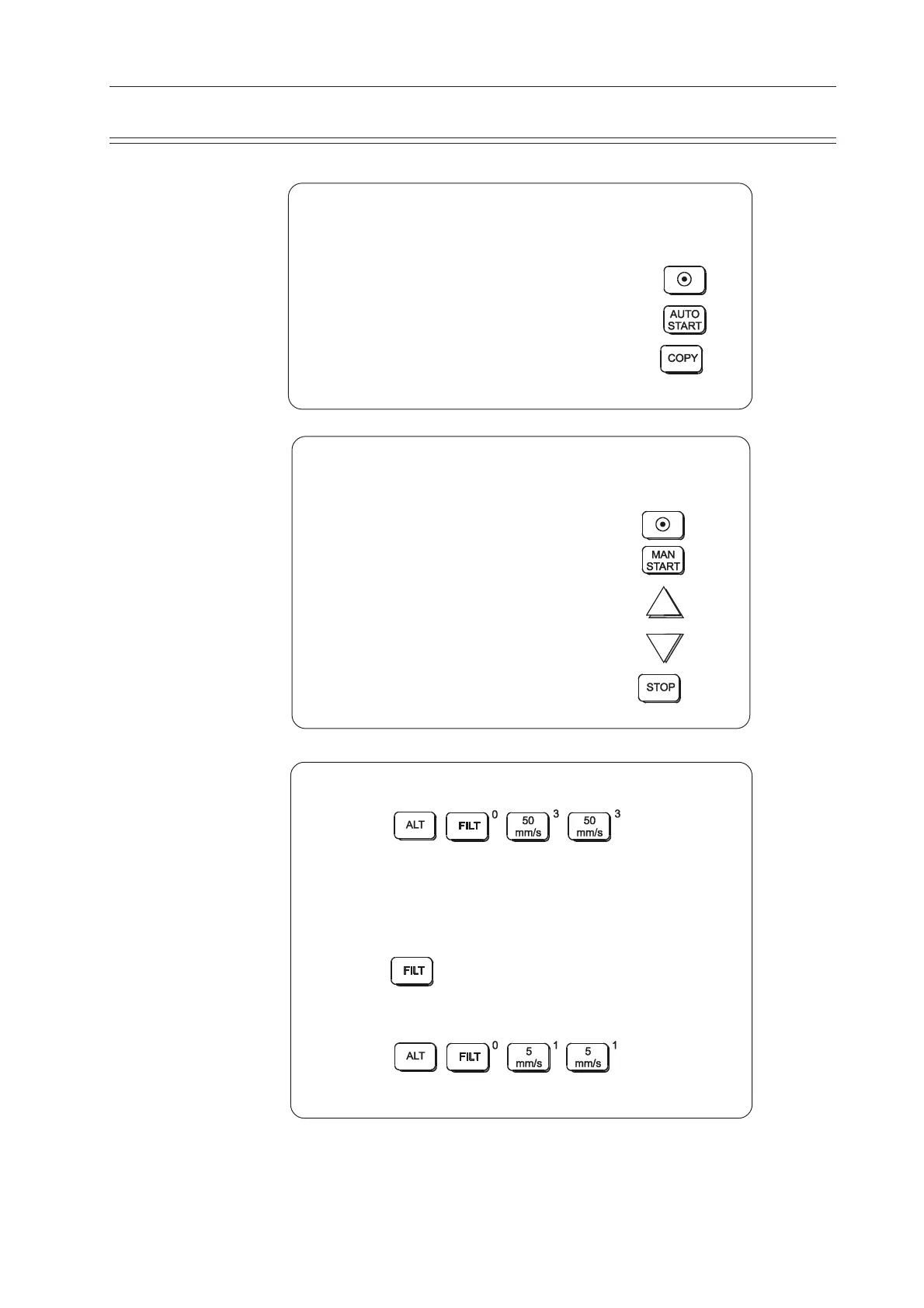

Automatic ECG Recording
• Prepare skin, hook up patient.
• Switch unit on, press ON
• Press AUTO to record and print.
• Press COPY for additional copies.
AT-2 Short Form Operating Instructions
Manual ECG Recording (Rhythm Strip)
• Prepare skin, hook up patient.
• Switch unit on, press ON
• Press MAN START
• Change lead group with
• Press STOP to stop the printout.
Electrode hook-up check
• Press for print-out of
electrode dc offsets.
Best results are obtained when the electrode voltage readings
(right column) are between ±50mV.
Filter On/Off
• Press to switch the (Myogram) filter On / Off.
System Configuration
• Press to print system
settings.
