Schiller AT-2 - Automatic Mode (ECG) Settings

Page 1.18
SCHILLER AT-2 6-Channel ECG Unit
SERVICE HANDBOOK Issue 2.1 November 1998
Chapter 1
Operating Elements
Automatic Mode (ECG) Settings
Two separate Auto formats can be defined for the AT-2. When defining auto format 1 the key
sequence
ALT - 1
precedes the setting. When defining auto format 2 the key sequence
ALT - 2
precedes the setting.

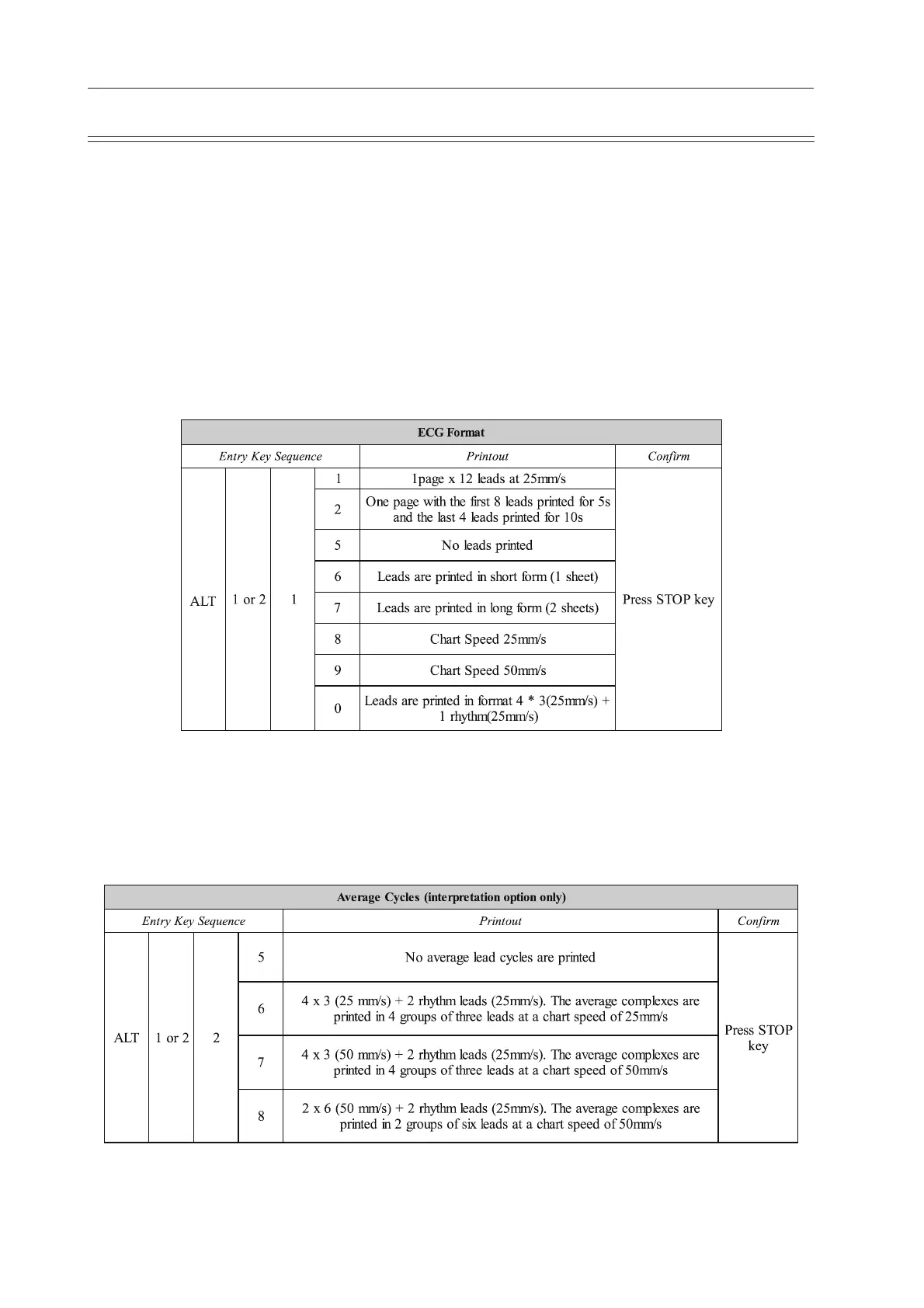

The automatic mode formats are detailed on the following pages. The ECG format is set as
follows:
Average Cycles
The Average cycles are defined as follows:
Note: Lead selection for the rhythm lead(s) are defined on page 21
