Page 1.6
SCHILLER AT-2 6-Channel ECG Unit
SERVICE HANDBOOK Issue 2.1 November 1998
Chapter 1
Operating Elements

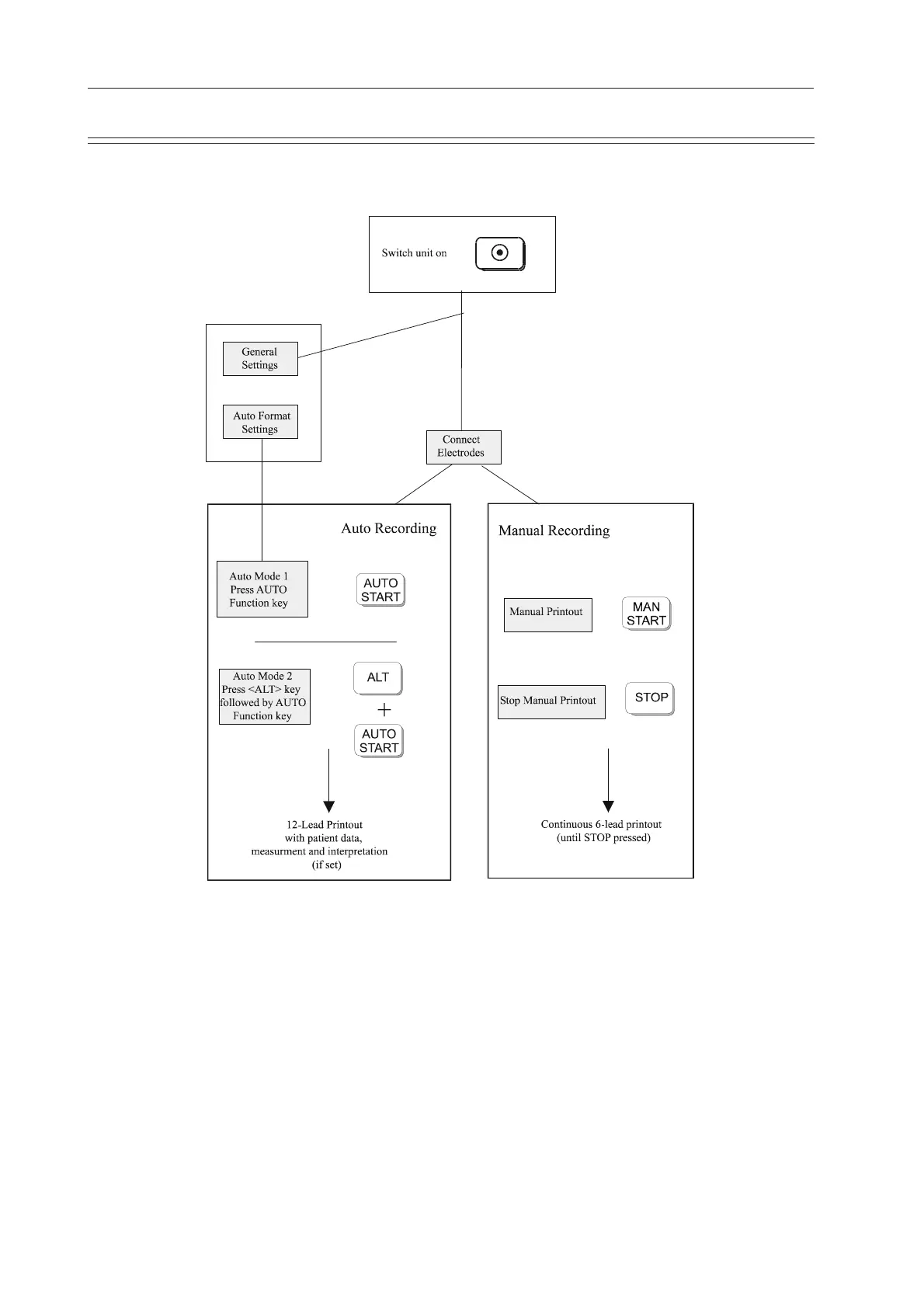

Modes of Operation
Automatic Mode
Automatic Mode provides a printout giving 10 seconds of ECG recording of all 12 leads with a
choice of 2 different formats.
The following can be programmed freely for each of the 2 formats before recording:
Lead Format
Chart Speed
With the optional interpretation program installed it is also possible to select the
measurement table, average cycles with optional markings and interpretation statements for
the printout.
For further information see paragraph `Settings for Automatic Mode`.
