SCHILLER AT-2 6-Channel ECG Unit
SERVICE HANDBOOK Issue 2.1 November 1998
Chapter 1
Operating Elements
Settings (cont.)
Defining Lead Sequence & Printout

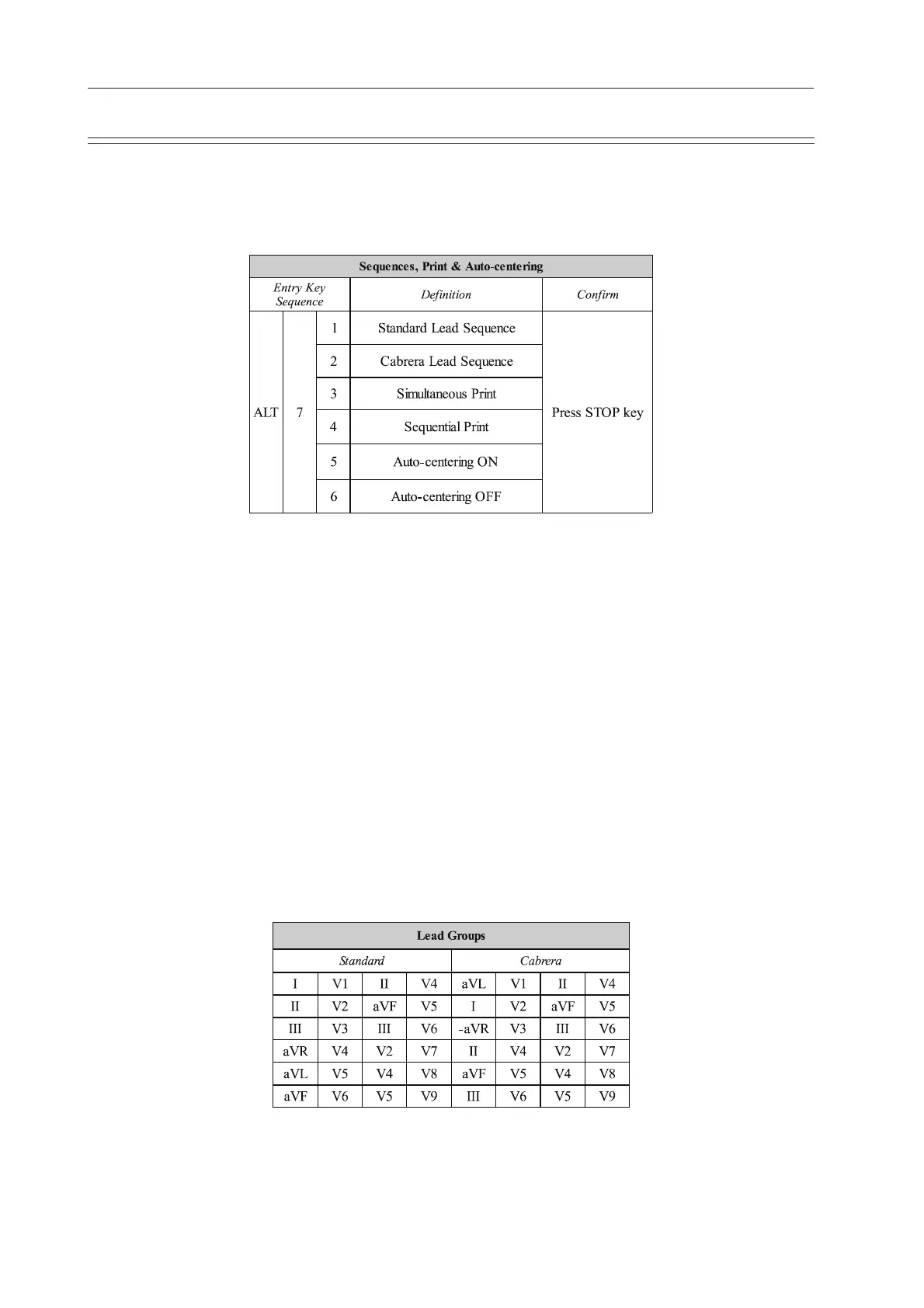

The required settings can be selected as follows:
Confirm the selection by pressing the STOP key
STOP
The selectable printout forms are:
Simultaneous All ECG leads are printed in the same time segment (in
automatic mode only).
Sequential Each group is a contiguous time segment of
approximately 2.5 or 5 seconds (in automatic mode
only).
Auto-Centering ON All ECG traces are centred dynamically for optimal use
of paper width.
Auto-Centering OFF ECG traces are set to a fixed baseline position and may
possibly overlap.
The Standard and Cabrera lead groups available for the AT-2 are:
To Next Page
