Page 1.21
Chapter 1
Operating Elements
SCHILLER AT-2 6-Channel ECG Unit
SERVICE HANDBOOK Issue 2.1 November 1998
Automatic Mode (ECG) Settings (cont.)

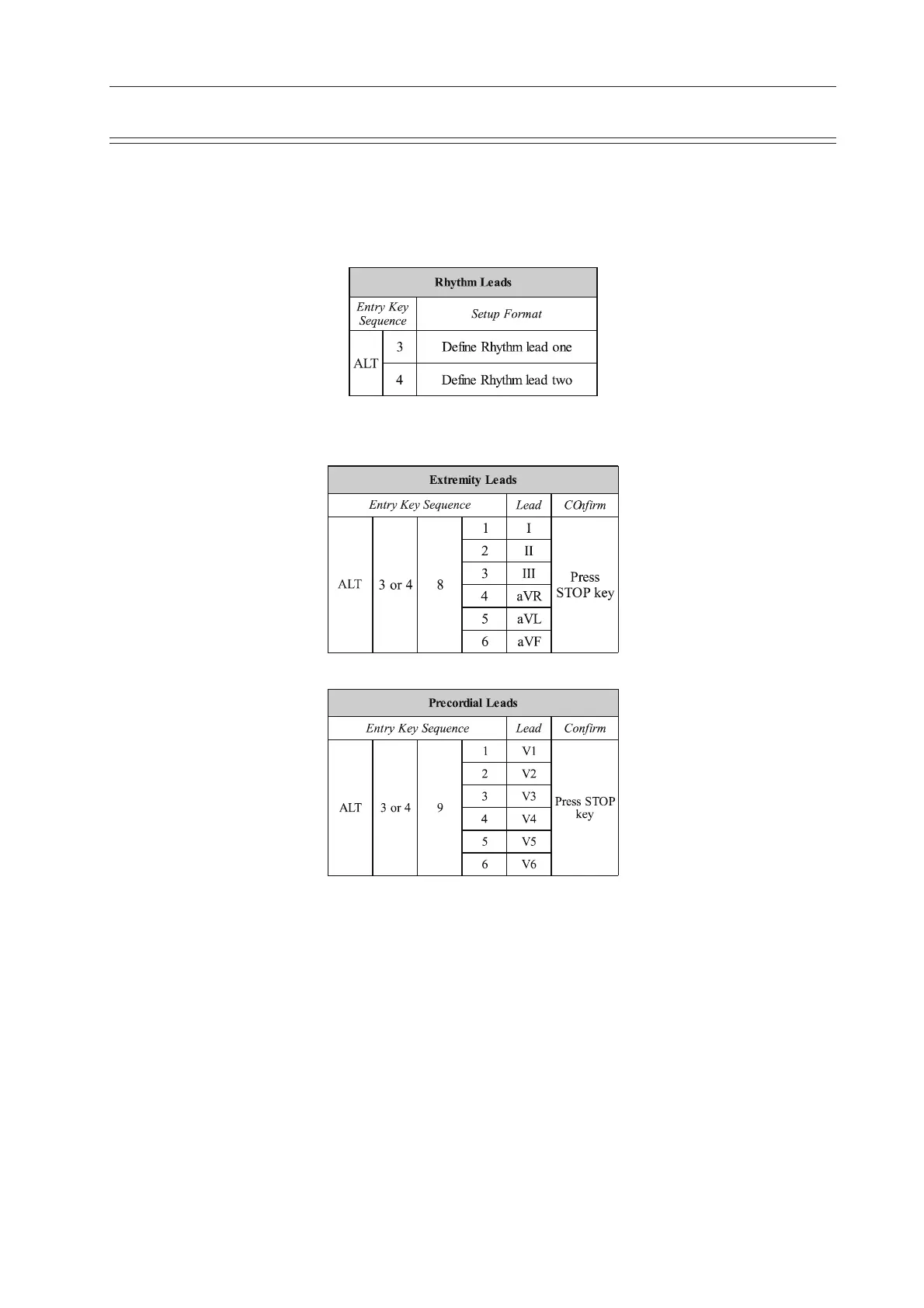

Selecting Rhythm Leads
The rhythm leads are printed out as defined. Two separate rhythm leads can be selected. The
following formats can be set:
The 2 rhythm leads are defined as follows:
Confirm the selection by pressing the STOP key
STOP
