Schiller AT-2plus - Modes of Operation

Page 1.8
SCHILLER AT-2plus 6-Channel ECG Unit
SERVICE HANDBOOK Issue d May 2002
Chapter 1
Operating Elements

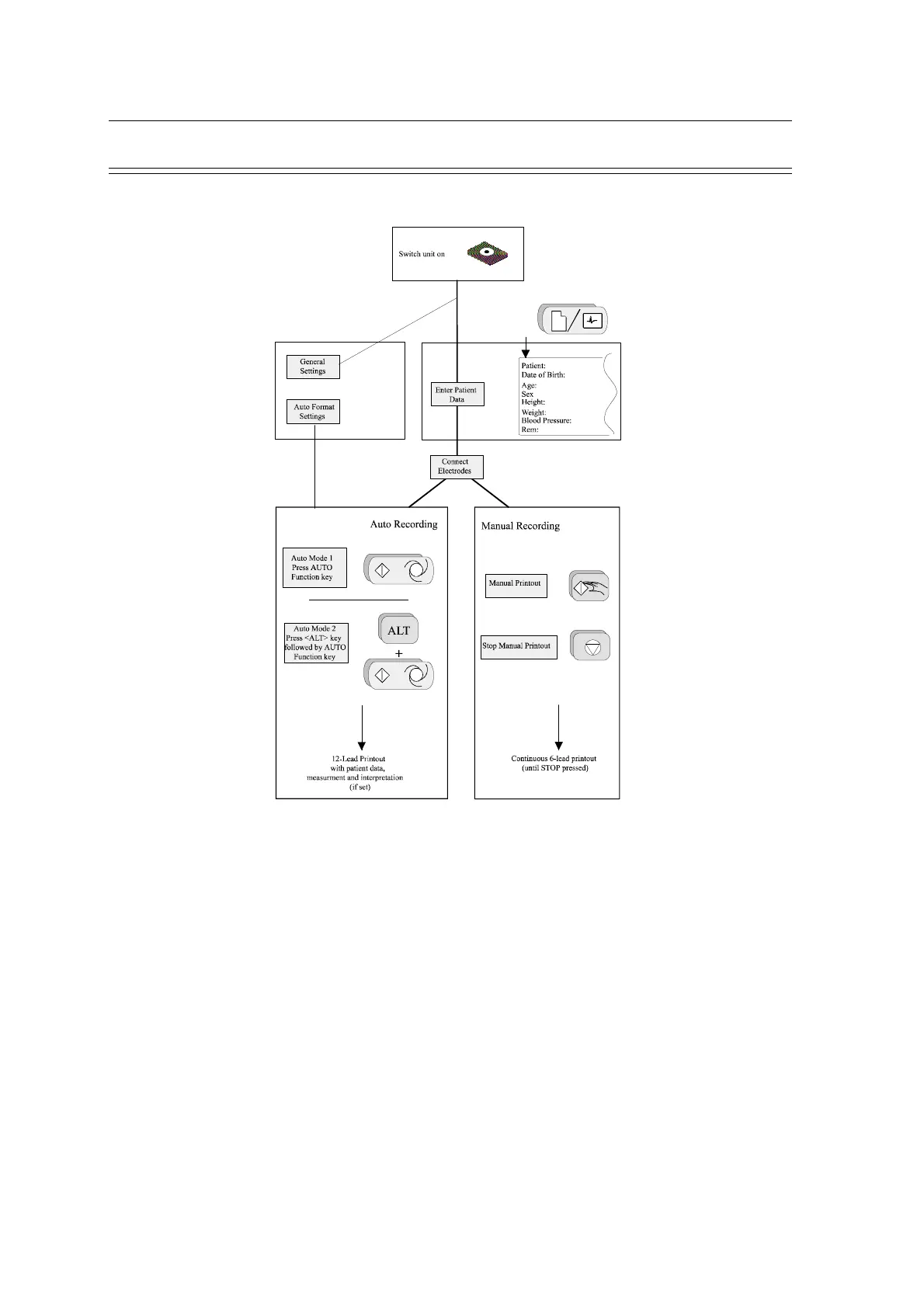

Modes of Operation
Automatic Mode
Automatic Mode provides a printout giving 10 seconds of ECG recording of all 12 leads with a
choice of 2 different formats.
Lead format and chart speed can be programmed freely for each of the 2 formats before recording.
With the optional interpretation program installed it is also possible to select the measurement
table, average cycles with optional markings and interpretation statements for the printout.
For further information see paragraph `Settings for Automatic Mode`.
Manual Mode
Manual Mode provides a real time printout of 6 leads that are selected and indicated on the
screen.
The following can be freely selected before or during recording:
• Lead Group • Chart Speed
• Sensitivity • Myogram Filter
For further information see paragraph `ECG Recording in Manual Mode` following.
