Page 1.2
SCHILLER AT-2plus 6-Channel ECG Unit
SERVICE HANDBOOK Issue d May 2002
Chapter 1
Operating Elements
Introduction
The CARDIOVIT AT-2plus is a 6-channel ECG recorder with all (12) ECG signals simultaneously
processed to provide instant ECG recordings. Two automatic recording modes can be individually
preset to enable one button ECG recording of preferred print formats.
The AT-2plus includes the following features:
• Low weight and compact dimensions
• Large A4 size printout from integrated quality thermal printer
• Built-in rechargeable battery for mains-independent use - 4hrs normal use or 300 printouts
on one battery charge
• Large, clear LCD for ECG preview prior to printing
• Simple one key operation for main functions
• Automatic or manual recording modes
• Selectable printing formats
• ECG memory for easy copying
• Interpretation program option (including measurements) for children and adults
• Alphanumeric keyboard for patient data entry and clinical comments

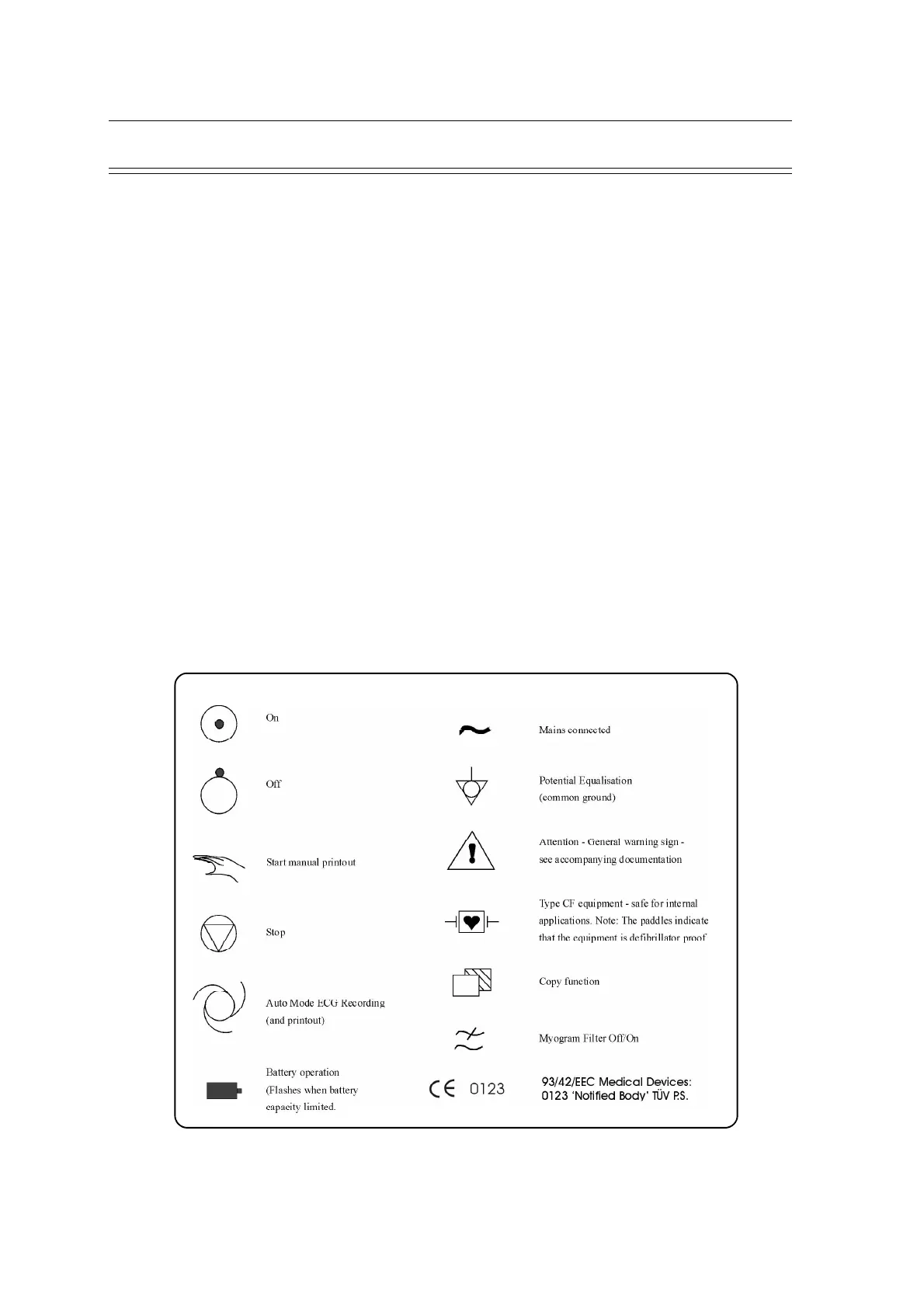

List of Symbols
