The Schlage AD-200/AD-201 is an off-line electronic lock in the AD-Series product line.
The Schlage AD-201 is a FIPS-201-1 certied off-line electronic lock.
• May be powered by batteries or connected to external power using a UL294 or
ULCS318/ULCS319 listed power supply capable of sourcing at least 250 mA @ 12 or
24 VDC. See Batteries on page 16, or External power supply on page 17 for more
information.
• Outside lever is normally locked.
• Inside lever always allows egress.
• The lock maintains an audit trail of events.
• Congured using the Schlage Utility Software (SUS).

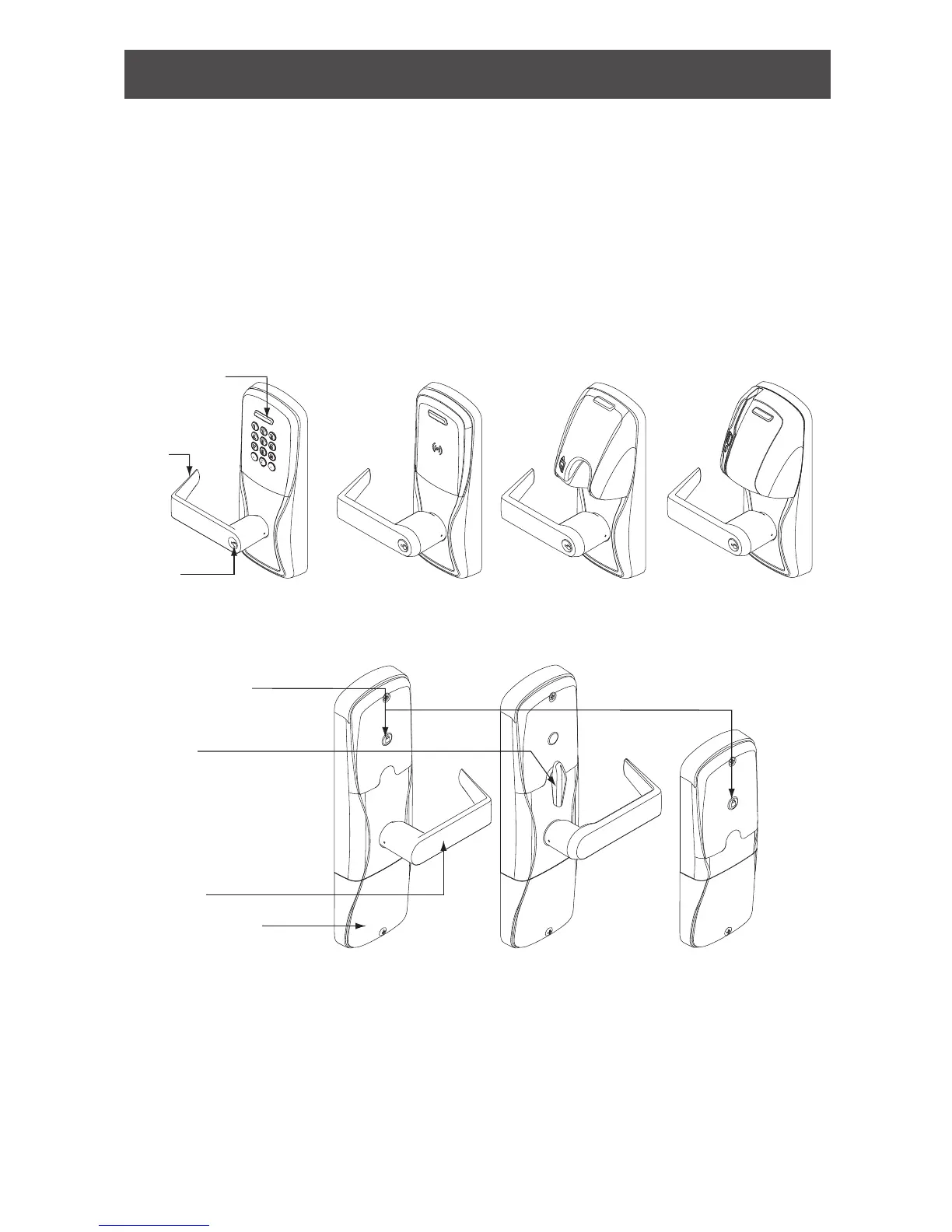

Outside
Schlage Button
Outside
Lever
Keyway
Inside
Optional
Inside Push Button
(IPB)
Thumbturn
Inside Lever
Battery Compartment
Keypad Multi-Tech Reader Mag Card
(Insert) Reader
Mag Card
(Swipe) Reader
AD-200-993AD-200-CY
AD-200-MS
AD-200-MD
Additional AD-200 reader options: Mag + Keypad, Multi-Tech + Keypad
Note: Proximity card (PR, PRK) ONLY and Smart card (SM, SMK) ONLY readers have been discontinued and
replaced by the Multi-Tech (MT, MTK) readers that provide all the same funcionality as the original Proximity and
Smart card readers in a single credential reader.
The AD-201 reader is a FIPS-201-1 certied Multi-Tech + Keypad (FMK) reader.
