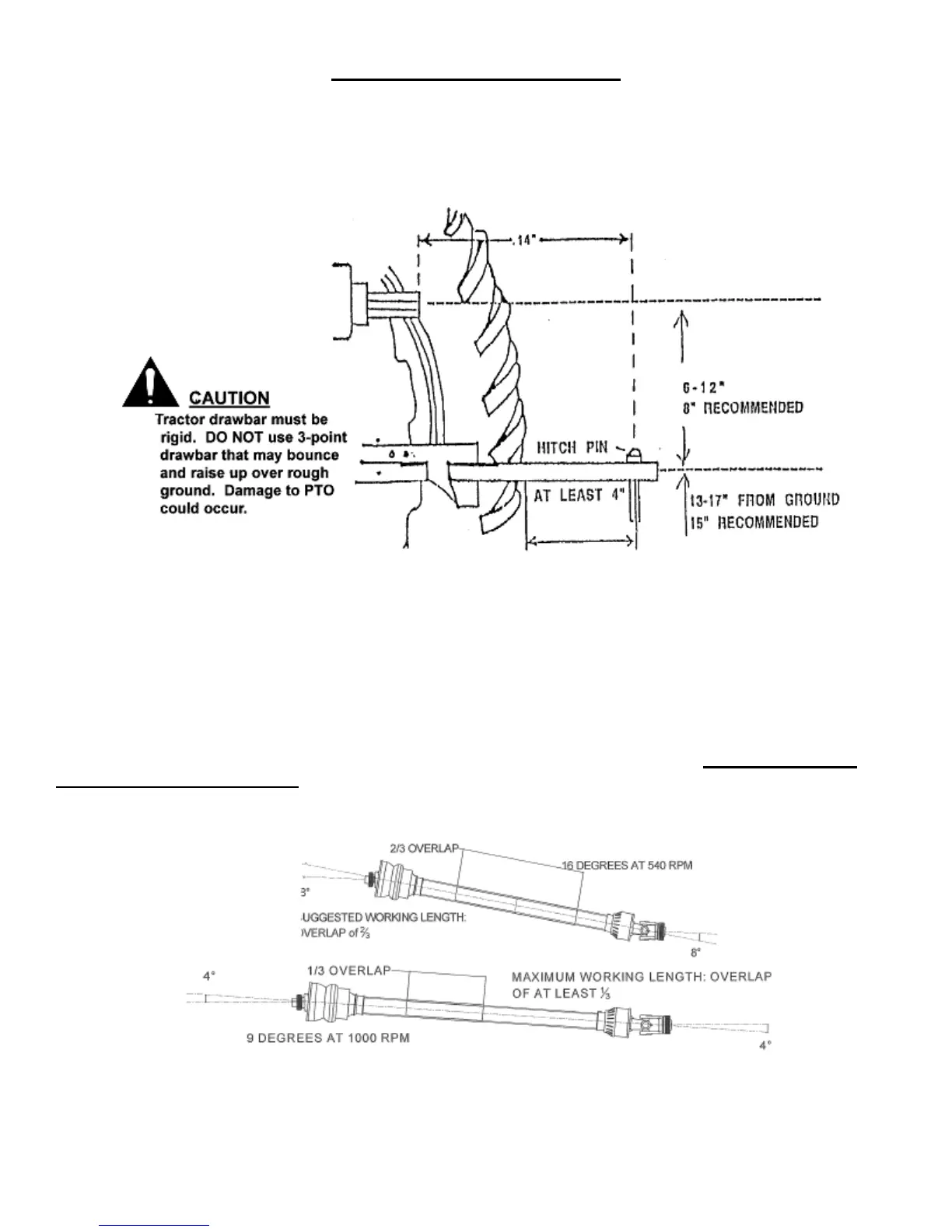

PREPARING THE TRACTOR
Mechanically driven Schuler feed wagons may only be used on tractors with 540 RPM PTO drives. No
limitations are placed on tractor horsepower; however, a minimum of 40 horsepower is recommended
for most applications.
The tractor PTO shaft must be centered directly above the tractor drawbar. Do not operate with tractor
drawbar set off to one side, damage to PTO U-joint could occur.
Do not turn tractor sharply while mixer/feeder is being towed and in operation. Maximum working
angle of U-joint is 16 degrees.
-8-
