Schuler HF255 - HF295 Hydraulic Floor Drive Diagram

- 21 -

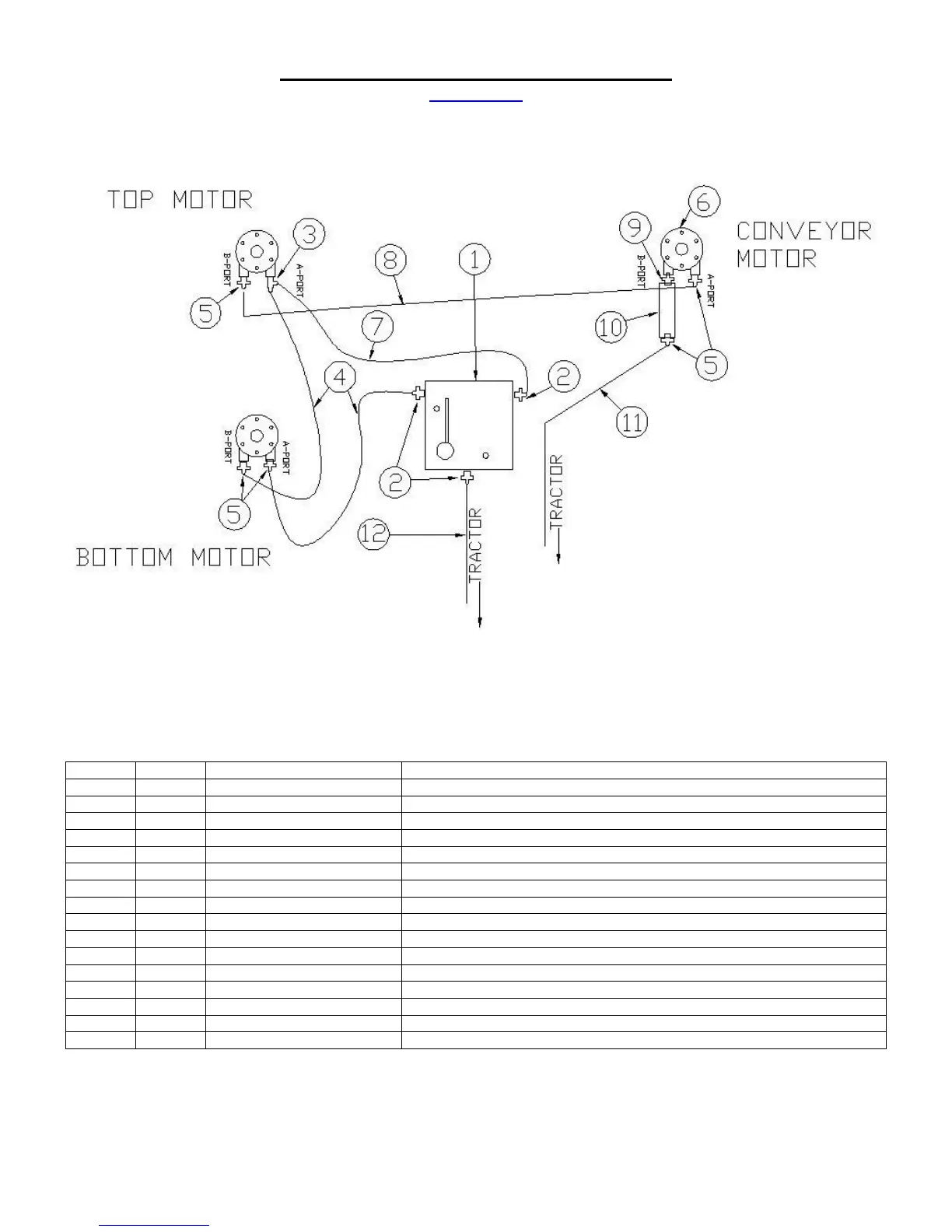

HF295 HYDRAULIC FLOOR DIAGRAM
HF-000140
FOR SERIAL NUMBERS UP TO 158
ITEM
QTY
PART NUMBER
DESCRIPTION
1
1
33L00-2000
FLOW CONTROL W/RELIEF VALVE, 16 GPM
2
2
33HT6400-10-12
7/8-14 37^ JIC TO 1 1/16-18 O-RING
3
1
33HT6804-10
7/8-14 JIC & 7/8-14 O-RING TO 7/8-14 JIC RUN TEE
4
2
33PH3-0300
5/8-4000 PSI * 30, 10FJX90 & 10FJX
5
5
33HT6400-10
7/8-14 37^ JIC TO 7/8-14 O-RING
6
2
33BAM-0000
HYD MOTOR, 18.0 CU IN
7
1
33PH3-0400
5/8-4000 PSI * 40, 10FJX90 & 10FJX
8
1
33PH3-1720
5/8-4000 PSI * 172, 10FJX90 & 10FJX
9
1
33HT6403-10
7/8-14 MALE O-RING TO 7/8-14 MALE O-RING NIPPLE
10
1
33L00-1016
CHECK VALVE 1 1/16-12 'O' RING 25 GPM
11
1
33PH3-2260
5/8-4000 PSI * 226, (2) 10FJX
12
1
33PH3-1480
5/8-4000 PSI * 148, 10FJX90 & 10FJX
13
1
33HT6801-10-12
7/8-14 JIC TO 1 1/16-12 O-RING 90 DEG ELBOW
14
1
33BAG-0000
HYD MOTOR, 11.9 CU IN
