Schuler HF255 - Rear Floor Apron Shaft and Tightener

- 32 -

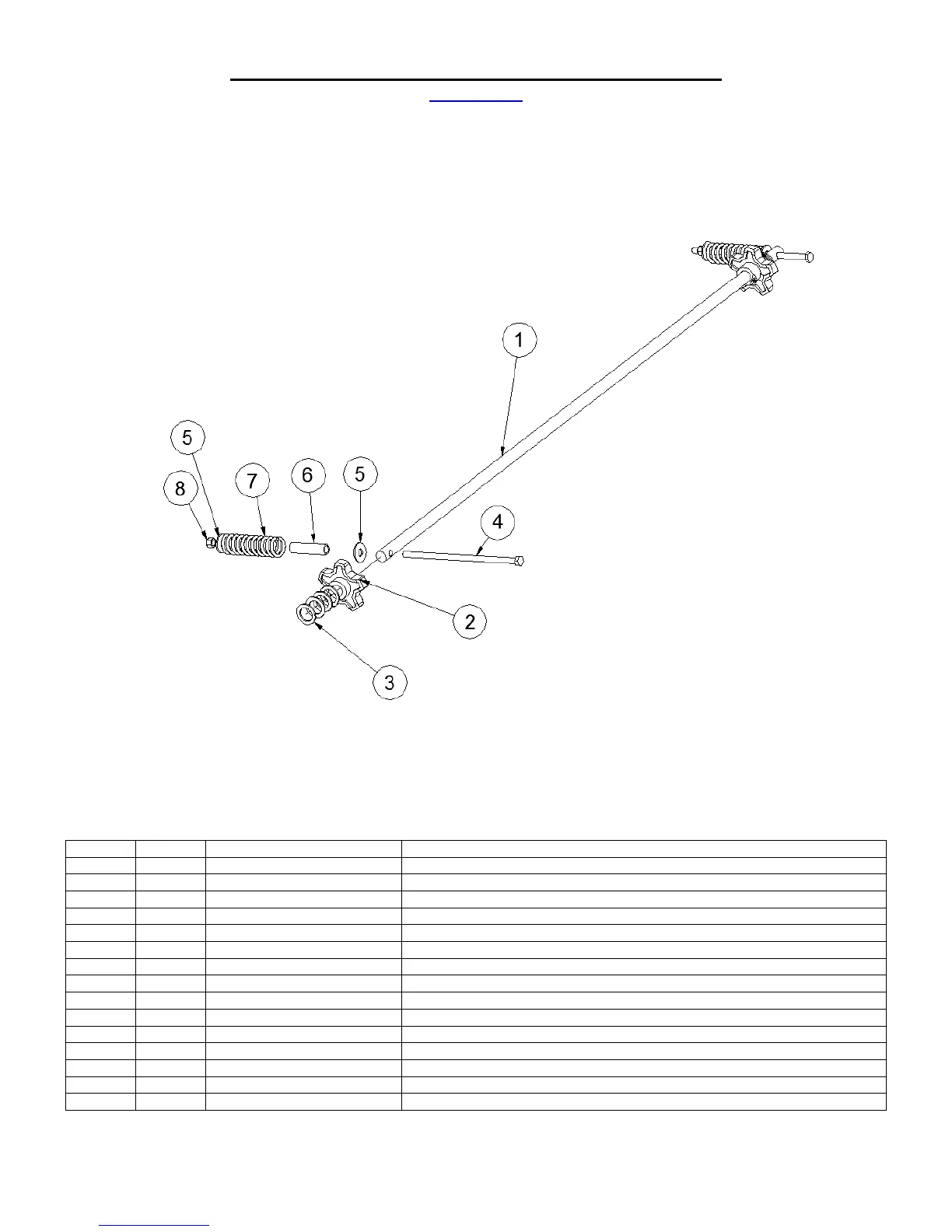

REAR FLOOR APRON SHAFT AND TIGHTENER
HF-000200
ITEM
QTY
PART NUMBER
DESCRIPTION
1
1
0-417245
SHAFT, APRON IDLER, 62 CENTERS, 1 HRR * 63 1/2 – HF255
1
0-260262
SHAFT, FLOOR APRON IDLER 1 1/4 CRR * 64 – HF295
2
2
16C15-0509
SPKT CAST, 5T, 1 1/32 B – HF255
2
16C15-0610
SPKT CAST, 6T, 1 9/32 B – HF295
3
8
72M18-0010
MACHINE BUSHING, 1 1/8 ID * 1 3/4 OD * 10 GA, ZP – HF255
8
72M20-0018
MACHINE BUSHING, 1 1/4 ID * 1 7/8 OD * 10 GA, ZP – HF295
4
2
70HC2-0896
1/2-13 * 12, GRD 2 ALL THREAD, ZP – HF255
2
70HC2-0898
1/2-13 * 14, GRD 2 ALL THREAD, ZP – HF295
5
4
72FH0-0100
5/8 FLAT WASHER, ZP
6
2
0-193150
SPACER TUBE, APRON TIGHTENER, 7/8 OD * 5/8 ID * 3 1/2
7
2
37C08-G050
SPRING COMPRESSION, 1 ID * 1 1/2 OD * 5 LONG
8
2
71UC2-0080
1/2-13 TOP LOCKNUT, ZP
