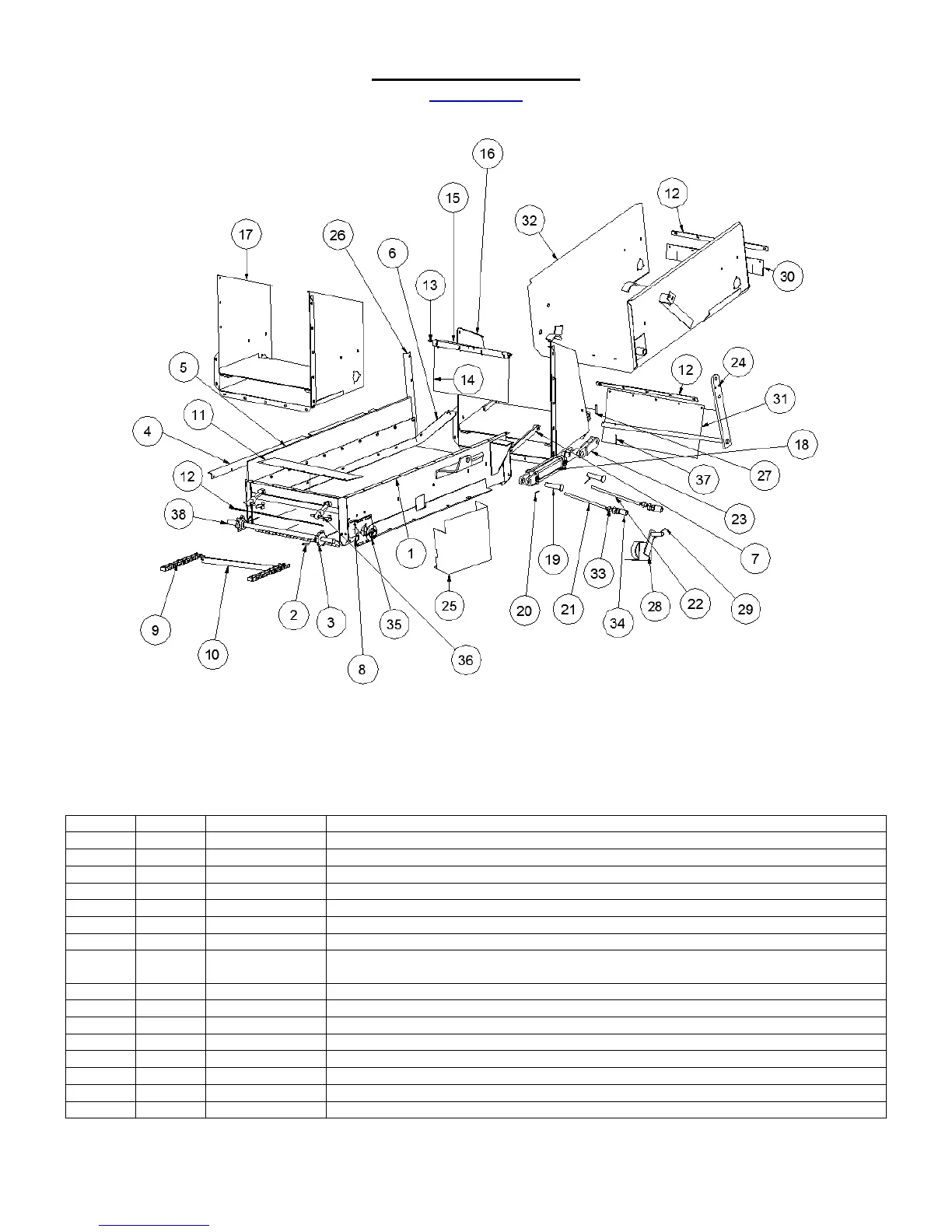

CROSS CONVEYOR
HF-000180
ITEMS 9 & 10 ARE A BREAKDOWN OF THE CHAIN COMPONENTS
FOR THE DIFFERENT LENGHT CONVEYORS
ITEM
QTY
PART NUMBER
DESCRIPTION
9
2
23D00-0010
D662 CHAIN LINK, INC 2 PINS, FOR 34” CONVEYOR
2
23D00-0010
D662 CHAIN LINK, INC 2 PINS, FOR 44” CONVEYOR
2
23D00-0010
D662 CHAIN LINK, INC 2 PINS, FOR 62” CONVEYOR
1
23D23-140G
D662 CON. CHAIN, 140 P, 23 ATT, PR INC 2 PINS W/GUSSET, FOR 34” CON.
1
23D23-140G
D662 CON. CHAIN, 140 P, 23 ATT, PR INC 2 PINS W/GUSSET, FOR 44” CON.
1.25
23D23-140G
D662 CON. CHAIN, 140 P, 23 ATT, PR INC 2 PINS W/GUSSET, FOR 62” CON.
1
23D16-099G
D662 CONVEYOR CHAIN, 99 P, 16 ATT, PR INC 2 PINS W/GUSSET, SHORT
MECH. DRIVEN STRAIGHT DISCHARGE EXTENSION
1
23D01-001G
D662 BOLT ATT HF255 RH, 2 P, 1 ATT, INC 2 PINS W/GUSSET (REPAIR LINK)
1
23D01-002G
D662 BOLT ATT HF255 LH, 2 P, 1 ATT, INC 2 PINS W/GUSSET (REPAIR LINK)
10
21
0-260110
CROSS CONVEYOR FLIGHT, 1 1/4 * 1 1/4 * 3/16 * 21 1/4, 34” CON.
23
0-260110
CROSS CONVEYOR FLIGHT, 1 1/4 * 1 1/4 * 3/16 * 21 1/4, 44” CON.
25
0-260110
CROSS CONVEYOR FLIGHT, 1 1/4 * 1 1/4 * 3/16 * 21 1/4, 62” CON.
