Schuler HF255 - Page 41

- 9 -

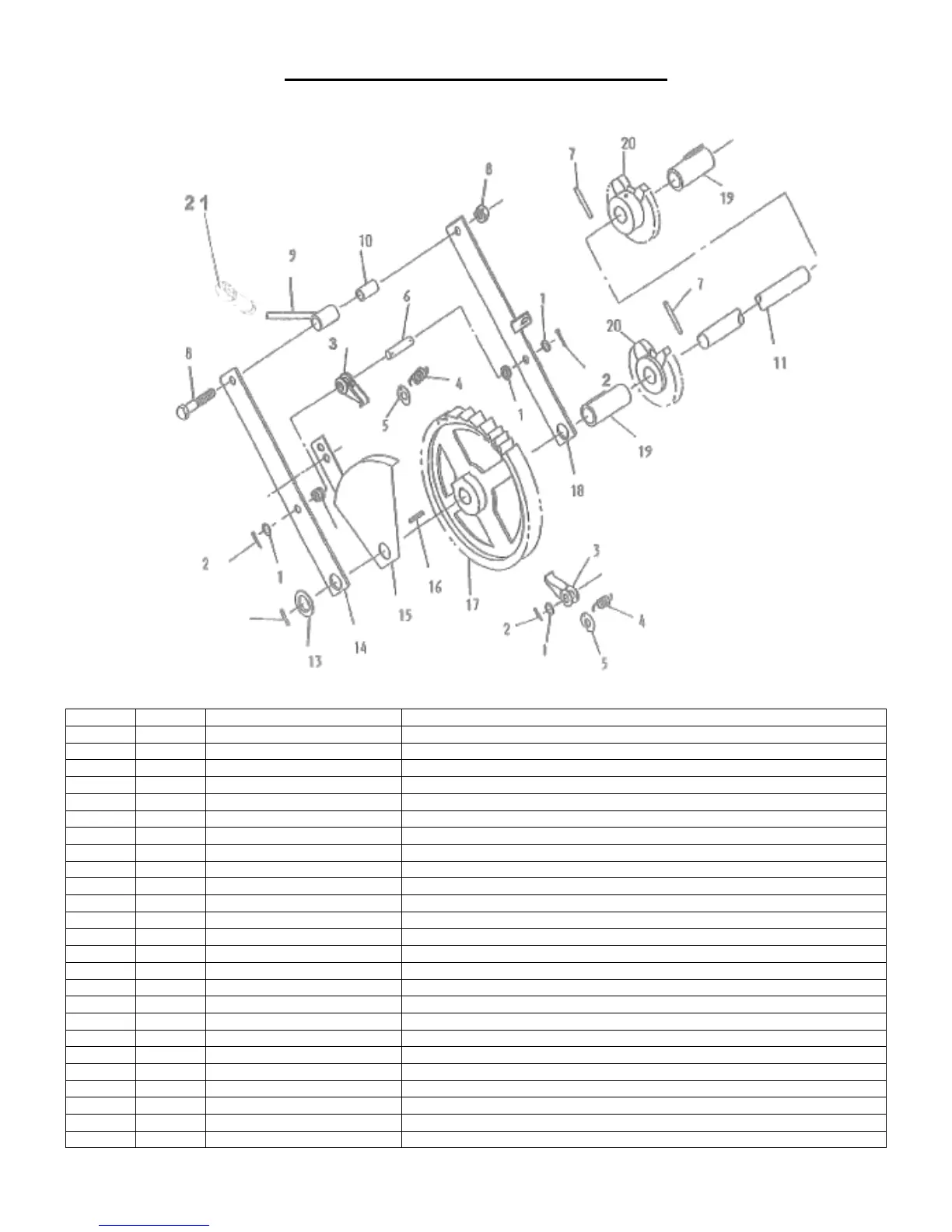

RATCHET AND APRON DRIVE HF255
HF-000090
ITEM
QTY
PART NUMBER
DESCRIPTION
1
10
72M12-0014
MACHINE BUSHING, 3/4 ID * 1 1/4 OD * 14 GA, ZP
2
3
73C00-0210
1/8 * 1 1/4 COTTER PIN STEEL, EXTENDED PRONG TAPER PT. ZP
3
2
16R10-RP06
RCHT PAWL, 3/4 B, 1 5/8 WIDE
4
2
37E06-H020
SPRING EXTENSION, 3/4 OD X 2 LONG
5
2
0-140101
CAM, RATCHET PAWL TIGHTENER, 10 GA * 2 OD * 3/4 ID
6
1
0-168001
PIN FOR RCHT PAWL, 3/4 CRR * 3 1/4
7
2
73S00-0718
7/16 * 2 1/4 SPIROL PIN, HBK
8
1
70HC2-1226
3/4-10 * 3 1/4 HHCS, GRD 2, ZP
1
71TC2-0120
3/4-10 TWA LOCKNUT, ZP
9
1
0-260280
RATCHET DRIVE LINK, 5/8 DIA * 20 W/BUSHING #170001
10
1
17950-0608
BRONZE BUSHING, 1 OD * 3/4 ID * 1 3/4
11
1
0-260260
SHAFT, APRON DRIVE, 54 1/2 CENTERS, 1 1/4 CRR * 70
12
1
73E00-0416
1/4 * 2 SPRING PIN, ZP
13
1
72M18-0010
MACHINE BUSHING, 1 1/8 ID * 1 3/4 OD * 10 GA, ZP
14
1
0-166002
ARM, OUTER, RATCHET DRIVE, 1/4 * 2 *29
15
1
0-169000
CAM, RCHT SPEED CONTROL, FOR 1 1/4 APRON DRIVE SHAFT
16
1
0-130208
KEY, 5/16 BRASS * 1 3/8
17
1
16R12-5510
RCHT WHEEL, 53T, 1 1/4 B, 1/4 & 5/16 KW
18
1
0-167001
ARM, INNER, RACHET DRIVE, (2) 3/4 PH, 1/4 * 2 * 29
19
2
16B00-0410
BRG CAST SLEEVE, 1 9/32 B, 4 LONG
20
2
16C20-0511
SPKT CAST 5T, 1 1/4 B, 7/16 PH
21
1
17850-0500
ROD END BRG, 5/8-18 THREAD W/ZERK
