SCHUNK ROTA NC plus 2 Series User Manual

Technical data
18
02.00|ROTA NC plus 2 / ROTA NCF plus 2 |en
Chuck data for rapid chuck jaw quick change:
Caution! The maximum speed of rotation and the clamping force
can deviate from the default values. These are engraved on the
chuck body and indicated in a customer drawing.
Clamping force / speed diagrams
Clamping force/RPM curves have been determined by using hard
jaws. In the determination process, the maximum actuating force
was applied and the jaws were set flush with the outer diameter of
the chuck.
The chuck is in perfect condition and lubricated with SCHUNK
LINOMAX special grease.
If one or more of these prerequisites is modified, the graphs will
no longer be valid.
Clamping force RPM graphs for rapid chuck jaw quick change:
are determined separately and announced to the customer.

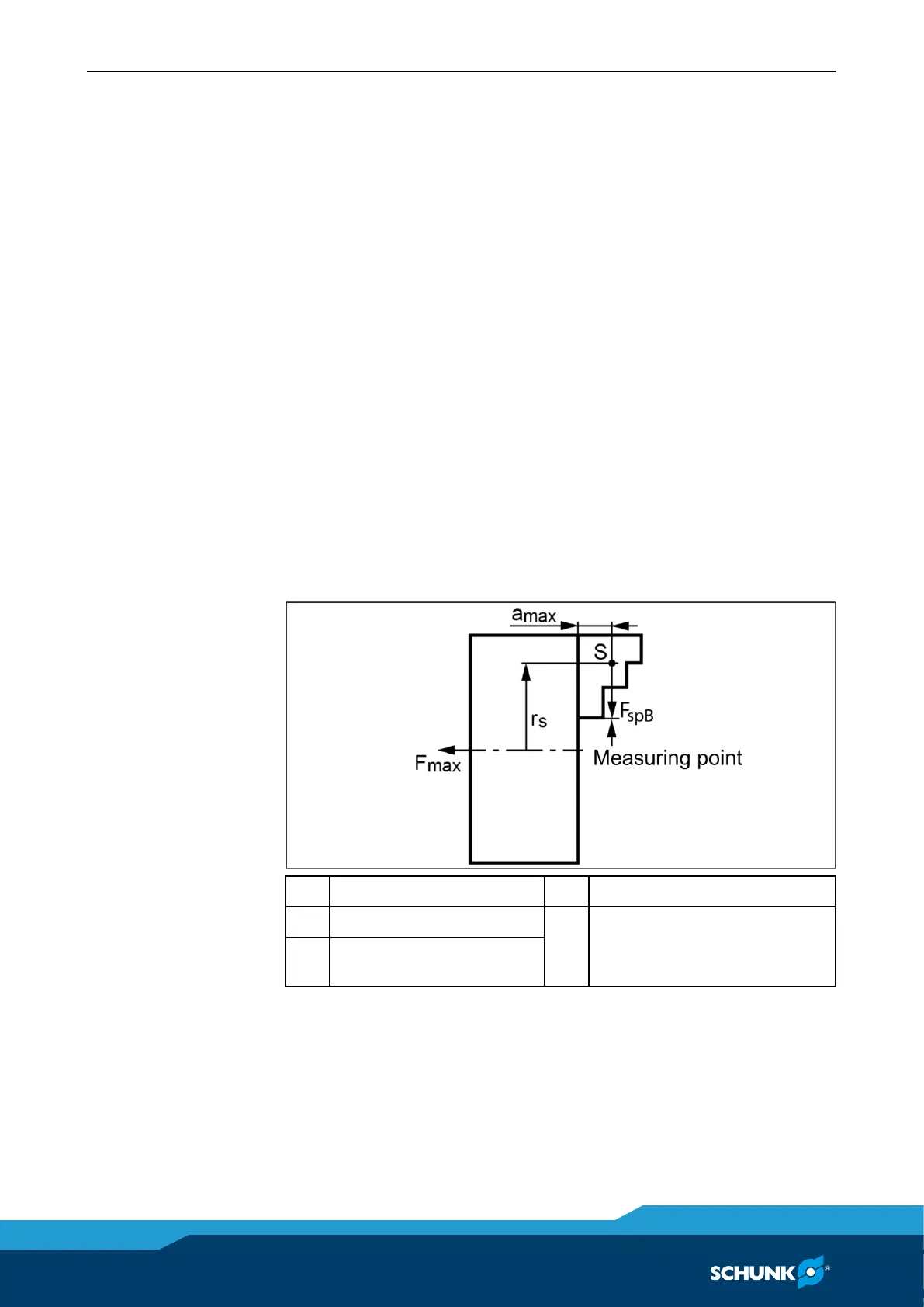

Chuck setup for clamping force/RPM graph
F/3
Clamping force per jaw
S
Center of gravity
r
s
Center of gravity radius
a
max
Max. jaw eccentricity of
center of gravity in axial
direction
F
max
Max. actuating force
