- 13 -

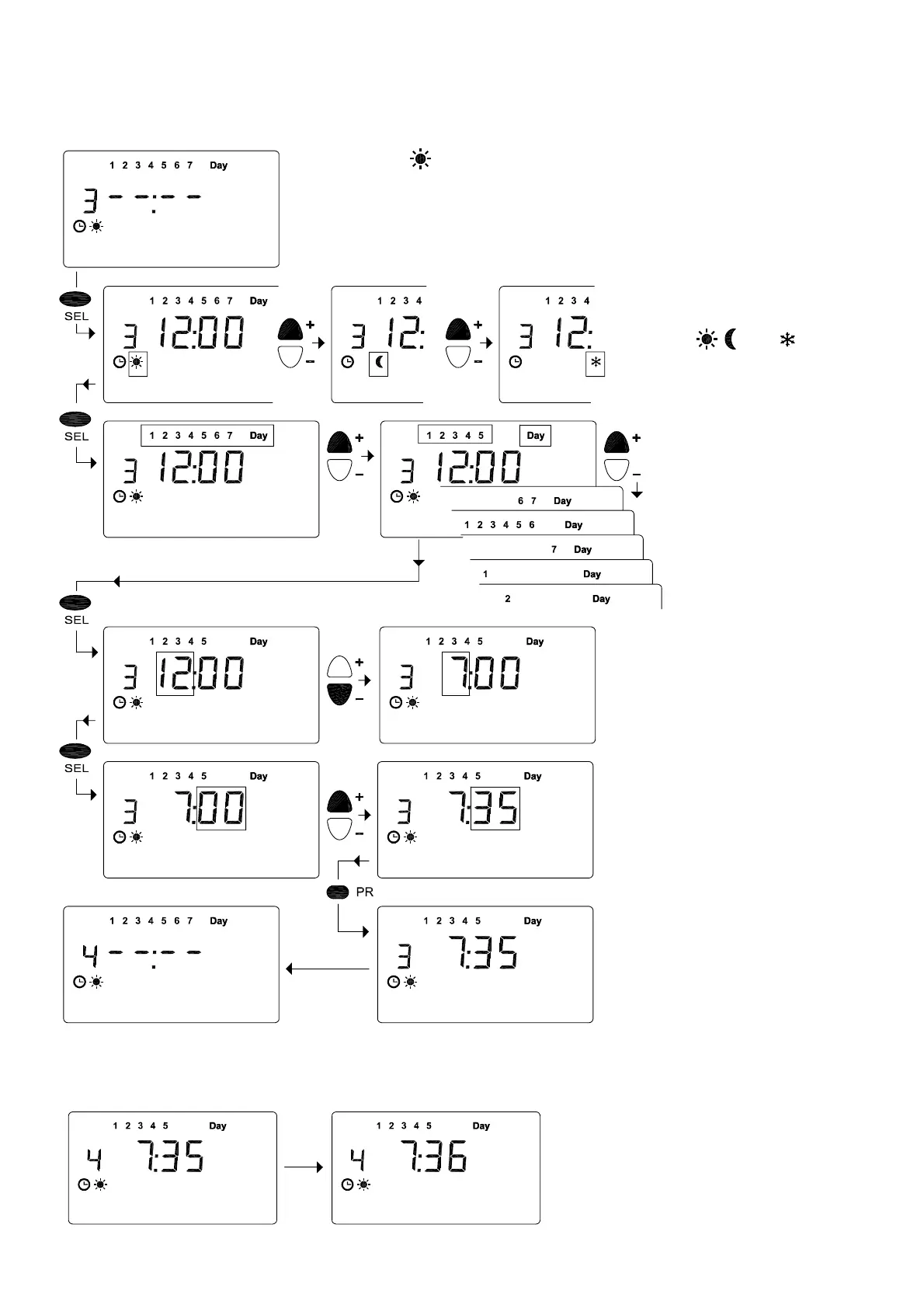

4.4.5 How to program the switching points
In this example we program the following circumstance: The day
temperature should start every morning at 7:35 from Monday
till Friday. First of all we are searching for a free switching point by
using the PR button. Then we press the SEL button to modify the
new data. The same procedure can be used for existing switching
points.
At first the type of
temperature starts to blink.
Now you are able to chose
between
and
button
by using the
+/-
buttons.
Now you can select the
day program with the
SEL button. Then the
whole week appears:
1234567
Pressing
+/-
you are
able to select different
day groups or only
single days
(1=Monday).
Afterwards you can modify the
hour by pushing the SEL
button (12). The requested
time (7) can be achieved with
+/-
.
After that you select the
minutes with SEL (00). The
requested time (35) can be
adjusted with
+/-
.
Finally the PR button has to
be pushed. The SET
symbol starts to blink shortly,
while the data is being saved.
Afterwards the display
switches to the next free
switching point.
It is not possible to program two different switching points with the same time parameter. In
case of a saving mistake of two switching points for the same time, the time of the last
programmed point will be corrected by one minute.
In this case a new switching
point was programmed with a
time parameter of 7:35.
Unfortunately this time
parameter was used already in
switching point 3. Thus the time
changes automatically to 7:36.
