- 17 -
5.2 Set up the parameters in the display
Parameter set up is a protected function. A special process must be carried out to
enable modification. In basic mode parameters can be displayed by DISP and SEL
buttons but modification is not allowed.

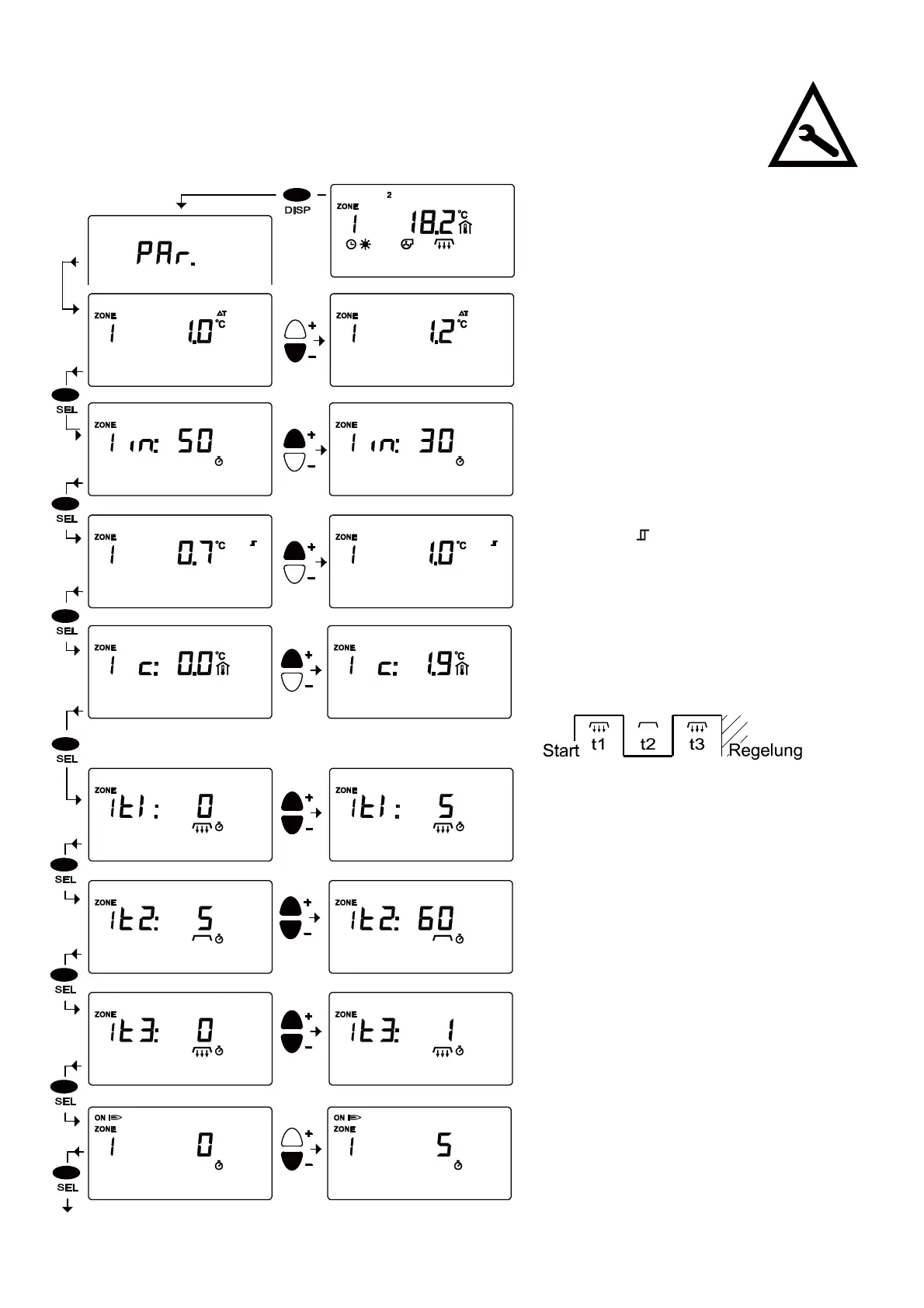

To set up the parameters please hold
the DISP button for circa 3 seconds.
The „Par” symbol appears for a short
time. The parameters can be
selected with the SEL button.
Hysteresis
, can be activated by
0.2 … 2.0°C
Sensor correction: if the sensor could
not be mounted at an optimal place,
the measured temperature can be
revised: -9.9 … +9.9°C
t1: After starting the heater, it runs
with full power until it stops at the
programmed time, in this case: 0…5
minute.
t2: For the displayed time, the heater
stops completely (5..60 Sec). it only
appears, if the t1 doesn’t equal zero.
Min. turn on time of the heater
(0...15 min)
Ability of a restart:
t3: The heater starts off with full load
for 1 minute, afterwards the controller
switches to the regular mode (0: off).
It does not appear unless the two-
stage control is selected.
Integration band:
Modulating: 1,5 … 9,9°C
2-stage: 0,5 … 3,0°C
single-stage: --.--
Integration time: 10 … 99 minutes
(only in two-stage/modulation mode),
in single-stage mode, or in off-state
(--.--) appears.
