4 Operation
4.1 Basic knowledge of operation
By starting the ThermoControl Plus M with the I/O -button an automatic display-test is activated.
The controller starts up with the factory-made standard-program. Afterwards the display
switches to the base-program, which shows all the important operational information.
4.1.1 Further readable information

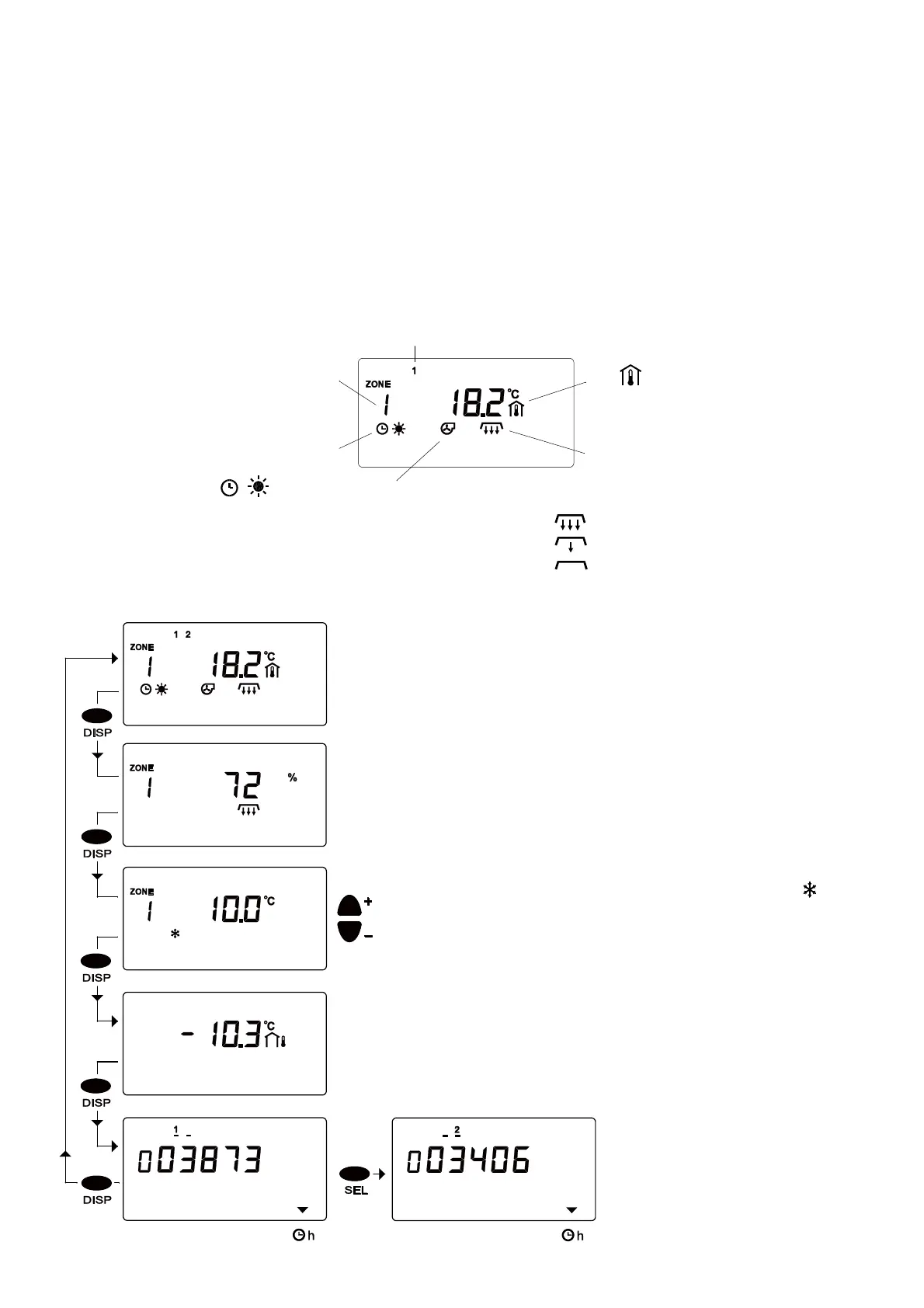

Actual control mode, in
this case:
day
mode
Present status of the heater:
full load or modulation
partial load
heater is turned off
Measured temperature
in the room/zone
(18.2°C)
The extract fan is
working (optional)
Recording device of the
chosen control circuit
This number informs: which relay output
and which sensor inputs are used in the
specific control circuit.
Display of the outside temperature (only in case of an
outdoor temperature sensor ATF).
The main/base display gives all important operating
data, further information can be received by pushing
the DISP button.
Value of the entered anti-freezing temperature
. The
displayed value can be changed by the
+/-
buttons.
Range of setting: +3… +20°C
Working-time counter: At 2-stage/modulating control
the circuit time of both stages (1,2) will be shown.
Push the SEL button to
switch between the stages.
The shown data cannot be
deleted, after 199999 hours
the display switches back to
zero.
Display of the actual heating power in %
