Date Code 20210715 SEL-2890 Instruction Manual

Introduction & Specifications

Applications

1.3

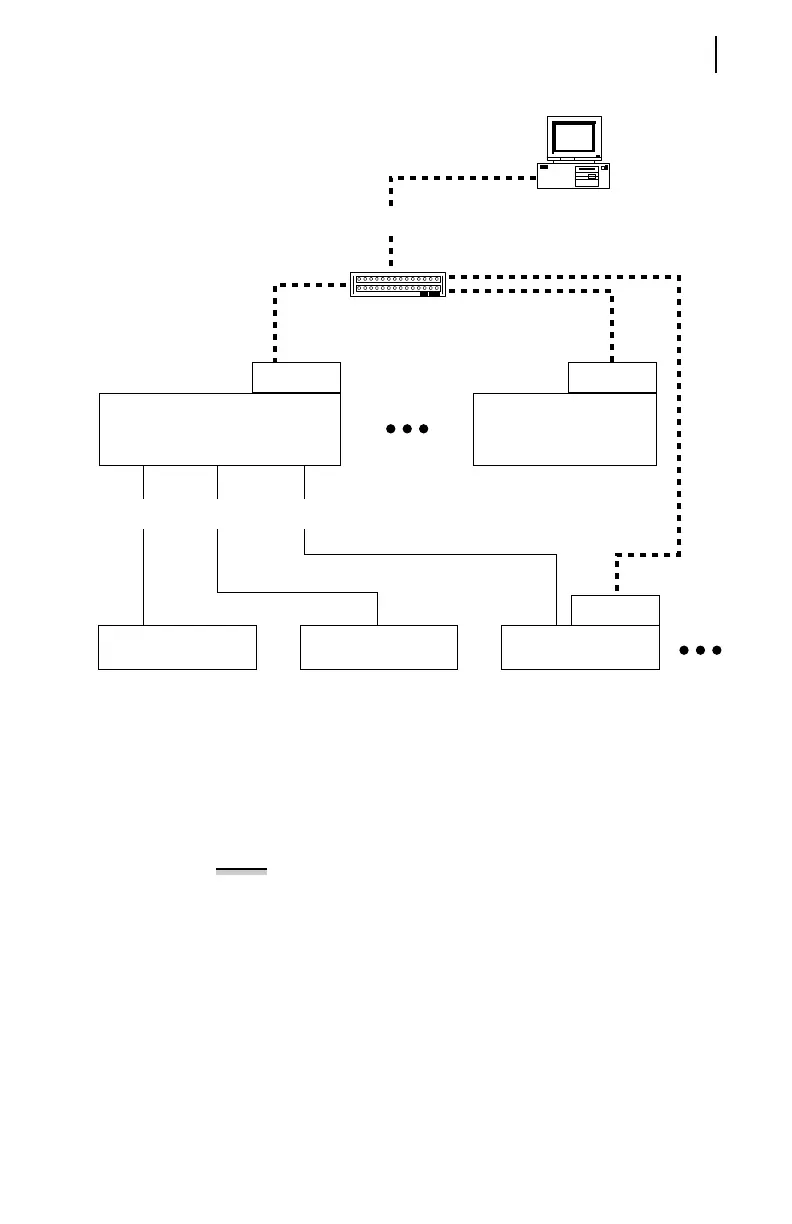

Figure 1.1 Example Ethernet Substation Network

HTTP Server

The SEL-2890 provides an easy to use HTTP interface to SEL relays and SEL

communications processors. The three HTTP options are Custom, SEL, User, and Off.

When issuing settings to the transceiver, select one of these four options.

NOTE: A Telnet session has higher priority than the HTTP

interface. The following message will be sent to the web

browser if it is connected when a Telnet session is active:

“Unable to access device due to Telnet session from

IP: xxx.xxx.xxx.xxx.”

Engineering

Workstation

SEL-2890

SEL Relays

Hub

SEL Relay Non-SEL IED SEL Relay

SEL-2890

SEL-2020/SEL-2030

Communications Processor

EIA-232 EIA-232 EIA-232

Ethernet
