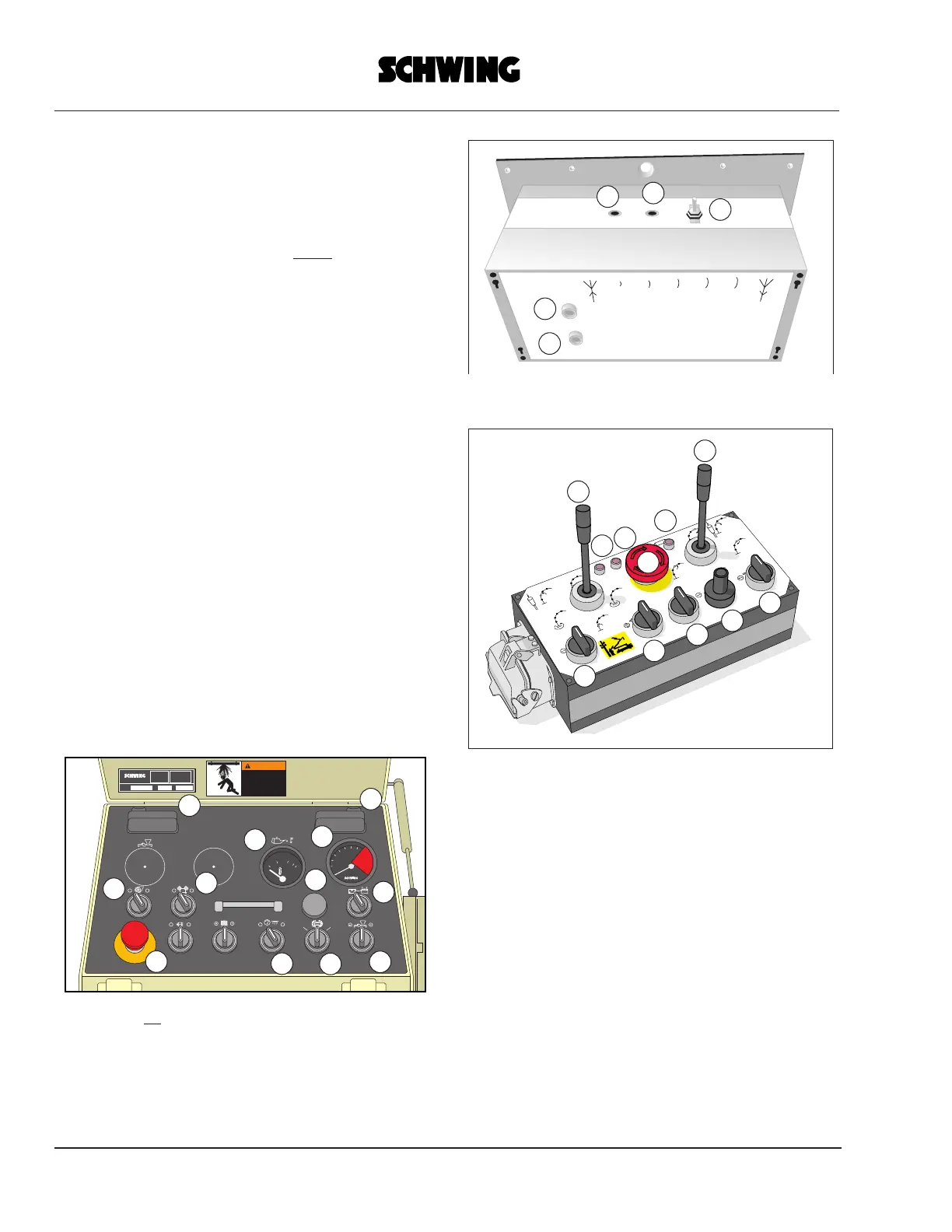

Service Manual
Remote Control Cable/Radio
562
9. Commissioning
Preparations
1. Switch all controls on the machine and on the
transmitter to “0” or “OFF.”
2. Switch truck engine off when warm and with PTO
switched on.
NOTE: After a “remote start”, the engine should
run smoothly immediately. The remote control can
give no cold start assistance.
3. Disconnect remote control cable from control
panel and replace with cable: receiver - control
panel.
4. Check whether power supply cable, antenna cable,
and connecting cable are connected to the receiver.
5. Check whether antennas for transmitter and
receiver are mounted. If not, install.
Ready for operation
1. Switch on “ignition”.
2. Insert charged battery into the transmitter and
spare battery into charger.
NOTE! Make sure that the charger is inserted with
the correct polarity
3. Set selector switch on machine control panel to
“remote control”.
4. Unlock all EMERGENCY OFF buttons on the
machine by turning them to the right.
5. Switch on the receiver using the toggle switch.
LED lights up: RED. The receiver is waiting for a
control signal.
6. Unlock EMERGENCY OFF button of transmitter
by turning to the right.
7. Set selection switch to “ON”. This causes the
following:
a) The power supply of the transmitter is
switched on. The red LED lights up for a short
time and extinguishes if the battery volt-
age is correct. The rhythmical flashing of the LED
indicates that a radio telegram is being
transmitted.
b) The receiver is switched to “READY”.
The display of the two-colour LED changes to
GREEN.
If the two-colour LED continues to indi-
cate “RED”, the receiver is at FAULT.
NOTE: The fault may be caused by an
external transmitter in the immediate vicinity.
The equipment is ready for operation.
