Service Manual
Remote Control Cable/Radio
561

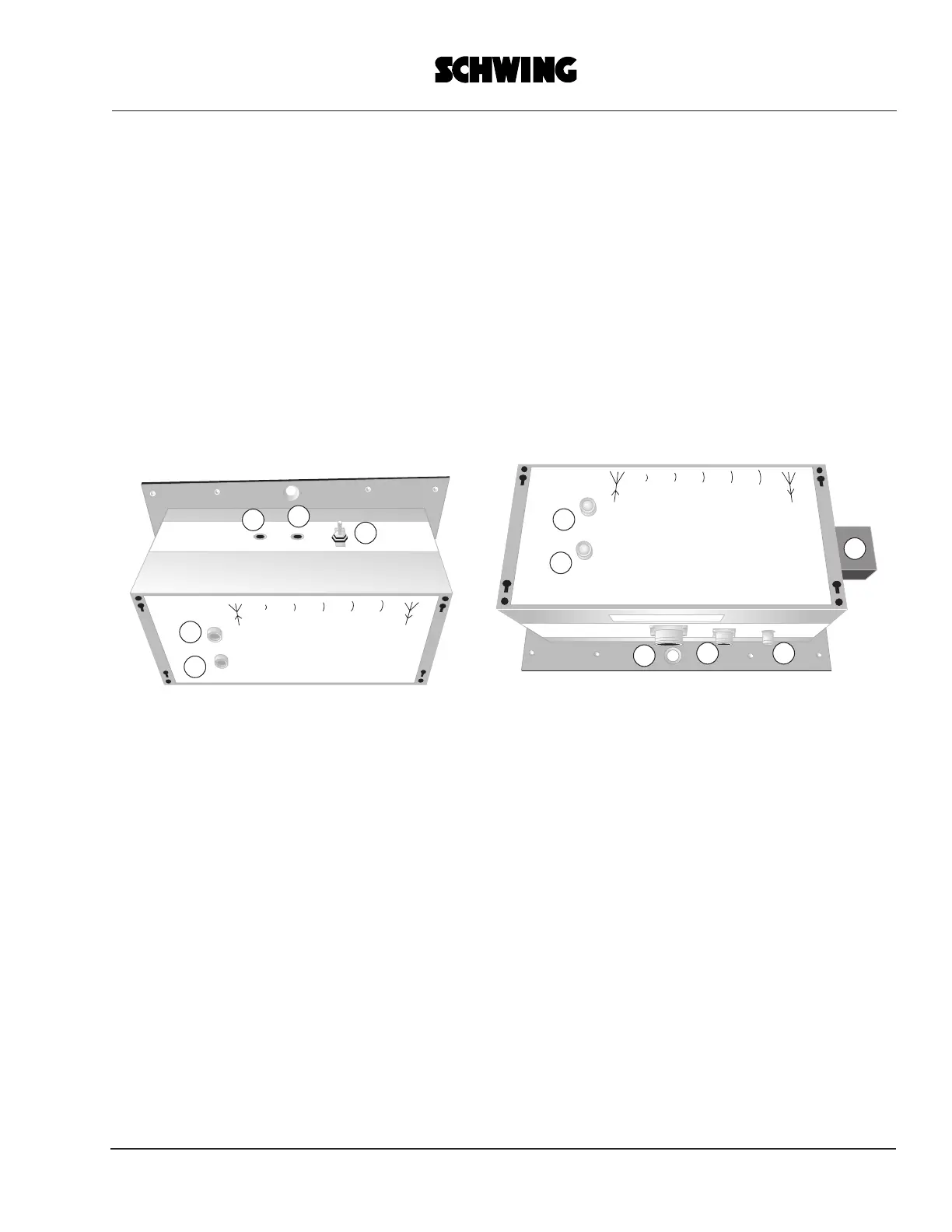

Receiver
1 - Toggle Switch: receiver ON/OFF
2*- 0.4 A fuse (receiver power supply)
3*- 1.6 A fuse (charger power supply)
4 - Two -colour LED: receiver state
GREEN = receiver READY
GREEN, flashing = receiver OPERATING
RED = receiver FAULT
5 - Two-colour LED: Battery charge control
GREEN = battery CORRECTLY inserted
(pole), charging
RED = battery INCORRECTLY inserted
(pole), replace correctly (turn) immediately
OFF = no battery inserted
6 - Plug-in module: transmitter battery charger
7 - Socket for connecting cable to machine control
panel
8 - Antenna socket
9 - Socket: power supply for receiver and charger
* = Not included in the new radio remote control
series
5
4
3
2
1
89
7
6
5
4
