Schwinn 145 - Page 30

30

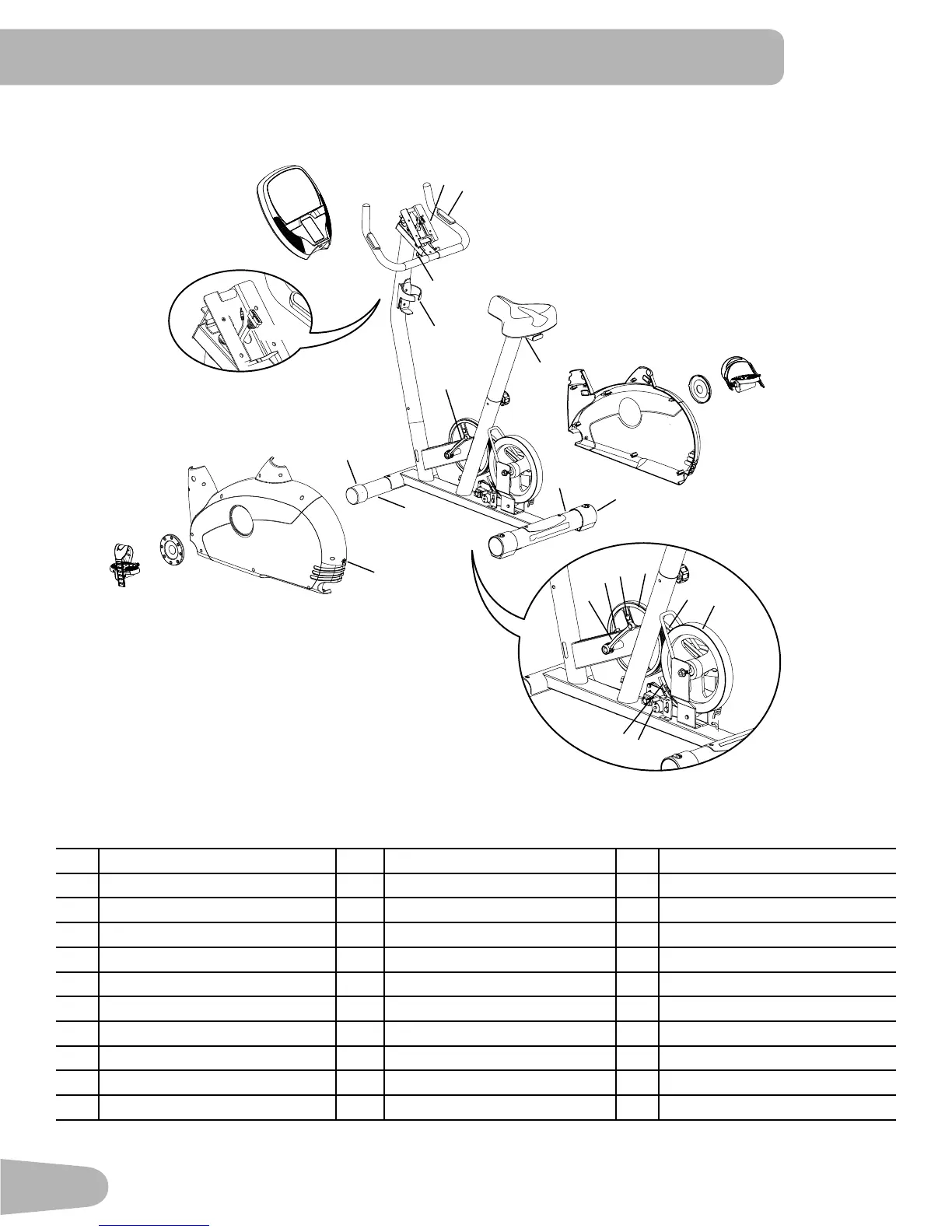

Maintenance Parts
D
A
E
J
CC
H
L
K
M
N
Z
W
X
Y
Q
K
P
V
T
O
B
EE
DD
U
R
S
G
F
C
I
O
AA
BB
FF
A Console L Pedal, Right W AC Adapter Plug
B Console Bracket M Shroud, Right X Shroud, Left
C ConsoleAdjustmentKnob N Stabilizer, Rear Y Pedal, Left
D CHR Sensors O Crank Arm Z Stabilizer, Front
E Handlebar P Speed Sensor AA Transport Wheel
F HandlebarAdjustmentKnob Q Speed Sensor Magnet BB Leveler
G Seat Post R Pulley CC Console Mast
H Seat S Drive Belt DD I/O Cable
I SeatSliderAdjustmentKnob T Flywheel EE HR Cable
J SeatPostAdjustmentKnob U Servo Motor FF Water Bottle Holder
K Center Plate V Brake Magnet
