Schwinn 438 - Attach the Console Mast to the Main Frame

8
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
Parts
N/A Main Frame (Qty 1)
#18 Console Mast (Qty 1)
#25 Shroud Plug (Qty 4)
Hardware
#26 8x15 Socket Cap Head Bolt
(Qty 4)
#43 8.2x15x1.2T Arc Washer
(Qty 4)
Step 3—Attach the Console Mast to the Main Frame
3–1 Securely attach the “zip tie” at
the bottom of the Console Mast
(#18) to the computer cable from
the Main Frame, and pull the
“zip tie” and attached computer
cable through the Console Mast
(#18) from the top.
3–2 Insert the Console Mast (#18)
into the Main Frame, and attach
with four (4) Socket Cap Head
Bolts (#26) and four (4) Arc
Washers (#43).
3–3 Place Shroud Plugs (#25) in the
holes in the Main Frame.

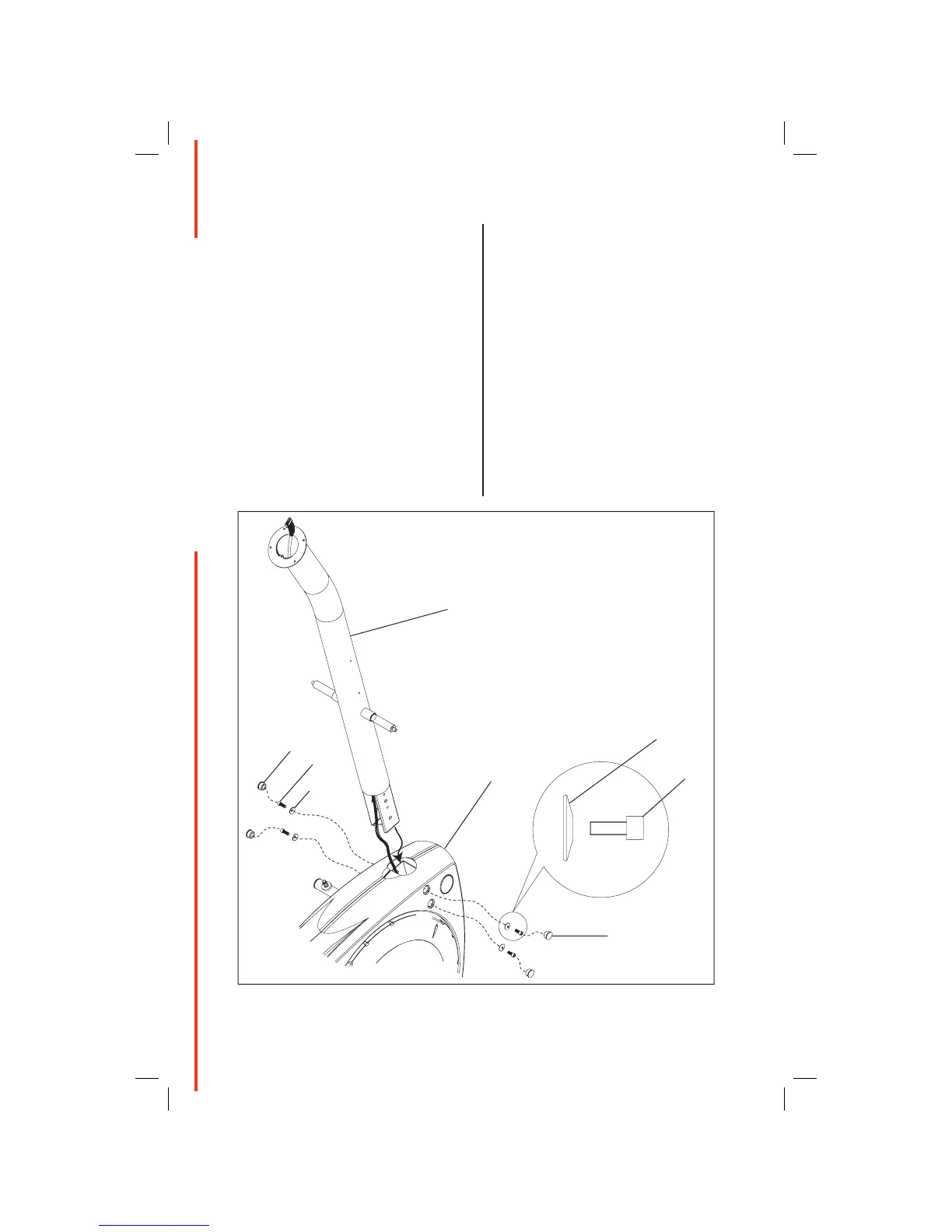

Figure A–3
Main Frame
18
25
26
43
43
26
25
