Schwinn 438 - Attach the Handlebar Junction Cover Set

16
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
Parts
#5 Handlebar Junction Cover Set
(Qty 2)
#8 Left Upper Handlebar (Qty 1)
#16 Right Upper Handlebar
(Qty 1)
Hardware
#11 5x8 Pan Head Screw (Qty 4)
Step 10—Attach the Handlebar Junction Cover Set
10–1 Attach the Handlebar Junction
Cover Set (#5) to the Right
Upper Handlebar (#16) with two
(2) Pan Head Screws (#11) and
the Cap.
10–2 Repeat step 10–1 for the Left
Upper Handlebar (#8).

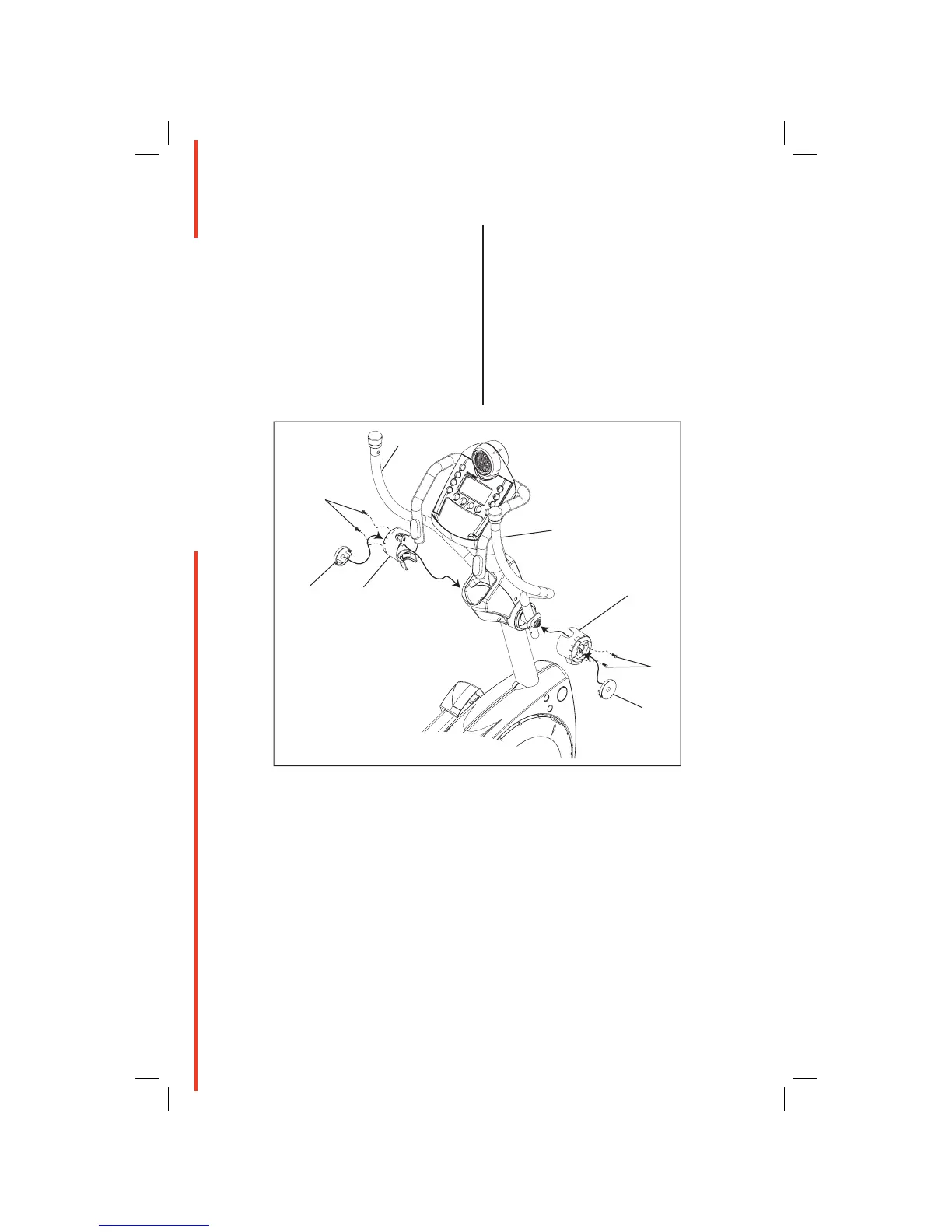

Figure A–10
Cap
5
5
Cap
11
11
8
16
