Schwinn 438 - Attach the Pedal Arm Assemblies

12
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
Parts
#7 Left Pedal Arm Assembly
(Qty 1)
#15 Right Pedal Arm Assembly
(Qty 1)
#17 Sub Pedal Arm Assy (Qty 2)
Hardware
#27 20.5x29x1.5T Wave Washer
(Qty 2)
Step 7—Attach the Pedal Arm Assemblies
7–1 Remove the two (2) 8x1.25x10
Button Head Bolts (#39), a
8x1.25x20 Button Head Bolt
(#40), and a Pedal Arm Bracket
(#42) from the Right Pedal Arm
Assembly (#15).
7–2 Attach the Right Pedal Arm
Assembly (#15) to the Sub
Pedal Arm Assembly (#17) with
a Wave Washer (#27), a Pedal
Arm Bracket (#42), two (2)
8x1.25x10 Button Head Bolts
(#39), and a 8x1.25x20 Button
Head Bolt (#40).
7–3 Repeat steps 7–1 and 7–2 for the
Left Pedal Arm Assembly (#7).

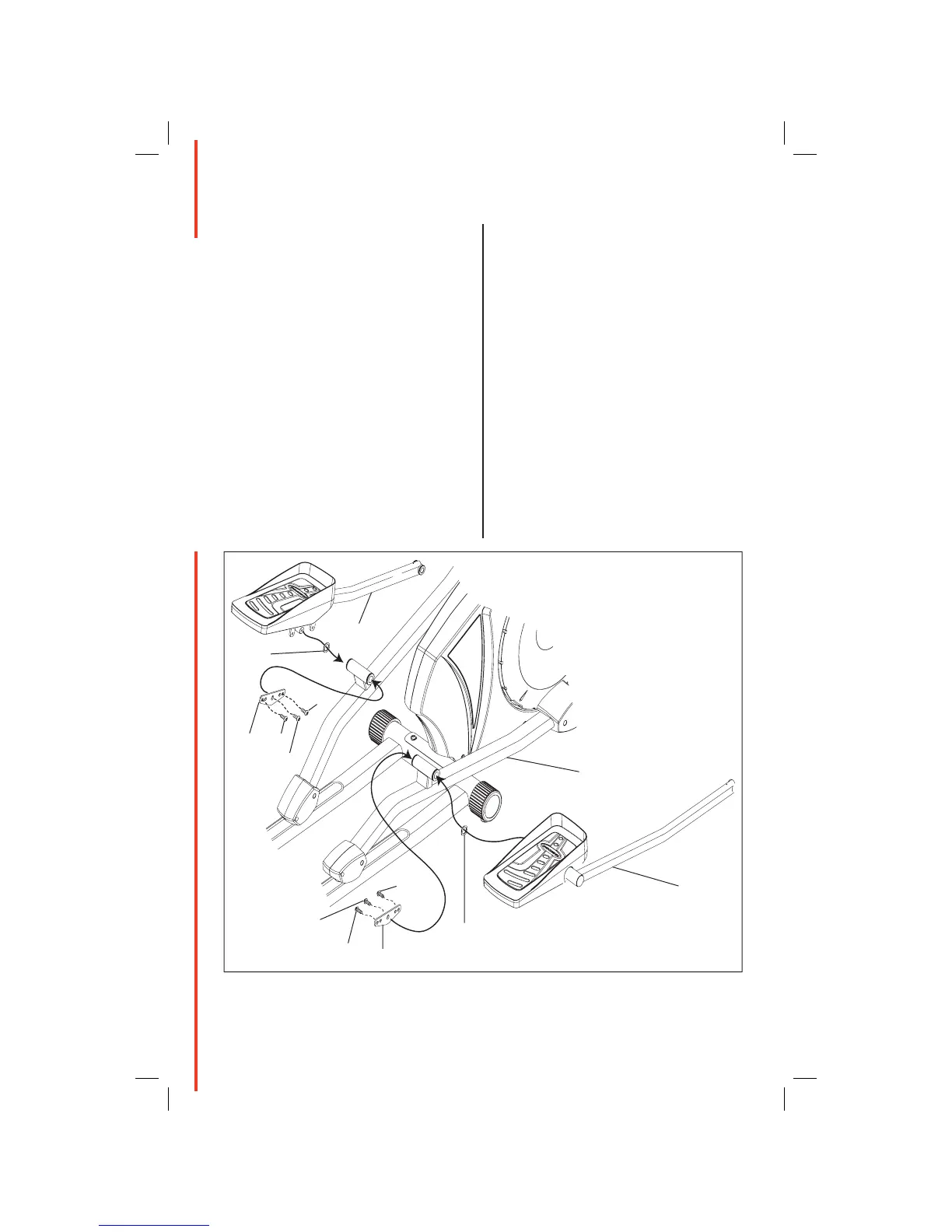

Figure A–7
15
7
17
27
27
42
42
40
39
39
40
39
39
