Schwinn 438 - Page 7

5

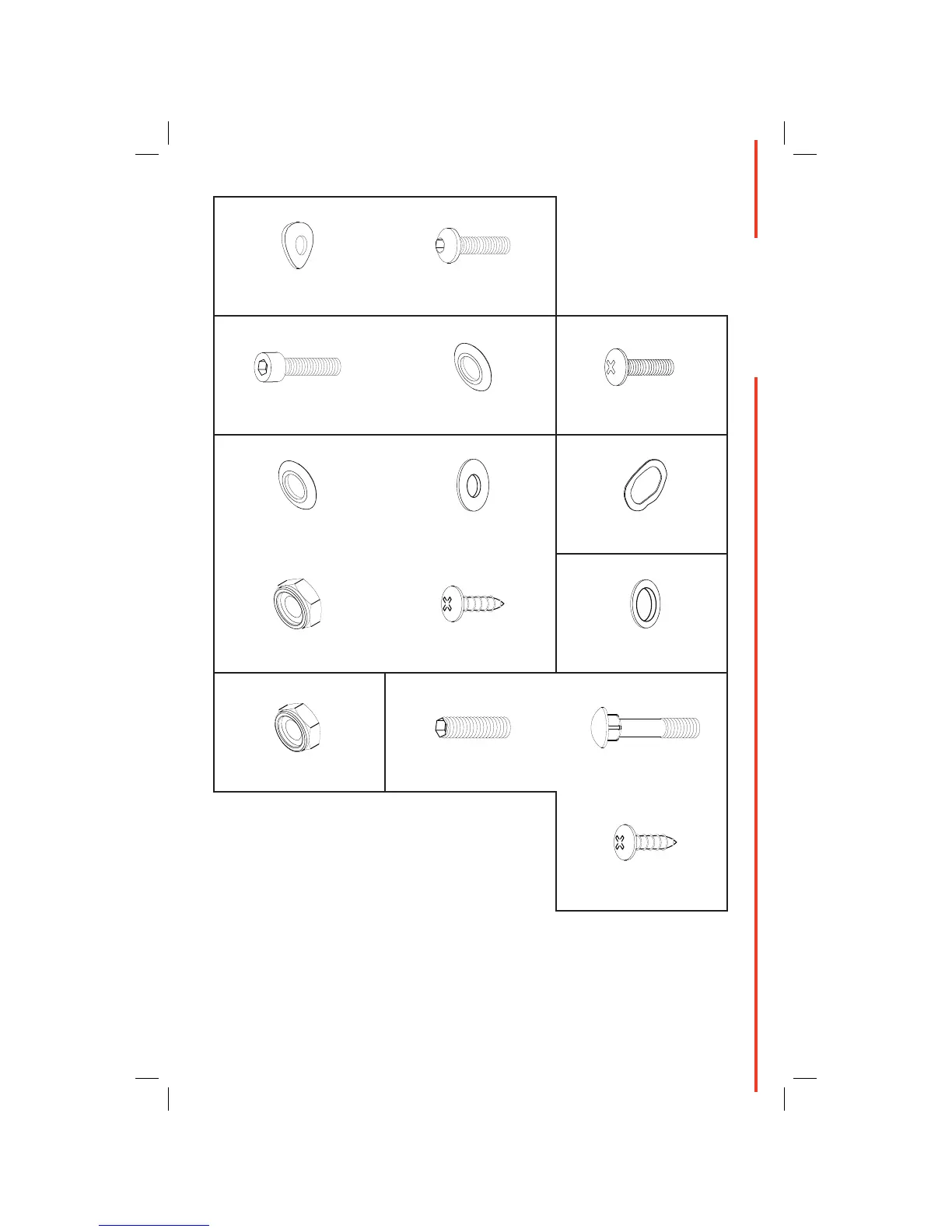

HARDWARE
HARDWARE
Step #1
8.2x18x1.5T Curve Washer
#35 (Qty 6)
8x25 Button Head Bolt #36
(Qty. 6)
Step #3
8x15 Socket Cap Head Bolt
#26 (Qty 4)
8.2x15x1.2T Arc Washer #43
(Qty 4)
Step #4, #5, and #10
5x8 Pan Head Screw #11
(Qty 11)
Step #6
12.5x25x1.0T Arc Washer
#32 (Qty 4)
10.2x25x1.5T Flat Washer
#33 (Qty 2)
Step #7 and #8
20.5x29x1.5T Wave Washer
#27 (Qty 4)
10x1.5 Nylon Hex Nut #34
(Qty 2)
4x16 Self-Tap Round Head
Screw #41 (Qty 2)
Step #8
10.3x35x2T Flat Washer #28
(Qty 2)
Step #8 and #9
Nylon Hex Nut #29 (Qty 4)
Step #9
8x10 Set Screw #30 (Qty 4)
8x50 Carriage Bolt #37
(Qty 2)
4x16 Self-Tapping Round
Head Screw #41 (Qty 4)
