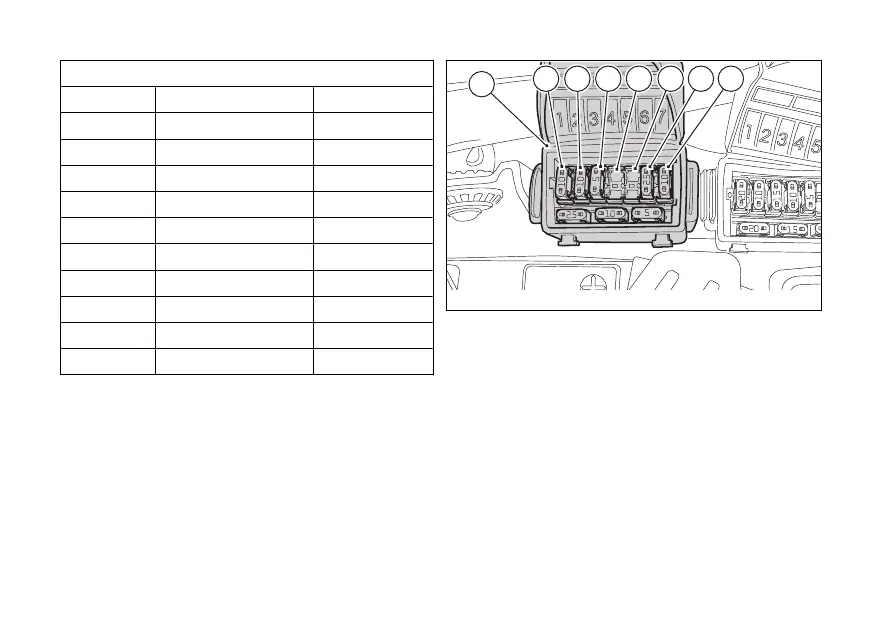

Scrambler Ducati Nightshift - Page 223

Fuse box (B) key
Pos El. item Rat.
1 ECU / DASHBOARD 10 A
2 ACCESSORIES 10 A
3 IMU 5 A
4 – –
5 – –
6 ABS ECU 25 A
7 ABS ECU 10 A
– Spare 25 A
– Spare 10 A
– Spare 5 A
A
1 2 3 4 5 6 7
Fig 187
