Scrambler Ducati Nightshift - Page 224

Fuse box (A) key
Pos El. item Rat.
1 MAIN RELAY 20 A
2 FUEL PUMP RELAY 10 A
3 DASHBOARD 15 A
4 ACCESSORIES 10 A
5 STARTER RELAY 5 A
6 – –
7 – –
– Spare 20 A
– Spare 15 A
– Spare 10 A
B
1 2 3 4 5 6 7

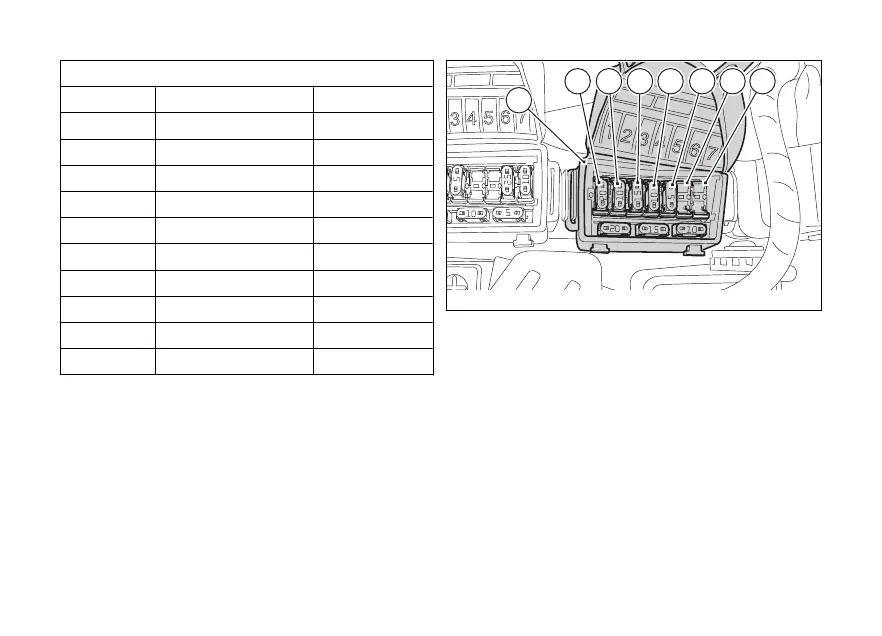

Fig 188
