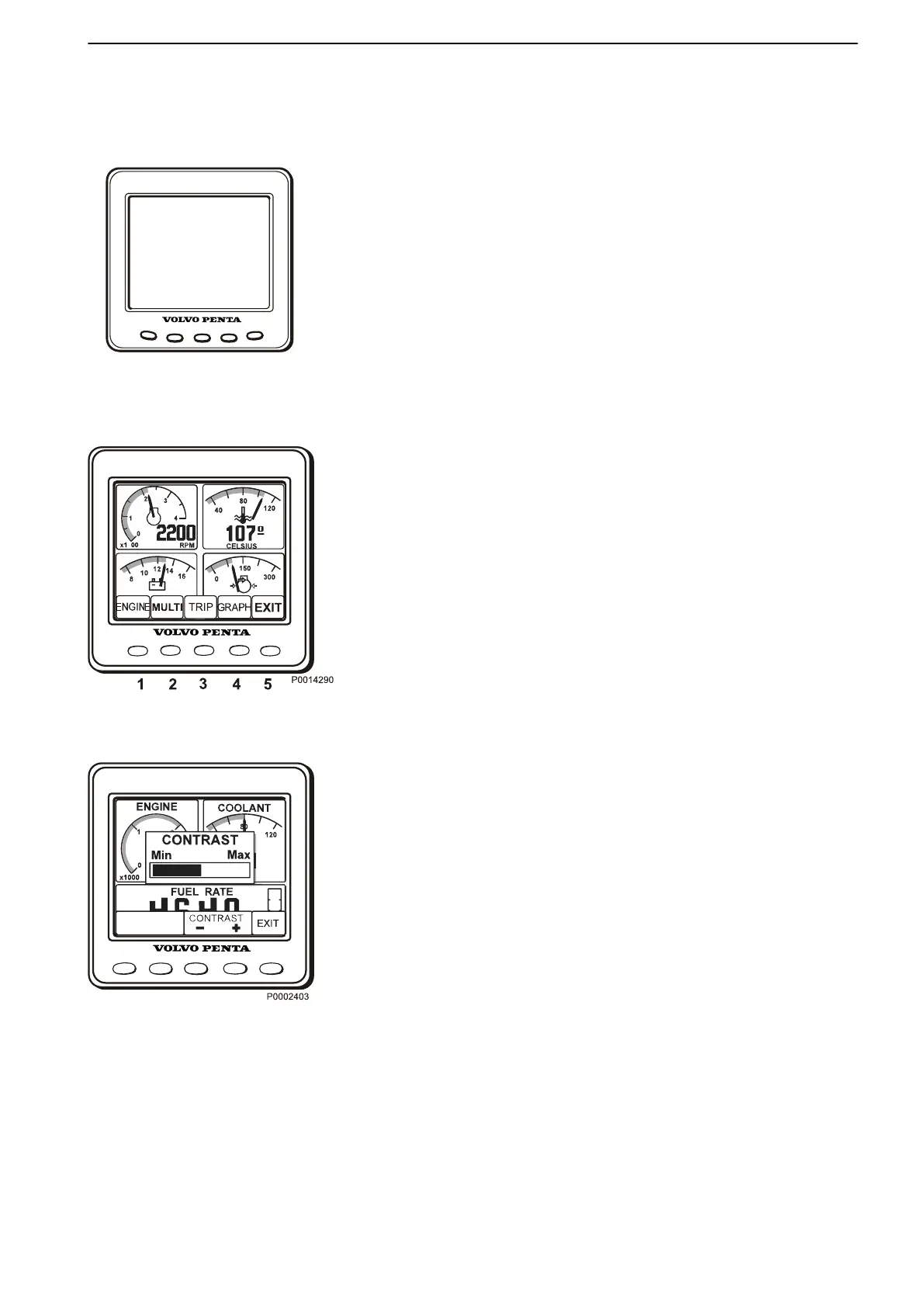

DU (Display Unit)
The DU is an computerized instrument panel which
shows engine working values
on an LCD screen. In the
display it is possible to show multiple windows with dif-
ferent information, i. g. engine rpm, coolant tempera-
ture, fuel consumption and fault messages.
At start up, the display performs a self-test. If an con-
stant signal is heard, the system has discovered a mal-
function. The display will work but may act in an unex-
pected way.
The DU is connected to the engine interface connector.
Display modes
Press any of button 1–4 to view the function menu for
the buttons, apperaring in the lower part of the display.
To leave the menu, wait a few seconds or press button
5 (EXIT).
1 Engine
2 Multi
3 Trip
4 Graph
5 Exit
Contrast
In the display modes Engine, Trip and Graph, it is pos-
sible to adjust the contrast.
Press button 5 outside the menu and then + (button 4)
or – (button 3) to adjust the contrast.
Instruments and Controls
